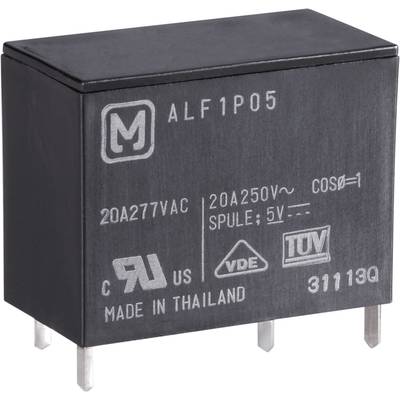

Panasonic ALF1P12 PCB relay 12 V DC 25 A 1 maker 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€
Technical specifications
- Tracking distance min. 9.5 mm / air gap min. 8 mm
- Withstand voltage between contact and coil min. 10000 V
- Air humidity 5 up to 85 % *±10%
- Type
ALF1P12
- Coil nominal voltage
12 V DC
- Min. pick-up voltage
8.4 V DC
- Max. pick-up voltage
13.2 V DC
- Control mode
monostable, 1 coil
- Resistance (coil)
160 Ω
- Contact type
1 maker
- Contact material
Silver alloy
- Switching voltage (max.)
250 V AC
- Switching current (max.)
25 A
- Max. switching capacity
6250 VA
- Creepage distance (coil/clips)
9.5 mm
- Connection
Solder pins
- Durability
2 x 106
- Min. temperature
-40 °C
- Max. temperature
+60 °C
- Length
30.1 mm
- Width
15.7 mm
- Height
23.3 mm
- Dim
(L x W x H) 30.1 x 15.7 x 23.3 mm
- Content
1 pc(s)
- RoHS-compliant
- Type
monostabile
- Power consumption
900 mW
- Nominal voltage (details)
12 V DC
- Switching capacity
6250 VA
- Dielectric strength
(Contact/coil) 10000 V
- Type
ALF1P12
- Ambient temperature
-40 - +60 °C
- Operating voltage
13.2 V DC
- Product type
PCB relay
Documents & Downloads
Datasheet
Datasheet 505003 Panasonic ALF1P12 PCB relay 12 V DC 25 A 1 maker 1 pc(s)
Description
Power relay with high electrical strength and high switch-on current capacity. Applications: Household appliances, brown goods.
Hints
Approvals TÜV, VDE, UL, CSA, BEAB
