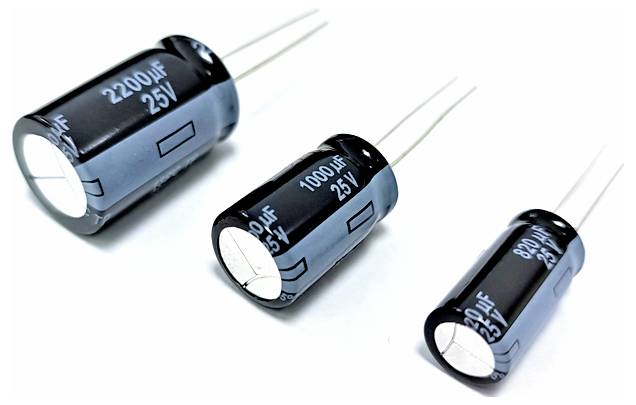

Panasonic Electrolytic capacitor Radial lead 1.000 µF 25 V 20 % 1 pc(s)
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
1.000 µF
Nominal voltage
25 V
Tolerance ±
20 %
Datasheet (PDF)
Highlights & Details
Panasonic Elko 1000uF 25V 12,5X20mm RM5 0 mm
Our service for you
Technical specifications
- Series TP-A
- Qualification: AEC-Q200
- Design_1: Radial
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Properties_1: • In aluminum beaker, miniaturized
- • Radial connections
- • Extended temperature range: Up to +135°C.
- • Life: at 125°C 2000...5000 hours, at 135°C 1000...2000 hours
- Wire diameter 0.6 mm.
- Pitch_1:5 mm
- Capacity 1,000 µF
- Capacity_1: 1,000
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.14
- Ripple current 1,490 mA
- Equivalent Series Resistance (ESR): 38 mOhm
- Nominal voltage DC 25 V
- Lifetime_1: 2,000 h
- Product type
Electrolytic capacitor
- Type
Radial lead
- Capacity (elec.)
1.000 µF
- Nominal voltage
25 V
- Tolerance ±
20 %
- Height
20.0 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
EEUTP1E102
- Operating temperature (max.)
135 °C
- Operating temperature (min.)
40 °C
Documents & Downloads
Datasheet
Datasheet 3466077 Panasonic Electrolytic capacitor Radial lead 1.000 µF 25 V 20 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3466077 Panasonic Electrolytic capacitor Radial lead 1.000 µF 25 V 20 % 1 pc(s)
Description
Alu Elko series TA_a, TP_a
