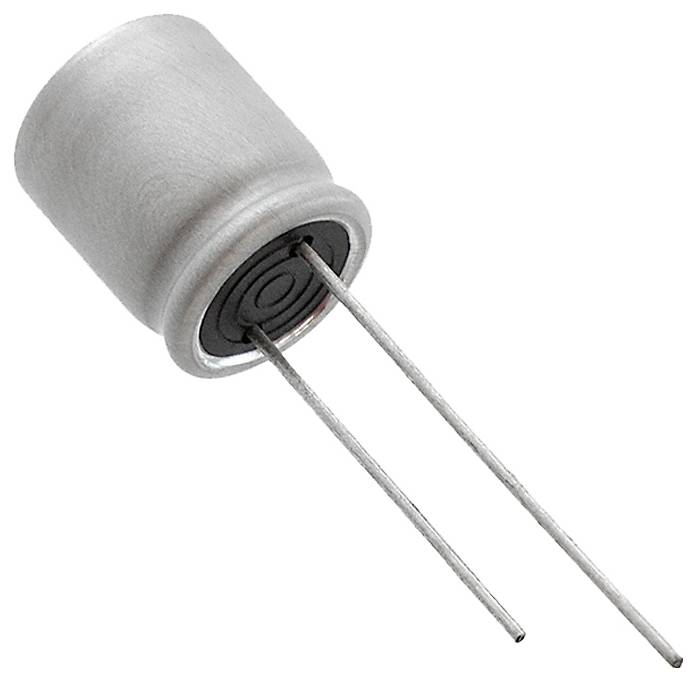

Panasonic Electrolytic capacitor Radial lead 270 µF 10 V 20 % (Ø x H) 10 mm x 8.0 mm 1 pc(s)
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
270 µF
Nominal voltage
10 V
Dim
(Ø x H) 10 mm x 8.0 mm
Datasheet (PDF)
Highlights & Details
Panasonic OS-con SEP 270uF 11V 10x8mm
Our service for you
Technical specifications
- Series SEP
- Designation OS-CON
- Design_1: Radial
- Technology: Polymer aluminum solid-material capacitor
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: High-conductive polymers used in OS-CON achieve very good noise suppression and ideal frequency characteristics
- These capacitors have a long life, are highly reliable and highly heat resistant
- Long life: 3000 h (at 105°C)
- Halogen-free
- Pitch_1:5 mm
- Capacity 270 µF
- Capacity_1: 270
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.12
- Ripple current 0.54 mA
- Equivalent Series Resistance (ESR): 25 mOhm
- Nominal voltage DC 10 V
- Lifetime_1: 3,000 h
- Product type
Electrolytic capacitor
- Type
Radial lead
- Dim
(Ø x H) 10 mm x 8.0 mm
- Capacity (elec.)
270 µF
- Nominal voltage
10 V
- Tolerance ±
20 %
- Height
8.0 mm
- (Ø)
10 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
10SEP270M+T
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3465818 Panasonic Electrolytic capacitor Radial lead 270 µF 10 V 20 % (Ø x H) 10 mm x 8.0 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3465818 Panasonic Electrolytic capacitor Radial lead 270 µF 10 V 20 % (Ø x H) 10 mm x 8.0 mm 1 pc(s)
Description
Panasonic OSCON radial SEP/SEPC/SEPF ser
