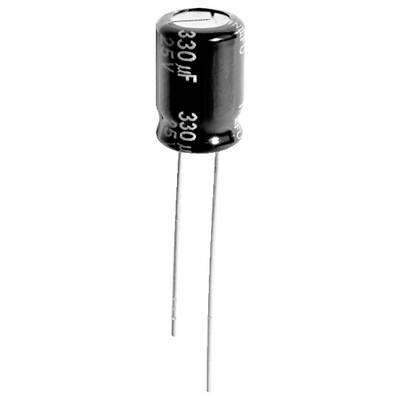

Panasonic Electrolytic capacitor Radial lead 330 µF 35 V 20 % (Ø x H) 10 mm x 12.5 mm 1 pc(s)
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
330 µF
Nominal voltage
35 V
Dim
(Ø x H) 10 mm x 12.5 mm
Datasheet (PDF)
Highlights & Details
Panasonic Elko 330uF 35V 10x12.5mm RM5 0 mm
Our service for you
Technical specifications
- Series FR-A
- Design_1: Radial
- Mounting type_1: THT
- Delivery form_1: Loose
- Connections_1: 2-pin
- Characteristics_1: Endurance: 5000h to 10000h (@105°C)
- Low ESR
- Pitch_1:5.0 mm
- Capacity 330 µF
- Capacity_1: 330
- Unit of capacity: µF
- Capacity Tolerance 20%
- Ripple current 1,330 mA
- Equivalent Series Resistance (ESR): 0.043 ohms
- Nominal voltage DC 35 V
- Lifetime_1: 5,000 h
- Capacitor type low ESR
- Product type
Electrolytic capacitor
- Type
Radial lead
- Dim
(Ø x H) 10 mm x 12.5 mm
- Capacity (elec.)
330 µF
- Nominal voltage
35 V
- Tolerance ±
20 %
- Height
12.5 mm
- (Ø)
10 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
EEUFR1V331U
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
40 °C
Documents & Downloads
Datasheet
Datasheet 3463384 Panasonic Electrolytic capacitor Radial lead 330 µF 35 V 20 % (Ø x H) 10 mm x 12.5 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463384 Panasonic Electrolytic capacitor Radial lead 330 µF 35 V 20 % (Ø x H) 10 mm x 12.5 mm 1 pc(s)
Description
Alu Elko series FR
