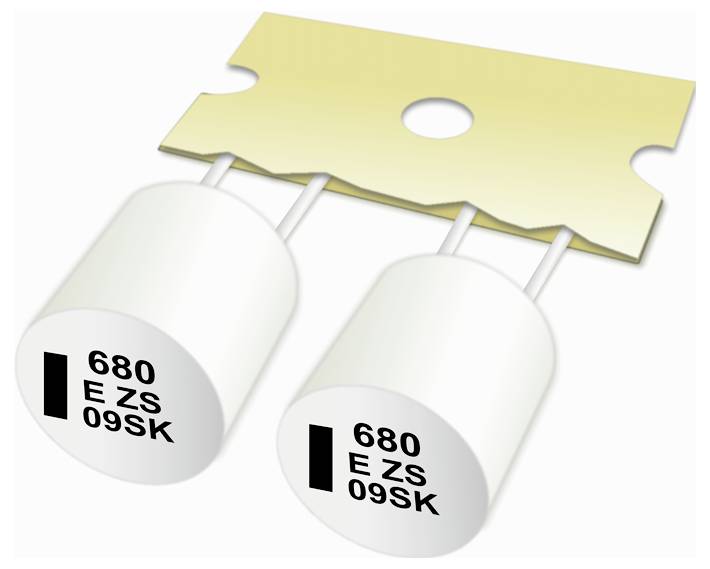

Panasonic Electrolytic capacitor Radial lead 680 µF 35 V 20 % 1 pc(s)
Part number:
Item no:
Product type
Electrolytic capacitor
Type
Radial lead
Capacity (elec.)
680 µF
Nominal voltage
35 V
Tolerance ±
20 %
Datasheet (PDF)
Highlights & Details
Panasonic a-ZSU hybrid El 680uF 35V 10x15.7mm RM5
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series ZSU-A
- Qualification: AEC-Q200
- Design_1: Radial
- Technology: Polymer hybrid aluminum electrolytic capacitor
- Mounting type_1: THT
- Delivery form_1: Taped
- Connections_1: 2-pin
- Characteristics_1: Conductive polymer hybrid aluminum electrolytic capacitors
- Radial version
- Capacitance tolerance ±20
- Life: 4000h @125°C
- High-temperature
- AEC-Q200 specified
- Taped goods
- Pitch_1:5.0 mm
- Capacity 680 µF
- Capacity_1: 680
- Unit of capacity: µF
- Loss factor tan δ: 0.12
- Nominal voltage DC 35 V
- Lifetime_1: 4,000 h
- Product type
Electrolytic capacitor
- Type
Radial lead
- Capacity (elec.)
680 µF
- Nominal voltage
35 V
- Tolerance ±
20 %
- Height
15.7 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
EEHAZSV681UB
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-55 °C
- Certification marks
AEC-Q200
Documents & Downloads
Datasheet
Datasheet 3463185 Panasonic Electrolytic capacitor Radial lead 680 µF 35 V 20 % 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3463185 Panasonic Electrolytic capacitor Radial lead 680 µF 35 V 20 % 1 pc(s)
Description
Panasonic series: ZF hybrid radial
