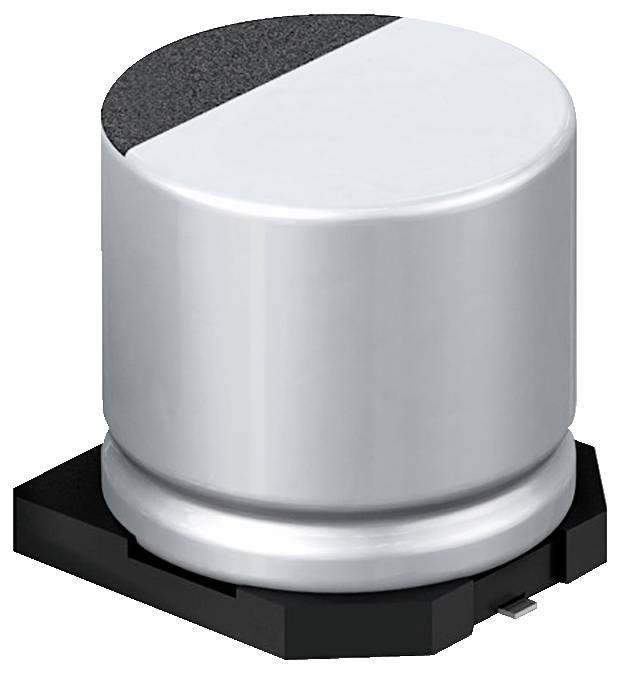

Panasonic Electrolytic capacitor SMD 10 µF 35 V 20 % (Ø x H) 5 mm x 5.8 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Electrolytic capacitor
Type
SMD
Capacity (elec.)
10 µF
Nominal voltage
35 V
Datasheet (PDF)
Highlights & Details
Panasonic SMD electrolytic capacitor 10uF 35V 5x5.8mm
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series HC
- Qualification: AEC-Q200
- Design_1: C
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: SMD
- Delivery form_1: Taped
- Capacity 10 µF
- Capacity_1: 10
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.14
- Ripple current 28 mA
- Nominal voltage DC 35 V
- Lifetime_1: 3,000 h
- Packaging type
Tape
- Product type
Electrolytic capacitor
- Type
SMD
- Dim
(Ø x H) 5 mm x 5.8 mm
- Capacity (elec.)
10 µF
- Nominal voltage
35 V
- Tolerance ±
20 %
- Height
5.8 mm
- (Ø)
5 mm
- Content
1 pc(s)
- Material
Aluminium
- Width
5 mm
- Length
5.8 mm
- RoHS-compliant
Yes
- Type
EEEHC1V100R
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3465919 Panasonic Electrolytic capacitor SMD 10 µF 35 V 20 % (Ø x H) 5 mm x 5.8 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3465919 Panasonic Electrolytic capacitor SMD 10 µF 35 V 20 % (Ø x H) 5 mm x 5.8 mm 1 pc(s) Tape
Description
Series HC/HD/HD(a) SMD Alu Elko
