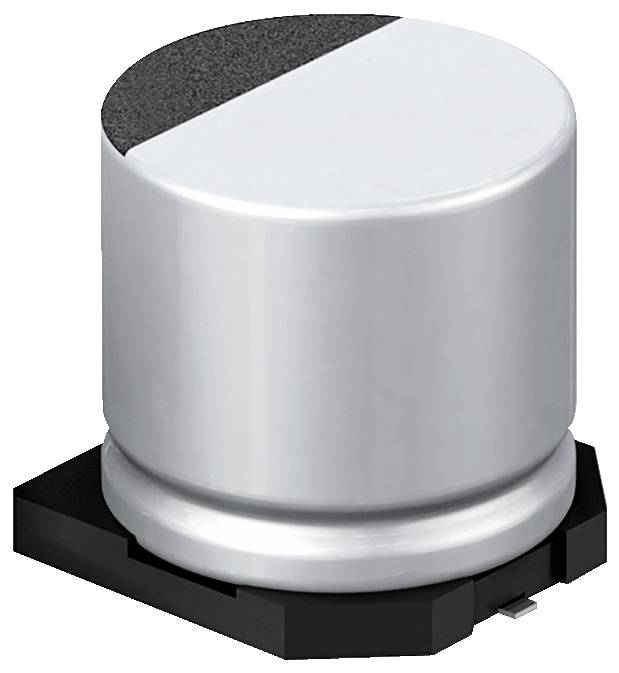

Panasonic Electrolytic capacitor SMD 100 µF 25 V 20 % (Ø x H) 8 mm x 6.2 mm 1 pc(s) #####Tape and Reel
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
Electrolytic capacitor
Type
SMD
Capacity (elec.)
100 µF
Nominal voltage
25 V
Datasheet (PDF)
Highlights & Details
Panasonic SMD electrolytic capacitor 100uF 25V 8x6.2mm
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series: HB (A)
- Qualification: AEC-Q200
- Type_1: (E)
- Technology: Aluminium electrolytic capacitor
- Mounting type_1: SMD
- Delivery form_1: Taped
- Properties_1: • High Temperature
- • Endurance: 105°C 2000h
- • Lead-free reflow (end A_)
- Capacity 100 µF
- Capacity_1: 100
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.16
- Ripple current 100 mA
- Nominal voltage DC 25 V
- Lifetime_1: 2,000 h
- Packaging type
#####Tape and Reel
- Product type
Electrolytic capacitor
- Type
SMD
- Dim
(Ø x H) 8 mm x 6.2 mm
- Capacity (elec.)
100 µF
- Nominal voltage
25 V
- Tolerance ±
20 %
- Height
6.2 mm
- (Ø)
8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
EEEHBE101UAP
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3465915 Panasonic Electrolytic capacitor SMD 100 µF 25 V 20 % (Ø x H) 8 mm x 6.2 mm 1 pc(s) #####Tape and Reel
User & Safety Instructions
User & Safety Instructions 3465915 Panasonic Electrolytic capacitor SMD 100 µF 25 V 20 % (Ø x H) 8 mm x 6.2 mm 1 pc(s) #####Tape and Reel
Description
Series HB/HB(a) SMD Alu Elko
