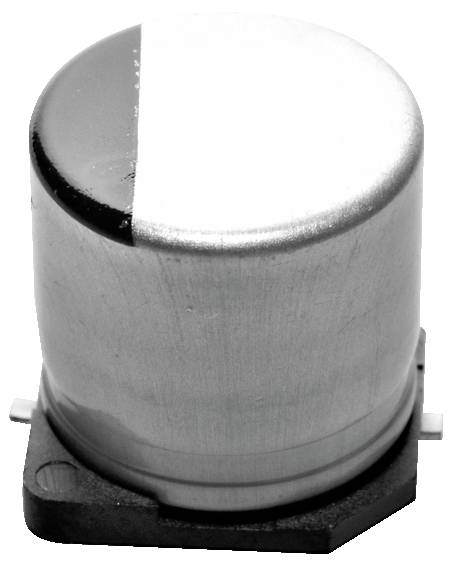

Panasonic Electrolytic capacitor SMD 150 µF 25 V 20 % (Ø x H) 8 mm x 10.2 mm 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Electrolytic capacitor
Type
SMD
Capacity (elec.)
150 µF
Nominal voltage
25 V
Datasheet (PDF)
Highlights & Details
Panasonic hybrid SMD electrolytic capacitor 150µF 25V 8x10.2mm
Our service for you
Technical specifications
- Series ZA
- Qualification: AEC-Q200
- Design_1: F
- Technology: Polymer hybrid aluminum electrolytic capacitor
- Mounting type_1: SMD
- Delivery form_1: Taped
- Characteristics_1: Conductive polymer-hybrid aluminum electrolytic capacitor
- Stamina: 10000h at 155°C.
- High-temperature lead-free reflow
- Low ESR and high ripple current
- Complies with AEC-Q200
- Capacity 150 µF
- Capacity_1: 150
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.14
- Ripple current 2,300 mA
- Equivalent Series Resistance (ESR): 0.027 ohms
- Nominal voltage DC 25 V
- Lifetime_1: 10,000 h
- Capacitor type low ESR
- Packaging type
Tape
- Product type
Electrolytic capacitor
- Type
SMD
- Dim
(Ø x H) 8 mm x 10.2 mm
- Capacity (elec.)
150 µF
- Nominal voltage
25 V
- Tolerance ±
20 %
- Height
10.2 mm
- (Ø)
8 mm
- Content
1 pc(s)
- Material
Polymer
- Width
8 mm
- Length
10.2 mm
- RoHS-compliant
Yes
- Max. temperature
155 °C
- Type
EEHZA1E151P
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
- Certification marks
AEC-Q200 compliant
Documents & Downloads
Datasheet
Datasheet 3463186 Panasonic Electrolytic capacitor SMD 150 µF 25 V 20 % (Ø x H) 8 mm x 10.2 mm 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3463186 Panasonic Electrolytic capacitor SMD 150 µF 25 V 20 % (Ø x H) 8 mm x 10.2 mm 1 pc(s) Tape
Description
Panasonic SMD hybrid capacitors series
