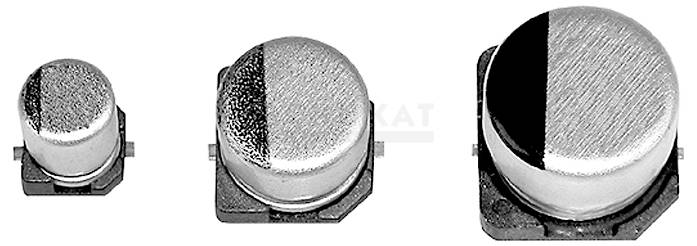

Panasonic Electrolytic capacitor SMD 270 µF 16 V 20 % 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
Electrolytic capacitor
Type
SMD
Capacity (elec.)
270 µF
Nominal voltage
16 V
Datasheet (PDF)
Highlights & Details
Panasonic OS-CON SVPG 270uF 16V 6.7.9mm
Our service for you
Technical specifications
- Series SVPG
- Designation OS-CON
- Design_1:C10
- Applications: Noise suppression, backup and bypass capacitors for digital devices, mobile phones, PCs, household and automotive electrical equipment , industrial equipment, etc.
- Technology: Polymer aluminum solid-material capacitor
- Mounting type_1: SMD
- Delivery form_1: Taped
- Characteristics_1: Endurance: 105°C 5000h
- The highly conductive polymers used in OS-CON achieve excellent noise suppression and ideal frequency characteristics
- These capacitors have a long life, are highly reliable and highly heat resistant
- Capacity 270 µF
- Capacity_1: 270
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.12
- Ripple current 5,800 mA
- Equivalent Series Resistance (ESR): 8 mOhm
- Nominal voltage DC 16 V
- Lifetime_1: 5,000 h
- Packaging type
Tape
- Product type
Electrolytic capacitor
- Type
SMD
- Capacity (elec.)
270 µF
- Nominal voltage
16 V
- Tolerance ±
20 %
- Height
7.9 mm
- Content
1 pc(s)
- Material
Polymer
- RoHS-compliant
Yes
- Max. temperature
105 °C
- Type
16SVPG270MX
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-55 °C
Documents & Downloads
Datasheet
Datasheet 3463107 Panasonic Electrolytic capacitor SMD 270 µF 16 V 20 % 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3463107 Panasonic Electrolytic capacitor SMD 270 µF 16 V 20 % 1 pc(s) Tape
Description
OS-Con SVPG series
