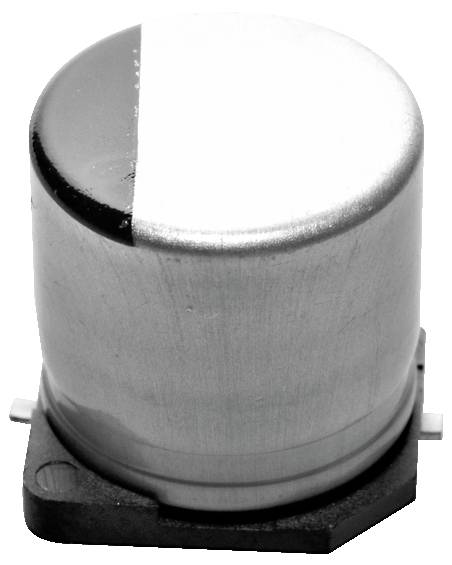

Panasonic Electrolytic capacitor SMD 470 µF 35 V 20 % (Ø x H) 10 mm x 10.3 mm 1 pc(s) #####Tape and Reel
Part number:
Item no:
Packaging type
#####Tape and Reel
Product type
Electrolytic capacitor
Type
SMD
Capacity (elec.)
470 µF
Nominal voltage
35 V
Datasheet (PDF)
Highlights & Details
Panasonic hybrid SMD electrolytic capacitor 470µF 35V 10×10.5mm V
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series zl
- Qualification: AEC-Q200
- Design_1: G
- Technology: Polymer hybrid aluminum electrolytic capacitor
- Mounting type_1: SMD
- Delivery form_1: Taped
- Properties_1: • Low ESR and high ripple current
- • Nominal voltage up to 35V
- • Life: 4,000 h at 125°C.
- • With the ending "V": Vibration-proof design
- • Smaller than the ZC series at the same capacity
- Capacity 470 µF
- Capacity_1: 470
- Unit of capacity: µF
- Capacity Tolerance 20%
- Loss factor tan δ: 0.12
- Ripple current 2,000 mA
- Equivalent Series Resistance (ESR): 0.016 ohms
- Nominal voltage DC 35 V
- Lifetime_1: 4,000 h
- Capacitor type low ESR
- Packaging type
#####Tape and Reel
- Product type
Electrolytic capacitor
- Type
SMD
- Dim
(Ø x H) 10 mm x 10.3 mm
- Capacity (elec.)
470 µF
- Nominal voltage
35 V
- Tolerance ±
20 %
- Height
10.3 mm
- (Ø)
10 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
EEHZL1V471V
- Operating temperature (max.)
135 °C
- Operating temperature (min.)
55 °C
Documents & Downloads
Datasheet
Datasheet 3463221 Panasonic Electrolytic capacitor SMD 470 µF 35 V 20 % (Ø x H) 10 mm x 10.3 mm 1 pc(s) #####Tape and Reel
User & Safety Instructions
User & Safety Instructions 3463221 Panasonic Electrolytic capacitor SMD 470 µF 35 V 20 % (Ø x H) 10 mm x 10.3 mm 1 pc(s) #####Tape and Reel
Description
Panasonic SMD hybrid capacitors series
