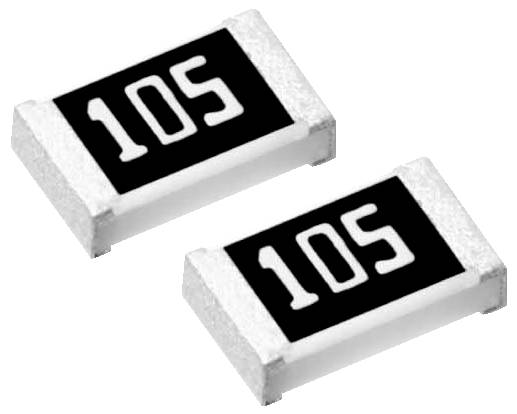

Panasonic ERA6AEB304V SMD resistor 300 kΩ SMD 0805 0.125 W 0.1 % 10 ppm/°C 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
0805
Resistance
300 kΩ
Power rating
0.125 W
Datasheet (PDF)
Highlights & Details
Panasonic SMD thin film 0805 0.125W 0.1% 300K
Our service for you
Technical specifications
- ESD Packaging: No ESD
- Series ERA6A
- Design 0805
- Delivery type: Belt
- Solder-able 270°C / 10s
- Resistance tolerance: ±0.1 %
- Rated output: 0.125 W
- Load reduction: Linear from 85°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 100 V DC
- Max. OPERATING VOLTAGE (AC) 100 V AC
- Max voltage 200 V
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
0805
- Resistance
300 kΩ
- Power rating
0.125 W
- Tolerance ±
0.1 %
- Temperature coefficient
10 ppm/°C
- Length
2 mm
- Width
1.25 mm
- Height
0.5 mm
- Content
1 pc(s)
- Dim
(L x W x H) 2 x 1.25 x 0.5 mm
- RoHS-compliant
Yes
- Type
ERA6AEB304V
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
- Certification marks
IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
Documents & Downloads
Datasheet
Datasheet 3466098 Panasonic ERA6AEB304V SMD resistor 300 kΩ SMD 0805 0.125 W 0.1 % 10 ppm/°C 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3466098 Panasonic ERA6AEB304V SMD resistor 300 kΩ SMD 0805 0.125 W 0.1 % 10 ppm/°C 1 pc(s) Tape
Description
Panasonic thin film resistors series
This text is machine translated.
This text is machine translated.
Features
- • Low temperature coefficient (TC = 25ppm/°C)
- • Low tolerance of 0.1%
- • High reliability: Stable at high temperature and humidity
- • COMPLIES WITH IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
- • AEC-Q200 qualified
