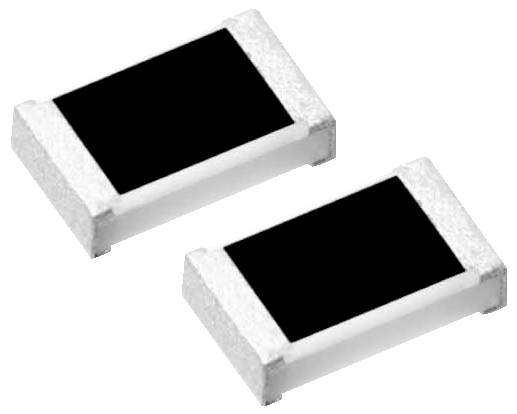

Panasonic ERA8AEB623V SMD resistor 62 kΩ SMD 1206 0.25 W 0.1 % 25 ppm/°C 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
1206
Resistance
62 kΩ
Power rating
0.25 W
Datasheet (PDF)
Highlights & Details
Panasonic SMD thin film 1206 0.1 W 0.1% 62K
Our service for you
Technical specifications
- Series RA8A
- Design 1206
- Delivery type: Belt
- Solder-able 270°C / 10s
- Resistance tolerance: ±0.1 %
- Rated output: 0.25 W
- Load reduction: Linear from 85°C to 155°C (0W)
- Max. OPERATING VOLTAGE (DC) 150 V DC
- Max. OPERATING VOLTAGE (AC) 150 V AC
- Max voltage 300 V
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
1206
- Resistance
62 kΩ
- Power rating
0.25 W
- Tolerance ±
0.1 %
- Temperature coefficient
25 ppm/°C
- Length
3.2 mm
- Width
1.6 mm
- Height
0.6 mm
- Content
1 pc(s)
- Dim
(L x W x H) 3.2 x 1.6 x 0.6 mm
- RoHS-compliant
Yes
- Type
ERA8AEB623V
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
- Certification marks
IEC 60115-8, JIS C 5201-8, JEITA RC-2133C
Documents & Downloads
Datasheet
Datasheet 3466103 Panasonic ERA8AEB623V SMD resistor 62 kΩ SMD 1206 0.25 W 0.1 % 25 ppm/°C 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3466103 Panasonic ERA8AEB623V SMD resistor 62 kΩ SMD 1206 0.25 W 0.1 % 25 ppm/°C 1 pc(s) Tape
Description
Panasonic thin film resistors series
This text is machine translated.
This text is machine translated.
Features
- • Low temperature coefficient (TC = 25ppm/°C)
- • Low tolerance of 0.1%
- • High reliability: Stable at high temperature and humidity
- • COMPLIES WITH IEC 60115-8, JIS C 5201-8, EIAJ RC-2133B
- • AEC-Q200 qualified
