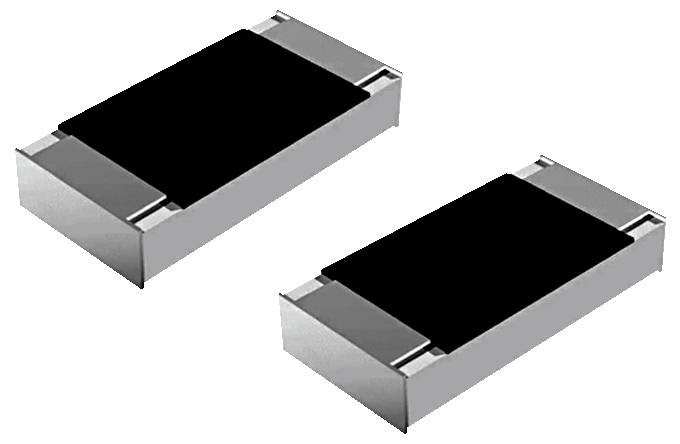

Panasonic ERJ1GNF33R0C SMD resistor 33 Ω SMD 0201 0.05 W 1 % 200 ppm/°C 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
0201
Resistance
33 Ω
Power rating
0.05 W
Datasheet (PDF)
Highlights & Details
Panasonic SMD thick film 0201 50mW 1% 33R
Our service for you
Technical specifications
- Series: ERJ1GN
- Design 0201
- Delivery type: Belt
- Weight: 0.00015 g
- Resistance tolerance: ±1 %
- Rated output: 0.05 W
- Max. OPERATING VOLTAGE (DC) 25 V DC
- Max. OPERATING VOLTAGE (AC) 25 V AC
- Max voltage 50 V
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
0201
- Resistance
33 Ω
- Power rating
0.05 W
- Tolerance ±
1 %
- Temperature coefficient
200 ppm/°C
- Length
0.6 mm
- Width
0.3 mm
- Height
0.23 mm
- Content
1 pc(s)
- Dim
(L x W x H) 0.6 x 0.3 x 0.23 mm
- RoHS-compliant
Yes
- Type
ERJ1GNF33R0C
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
55 °C
- Certification marks
AEC-Q200, IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
Documents & Downloads
Datasheet
Datasheet 3464804 Panasonic ERJ1GNF33R0C SMD resistor 33 Ω SMD 0201 0.05 W 1 % 200 ppm/°C 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3464804 Panasonic ERJ1GNF33R0C SMD resistor 33 Ω SMD 0201 0.05 W 1 % 200 ppm/°C 1 pc(s) Tape
Description
Panasonic ERJ1GNJ 0201 0.05W 1% SMD Dick
This text is machine translated.
This text is machine translated.
Features
- • Precision thick film chip resistor
- • High reliability due to metallized thick film resistor element and three electrode layers
- • Reflow and surge solderable
- • REFERENCE STANDARDS: IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- • Original packaging: 15,000 pieces on belt with 2 mm grid spacing
