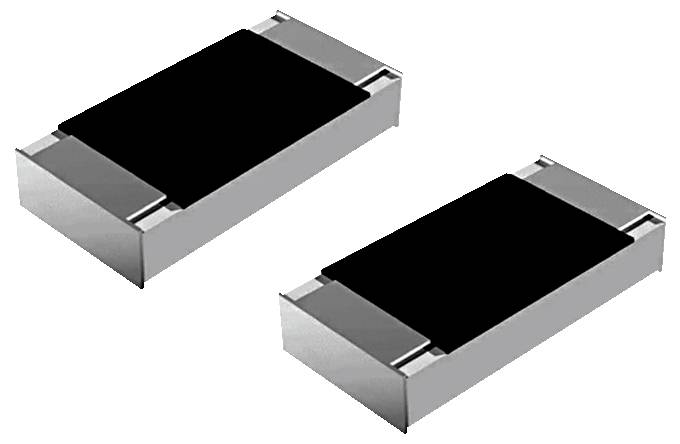

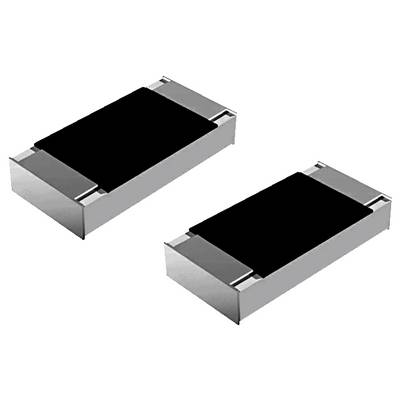

Panasonic ERJP06F3300V SMD resistor 330 Ω SMD 0805 0.5 W 1 % 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
SMD resistor
Type
0805
Resistance
330 Ω
Power rating
0.5 W
Datasheet (PDF)
Highlights & Details
Panasonic SMD-thick layer 0805 0.5W 1% 330R
Our service for you
Technical specifications
- Series ERJP06
- Design 0805
- Delivery type: Belt
- Weight: 0.002 g
- Soldibility 270 °C / 10 s
- Resistance tolerance: ±1 %
- Rated output: 0.5 W
- Max. OPERATING VOLTAGE (DC) 400 V DC
- Max. OPERATING VOLTAGE (AC) 400 V AC
- Max voltage 600 V
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
SMD resistor
- Type
SMD
- Type
0805
- Resistance
330 Ω
- Power rating
0.5 W
- Tolerance ±
1 %
- Length
2 mm
- Width
1.25 mm
- Height
0.6 mm
- Content
1 pc(s)
- Dim
(L x W x H) 2 x 1.25 x 0.6 mm
- RoHS-compliant
Yes
- Type
ERJP06F3300V
- Operating temperature (max.)
155 °C
- Operating temperature (min.)
55 °C
- Certification marks
AEC-Q200, IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
Documents & Downloads
Datasheet
Datasheet 3464838 Panasonic ERJP06F3300V SMD resistor 330 Ω SMD 0805 0.5 W 1 % 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3464838 Panasonic ERJP06F3300V SMD resistor 330 Ω SMD 0805 0.5 W 1 % 1 pc(s) Tape
Description
Panasonic series ERJP06F 0805 1%
This text is machine translated.
This text is machine translated.
Features
- • SMD anti-surge thick film resistors
- • ESD surge protector that is superior to standard metal film resistors
- • High reliability
- • Thick film resistor element with metal glaze and three electrode layers
- • AEC-Q200 qualified
- • REFERENCE STANDARDS IEC 60115-8, JIS C 5201-8, JEITA RC-2134C
- • Original packaging: 5,000 pieces on belt with 4 mm grid spacing
