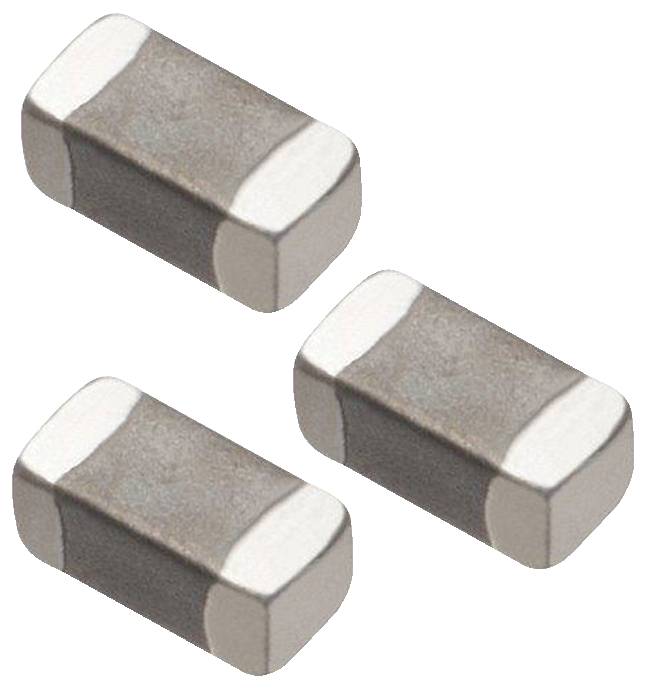

Panasonic ERTJ1VR103J NTC thermistor SMD 0603 10 kΩ 0.1 W 1 pc(s) Tape
Part number:
Item no:
Packaging type
Tape
Product type
NTC thermistor
Type
SMD
Resistance
10 kΩ
Power rating
0.1 W
Datasheet (PDF)
Highlights & Details
Panasonic NTC resistor SMD 0603 10K 5% R
Our service for you
Technical specifications
- Application: Temperature compensation, measurement and acquisition: For thermometer, temperature controller, transistor, transistor circuit, quartz oscillating circuit and measuring devices. For mobile phones, PCs and peripherals, rechargeable batteries, LCDs, car audio systems, electrical pumps and compressors, LED lamps etc.
- ESD Packaging: No ESD
- Series ERTJ
- Design 0603
- Delivery type: Belt
- Resistance tolerance: ±5 %
- Rated output: 0.1 W
- Qualification: AEC-Q200
- Packaging type
Tape
- Product type
NTC thermistor
- Type
SMD
- Type
0603
- Resistance
10 kΩ
- Power rating
0.1 W
- Tolerance ±
5 %
- R 25
10 kΩ
- Min. temperature
-40 °C
- Max. temperature
125 °C
- Content
1 pc(s)
- RoHS-compliant
Yes
- Dim
(L x W x H) 1.6 x 0.8 x 0.8 mm
- Type
ERTJ1VR103J
- Height
0.8 mm
- Length
1.6 mm
- Width
0.8 mm
- Operating temperature (max.)
125 °C
- Operating temperature (min.)
-40 °C
Documents & Downloads
Datasheet
Datasheet 3464860 Panasonic ERTJ1VR103J NTC thermistor SMD 0603 10 kΩ 0.1 W 1 pc(s) Tape
User & Safety Instructions
User & Safety Instructions 3464860 Panasonic ERTJ1VR103J NTC thermistor SMD 0603 10 kΩ 0.1 W 1 pc(s) Tape
Description
Panasonic SMD NTC series ERTJ
This text is machine translated.
This text is machine translated.
Features
- NTC resistor, SMD
- Reliable multi-layered monolithic structure
- Large operating temperature range -40 to +125°C.
