Panasonic ERZE14A561 Metal oxide varistor 560 V 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Metal oxide varistor
V<sub>v</sub>
560 V
CS
10 mm
(Ø)
16.5 mm
Datasheet (PDF)
Highlights & Details
Panasonic M-varistor ZNR Ø16,5mm 350V 560V 10000A
Our service for you
Technical specifications
- Application: For the protection of electronic modules as voltage-dependent resistors (VDRs)
- ESD Packaging: No ESD
- Series: Ores
- Delivery form: Loose
- Diameter, Resistance element 16.5 mm
- Diameter, connection wire 1 mm
- Rated output: 1 W
- Nominal voltage: 350 V
- Varistor voltage (@1mA) 560 V
- Surge current 1,000 A.
- Energy absorption 120 J
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Vv
560 V
- CS
10 mm
- Content
1 pc(s)
- (Ø)
16.5 mm
- Height
40.0 mm
- Width
7.2 mm
- Manufacturer part #
ERZE14A561
- Dim
(Ø x H) 16.5 mm x 40.0 mm
- RoHS-compliant
Yes
- Peak current I(pp)
1.000 A
- Type
ERZE14A561
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
40 °C
- Resistance
0 Ω
Documents & Downloads
Datasheet
Datasheet 3464789 Panasonic ERZE14A561 Metal oxide varistor 560 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3464789 Panasonic ERZE14A561 Metal oxide varistor 560 V 1 pc(s) Bulk
Description

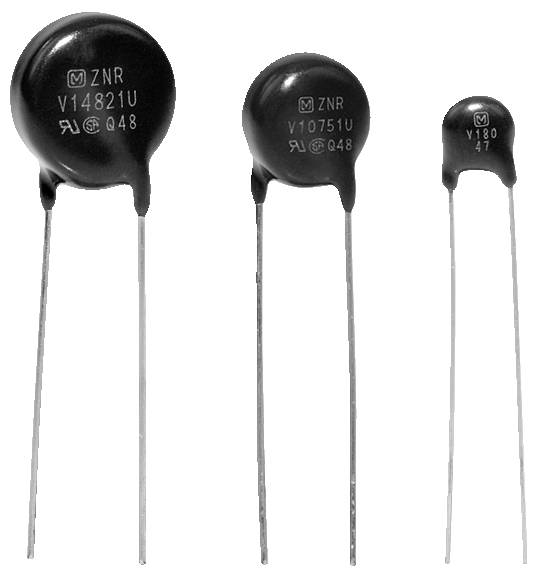

Panasonic Varistors ORE series
This text is machine translated.
This text is machine translated.
Features
- • "ZNR" transient / surge suppressor (E Series, Type D)
- • High surge current capacity in relation to compact design
- • High energy capacity and safe absorption of transient overvoltage
