Panasonic ERZV05D220 Metal oxide varistor 22 V 1 pc(s)
Part number:
Item no:
Product type
Metal oxide varistor
V<sub>v</sub>
22 V
CS
5 mm
(Ø)
7 mm
Height
30.0 mm
Datasheet (PDF)
Highlights & Details
Panasonic M-varistor ZNR Ø7mm 14V 22V 250A
Our service for you
Technical specifications
- Application: For the protection of electronic modules as voltage-dependent resistors (VDRs)
- ESD Packaging: No ESD
- Series ERZV
- Delivery form: Loose
- Diameter, Resistance element 7 mm
- Diameter, connection wire 0.6 mm
- Rated power: 0.01 W
- Nominal voltage: 14 V
- Varistor voltage (@1mA) 22 V
- Surge current 250 A.
- Energy absorption 0.7 J
- Product type
Metal oxide varistor
- Vv
22 V
- CS
5 mm
- Content
1 pc(s)
- (Ø)
7 mm
- Height
30.0 mm
- Width
4.5 mm
- Manufacturer part #
ERZV05D220
- Dim
(Ø x H) 7 mm x 30.0 mm
- RoHS-compliant
Yes
- Peak current I(pp)
250 A
- Type
ERZV05D220
- Mounting type
PCB mount
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
40 °C
- Resistance
0 Ω
Documents & Downloads
Datasheet
Datasheet 3464870 Panasonic ERZV05D220 Metal oxide varistor 22 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3464870 Panasonic ERZV05D220 Metal oxide varistor 22 V 1 pc(s)
Description

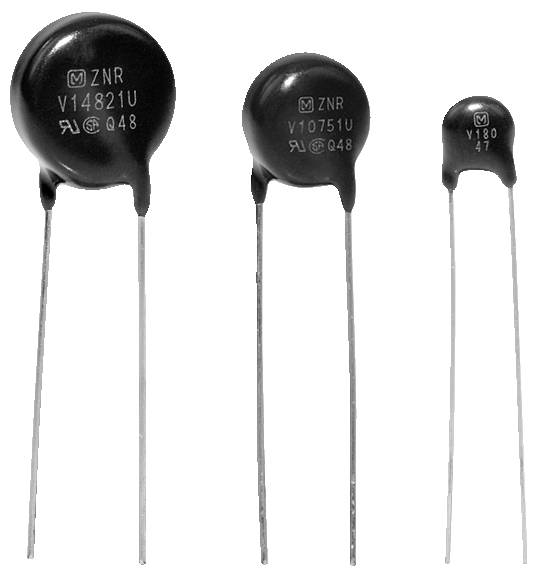

Panasonic varistors, ERZV series
This text is machine translated.
This text is machine translated.
Features
- • "ZNR" transient / surge suppressor (type D)
- • High surge current capacity in relation to compact design
- • High energy capacity and safe absorption of transient overvoltage
