Panasonic ERZV10D102 Metal oxide varistor 1.000 V 1 pc(s) Bulk
Part number:
Item no:
Packaging type
Bulk
Product type
Metal oxide varistor
V<sub>v</sub>
1.000 V
CS
7.5 mm
(Ø)
12.5 mm
Datasheet (PDF)
Highlights & Details
Panasonic M-varistor ZNR Ø12,5mm 625V 1000V 3500A
Our service for you
Technical specifications
- Application: For protection of electronic modules as voltage-dependent resistors (VDRs)
- ESD Packaging: No ESD
- Series ERZV
- Delivery form: Loose
- Diameter, Resistance element 12.5 mm
- Diameter, connection wire 0.8 mm
- Rated output: 0.4 W
- Nominal voltage: 625 V
- Varistor voltage (@1mA) 1,000 V
- Surge current 3,500 A.
- Energy absorption 140 J
- Packaging type
Bulk
- Product type
Metal oxide varistor
- Vv
1.000 V
- CS
7.5 mm
- Content
1 pc(s)
- (Ø)
12.5 mm
- Height
35.5 mm
- Width
9.1 mm
- Manufacturer part #
ERZV10D102
- Dim
(Ø x H) 12.5 mm x 35.5 mm
- RoHS-compliant
Yes
- Peak current I(pp)
3.500 A
- Type
ERZV10D102
- Mounting type
PCB mount
- Operating temperature (max.)
85 °C
- Operating temperature (min.)
40 °C
- Resistance
0 Ω
Documents & Downloads
Datasheet
Datasheet 3464887 Panasonic ERZV10D102 Metal oxide varistor 1.000 V 1 pc(s) Bulk
User & Safety Instructions
User & Safety Instructions 3464887 Panasonic ERZV10D102 Metal oxide varistor 1.000 V 1 pc(s) Bulk
Description

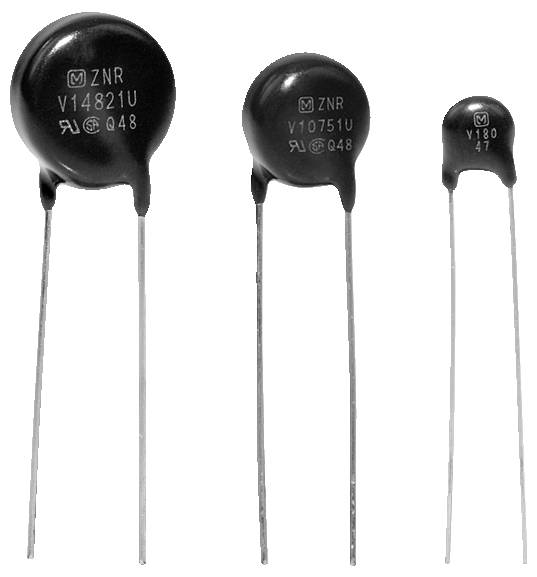

Panasonic varistors, ERZV series
This text is machine translated.
This text is machine translated.
Features
- • "ZNR" transient / surge suppressor (type D)
- • high surge current capacity in relation to compact design
- • High energy capacity and safe absorption of transient overvoltage
