Panasonic JSM1125 Automotive relay 12 V DC 15 A 1 change-over
EAN:
Part number:
Item no:
Product type
Automotive relay
Coil nominal voltage
12 V DC
Contact type
1 change-over
Connection
Print
Switching voltage (max.)
16 V DC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 1.50
10
7% = € 0.11
€ 1.39
25
11% = € 0.16
€ 1.34
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 1.50 / piece)
€ 1.50
plus VAT.
14-day return policy included
Technical specifications
- Switch-on current: (lamp load) 50 A
- Switching current (min.): (at 12 V/DC) 1 A
- Coil rating: 640 mW
- Insulation resistance (500 V/DC) 100 MΩ
- Product type
Automotive relay
- Type
JSM1125
- Features
w/o elbow mount
- Coil nominal voltage
12 V DC
- Contact type
1 change-over
- Contact material
Silver alloy
- Connection
Print
- Switching voltage (max.)
16 V DC
- Switching current (max.)
15 A
- Max. switching capacity
160 W
- Resistance (coil)
225 Ω
- Durability
1 x 107
- Min. temperature
-40 °C
- Max. temperature
+85 °C

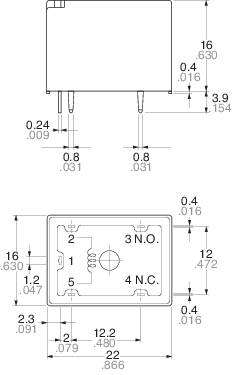

- Width
12 mm
- Height
16 mm
- Length
22 mm
- Dim
(L x W x H) 22 x 12 x 16 mm
- RoHS-compliant
- Type
1 changeover contact
- Type
JSM1125
Documents & Downloads
Datasheet
Datasheet 505041 Panasonic JSM1125 Automotive relay 12 V DC 15 A 1 change-over
User & Safety Instructions
User & Safety Instructions 505041 Panasonic JSM1125 Automotive relay 12 V DC 15 A 1 change-over
Description
Space-saving automotive relay with a very high inrush current. High current with a sealed enclosure. Application: comfort electronics, power windows, central locking, seat adjustment, sunroof, wipers, fans, mirrors adjusted, lighting.
This text is machine translated.
This text is machine translated.
Hints
Switch current information refers to peak current. Full details free to download from our comprehensive product documents library.
