Panasonic LX101Z Colour sensor 1 pc(s) 12 - 24 V DC (L x W x H) 35 x 24 x 57 mm
EAN:
Part number:
Item no:
Product type
Colour sensor
Min. operating voltage
12 V DC
Max. operating voltage
24 V DC
Length
35 mm
Width
24 mm
Datasheet (PDF)
Number
Total (€ 449.58 / piece)
€ 449.58
plus VAT.
14-day return policy included
Highlights & Details
Contrast and color sensor LX101
- Output time function (switch-on and delayed)
- Key-lock function
- Light/Dark switchable
- Short response time of 45 μs
- Status indication by LEDS.
- Compact design of just 24 x 35 x 57 mm
Technical specifications
- Response time: (contrast mode) 45 µs, (color mode) 150 μs
- Sensing range (± 3 mm) 10 mm
- Product type
Colour sensor
- Type
LX101Z
- Connector
M12 (4-pin)
- Outputs
NPN
- Min. operating voltage
12 V DC
- Max. operating voltage
24 V DC
- Operating voltage
12 - 24 V DC
- Min. temperature
-10 °C
- Max. temperature
+55 °C
- Length
35 mm
- Width
24 mm
- Height
57 mm

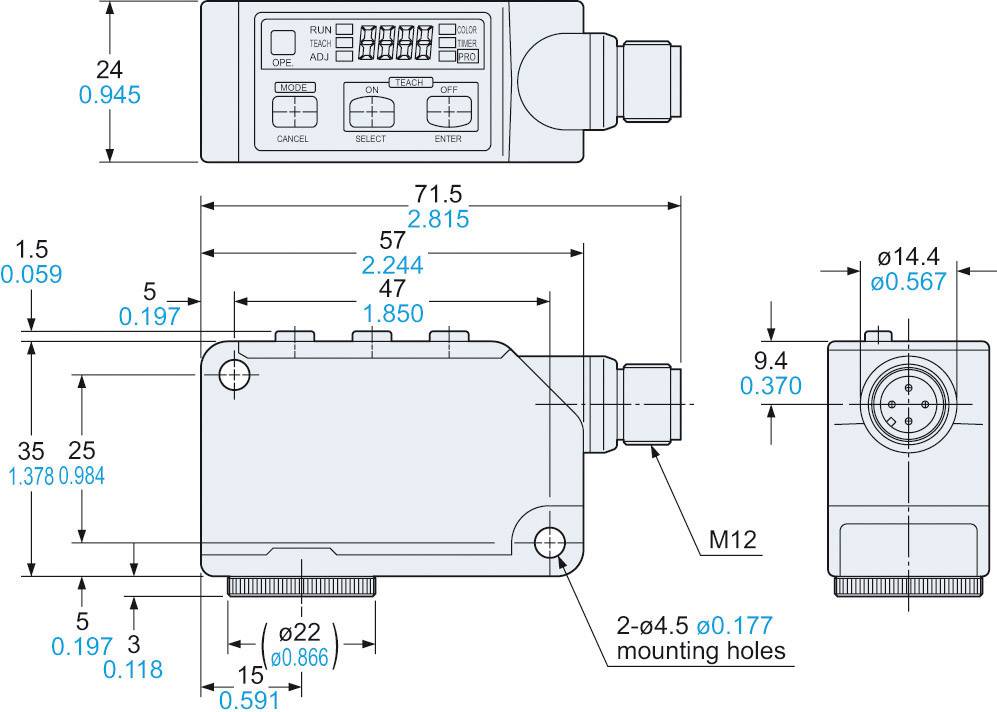

- Dim
(L x W x H) 35 x 24 x 57 mm
IP67
Documents & Downloads
Datasheet
Datasheet 1429115 Panasonic LX101Z Colour sensor 1 pc(s) 12 - 24 V DC (L x W x H) 35 x 24 x 57 mm
User & Safety Instructions
User & Safety Instructions 1429115 Panasonic LX101Z Colour sensor 1 pc(s) 12 - 24 V DC (L x W x H) 35 x 24 x 57 mm
Description
The sensor LX101 is a combined color and contrast sensor. For a highly precise color recognition and contrast detection such as print marks or labels. Simple learning by teach-in (also via external input). Fast and reliable detection by 3 transmission sources of light (red, green, blue). Internal processing using 12-bit A/D converter. 4-digit LCD for value display.
Applications: color recognition, brand detection, contrast detection.
This text is machine translated.
Applications: color recognition, brand detection, contrast detection.
