Name: Panasonic NCR18650BD Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 3.18 Ah 1 pc(s)
Brand: Panasonic
SKU: 3768034

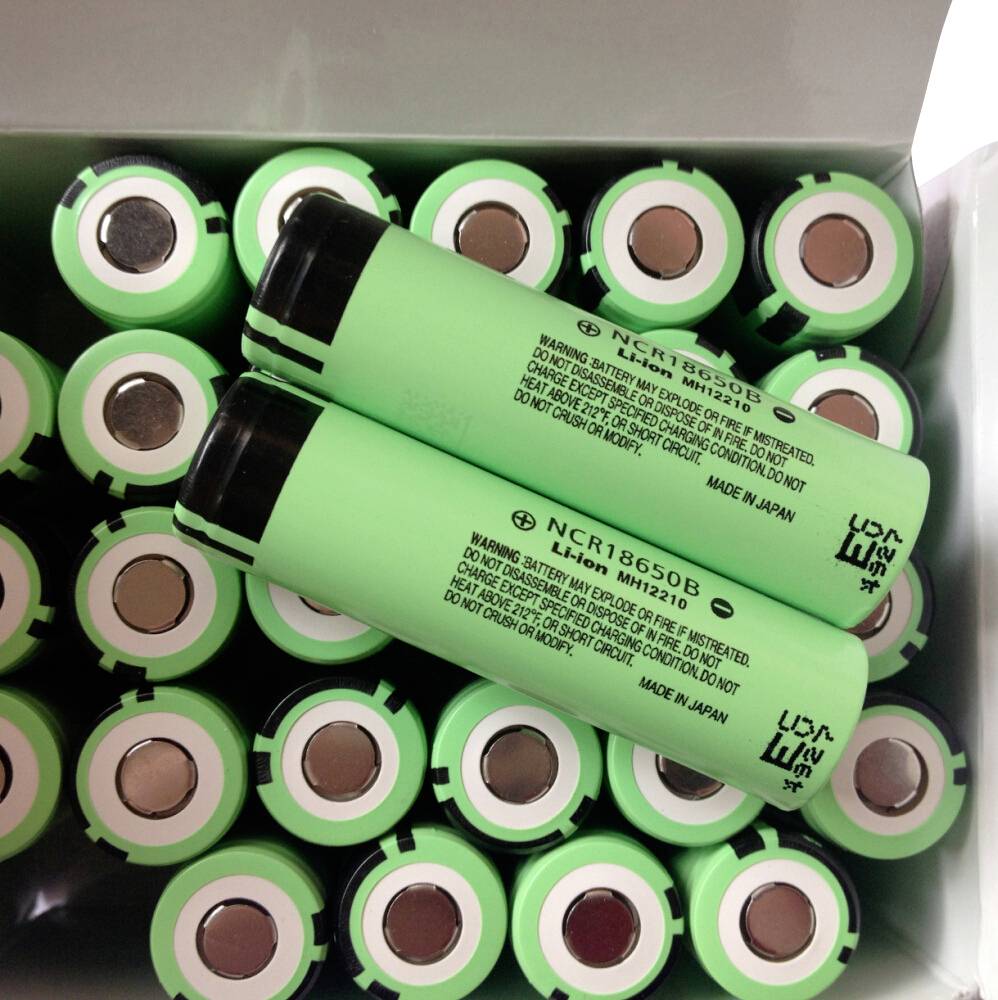

Box of green rechargeable batteries, with two loose batteries laid diagonally on top of upright batteries in packaging.

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Panasonic NCR18650BD Li-Ion 3.6V / 3.18Ah

High energy density & endurance: Typical capacity of 3,180 mAh for extra long periods.
Strong performance: Constant continuous discharge current of up to 10 A (Ideal for medium loads).
Premium quality made by Panasonic – extremely long-life, resistant to cycles and safe.

Technical specifications

Charging procedure CC-CV (constant current - constant voltage)

Size: 18650

Product type: Non-standard battery (rechargeable)

Technology: Li-ion

Dim: (Ø x H) 18.5 mm x 65.3 mm

Voltage: 3.6 V

Capacity (mAh, Ah): 3.18 Ah

Special-purpose battery features: Flat top

Max. charge voltage: 4.2 V

Max. charging current: 1500 mA

Terminal voltage: 2.5 V

Discharge current (max.): 10 A

Continuous discharge: 10 A

Min. temperature: -20 °C

Max. temperature: 60 °C

Height: 65.3 mm

(Ø): 18.5 mm

Weight: 49 g

Content: 1 pc(s)

Type: NCR18650BD

Rechargeable: Yes

Integrated surge protection: No

Documents & Downloads

Datasheet

Datasheet 3768034 Panasonic NCR18650BD Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 3.18 Ah 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3768034 Panasonic NCR18650BD Non-standard battery (rechargeable) 18650 Flat top Li-ion 3.6 V 3.18 Ah 1 pc(s)

Description

The Panasonic NCR18650BD is the perfect choice for all applications that require durability and reliability. With a rich capacity of 3,180 mAh and a maximum permanent discharge current of 10 A, this high-end cell provides a constant stable energy. Whether for e-mobility, flashlights or constructing your own battery pack - trust proven Panasonic quality for maximum life and safety.

This text is machine translated.
