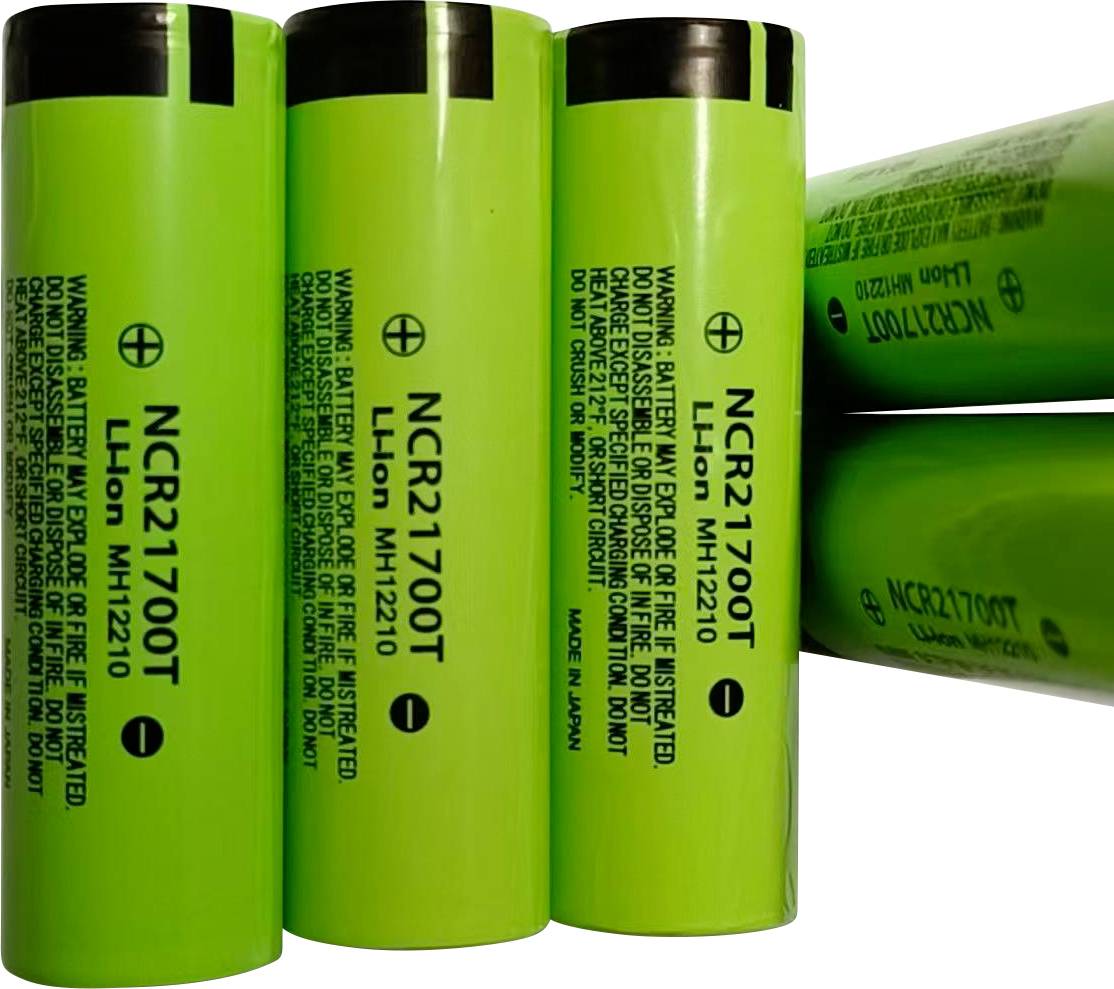

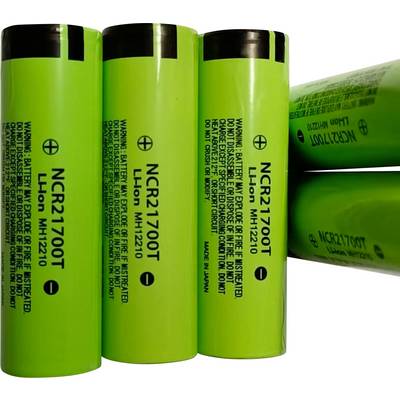

Panasonic NCR21700T Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5 Ah 1 pc(s)
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Panasonic NCR21700T Li-Ion 3.6V / 5.0 Ah
- Enormous energy density: A typical rich 5,000 mAh capacity in the compact 21700 design.
- First-class Panasonic quality: High cycle strength and long-life NCR cell chemistry (nickel cobalt aluminum).
- Universal flat-top terminal: Ideal for industrial use and for customized battery packs.
Technical specifications
- Charging procedure CC-CV (constant current - constant voltage)
- Size
21700
- Product type
Non-standard battery (rechargeable)
- Technology
Li-ion
- Dim
(Ø x H) 21.35 mm x 70.30 mm
- Voltage
3.6 V
- Capacity (mAh, Ah)
5 Ah
- Special-purpose battery features
Flat top
- Max. charge voltage
4.2
- Max. charging current
2500 mA
- Terminal voltage
2.5 V
- Discharge current (max.)
15 A
- Continuous discharge
10 A
- Min. temperature
-20 °C
- Max. temperature
60 °C
- Height
70.30 mm
- (Ø)
21.35 mm
- Weight
68 g
- Content
1 pc(s)
- Type
NCR21700T
- Rechargeable
Yes
- Integrated surge protection
No
Documents & Downloads
Datasheet
Datasheet 3768031 Panasonic NCR21700T Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5 Ah 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3768031 Panasonic NCR21700T Non-standard battery (rechargeable) 21700 Flat top Li-ion 3.6 V 5 Ah 1 pc(s)
Description
The Panasonic NCR21700T sets new standards in endurance and reliability. With an impressive capacity of 5,000 mAh, this unprotected high-capacity battery is the perfect power source for e-bikes, high-end torches, power banks and demanding model construction projects. Rely on stable performance and maximum energy in the smallest room.
This text is machine translated.
This text is machine translated.
Scope of delivery
- 1 x Panasonic NCR21700T Li-Ion
