Buy Panasonic Pressure sensor 1 pc(s) DP-102-E-P -1 bar up to 10 bar Cable, open end (L x W x H) 42.5 x 30 x 30 mm

White digital pressure gauge by Panasonic, Model DP-100, with red and yellow LED displays showing -93.5 kPa and -50.0.

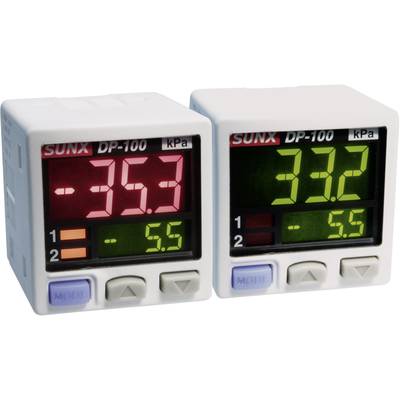

Two digital pressure sensors, one showing '-35.3 kPa' in red, the other '33.2 kPa' in green. Both devices have blue mode buttons.

1/2

Product type

Pressure sensor

Connector

Cable, open end

Model

Relative pressure

Pressure reading range (max.)

10 bar

Max. operating voltage

24 V DC

Datasheet (PDF)

10 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Number

Piece(s)

Total (€ 109.24 / piece)

€ 151.26

-28 %

€

Only 10 Piece(s) available

Report legal concerns

Highlights & Details

Panasonic Pressure sensor 1 pc(s) DP-102-E-P -1 bar up to 10 bar Cable, open end (L x W x H) 42.5 x 30 x 30 mm

Simultaneous display of actual and threshold
Status indication by LEDS
Power-saving mode
Adjustable response time of 2.5 - 5000 ms

Technical specifications

Product type: Pressure sensor

Type: DP-102-E-P

Connector: Cable, open end

Model: Relative pressure

Outputs: PNP

Pressure reading range (min.): -1 bar

Pressure reading range (max.): 10 bar

Pressure reading range: -1 bar up to 10 bar

Min. operating voltage: 12 V DC

Max. operating voltage: 24 V DC

Operating voltage: 12 - 24 V DC

: IP40

Hose connection: M5 IG
G1/8 AG

Min. temperature: -10 °C

Max. temperature: +55 °C

Length: 42.5 mm

Width: 30 mm

Height: 30 mm

Dim: (L x W x H) 42.5 x 30 x 30 mm

Content: 1 pc(s)

Type: Cord plug 2 m.

Type: DP102EP

Documents & Downloads

Datasheet

Datasheet 504940 Panasonic Pressure sensor 1 pc(s) DP-102-E-P -1 bar up to 10 bar Cable, open end (L x W x H) 42.5 x 30 x 30 mm

User & Safety Instructions

User & Safety Instructions 504940 Panasonic Pressure sensor 1 pc(s) DP-102-E-P -1 bar up to 10 bar Cable, open end (L x W x H) 42.5 x 30 x 30 mm

Description

Pressure sensor miniaturized design (30 x 30 mm). Suitable for air and non-corrosive gases. Output can be used as a reference pressure switch input can be switched (definition). Large measurement range for overpressure/vacuum. Selectable pressure units: bar, kPa, psi, etc. Three-color dual-LCD-display (red, green, orange).
Applications: leak test, pressure measurement, pressure monitoring.
