Buy Panasonic Reflective light barrier PM-T45 PM-T45 T Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

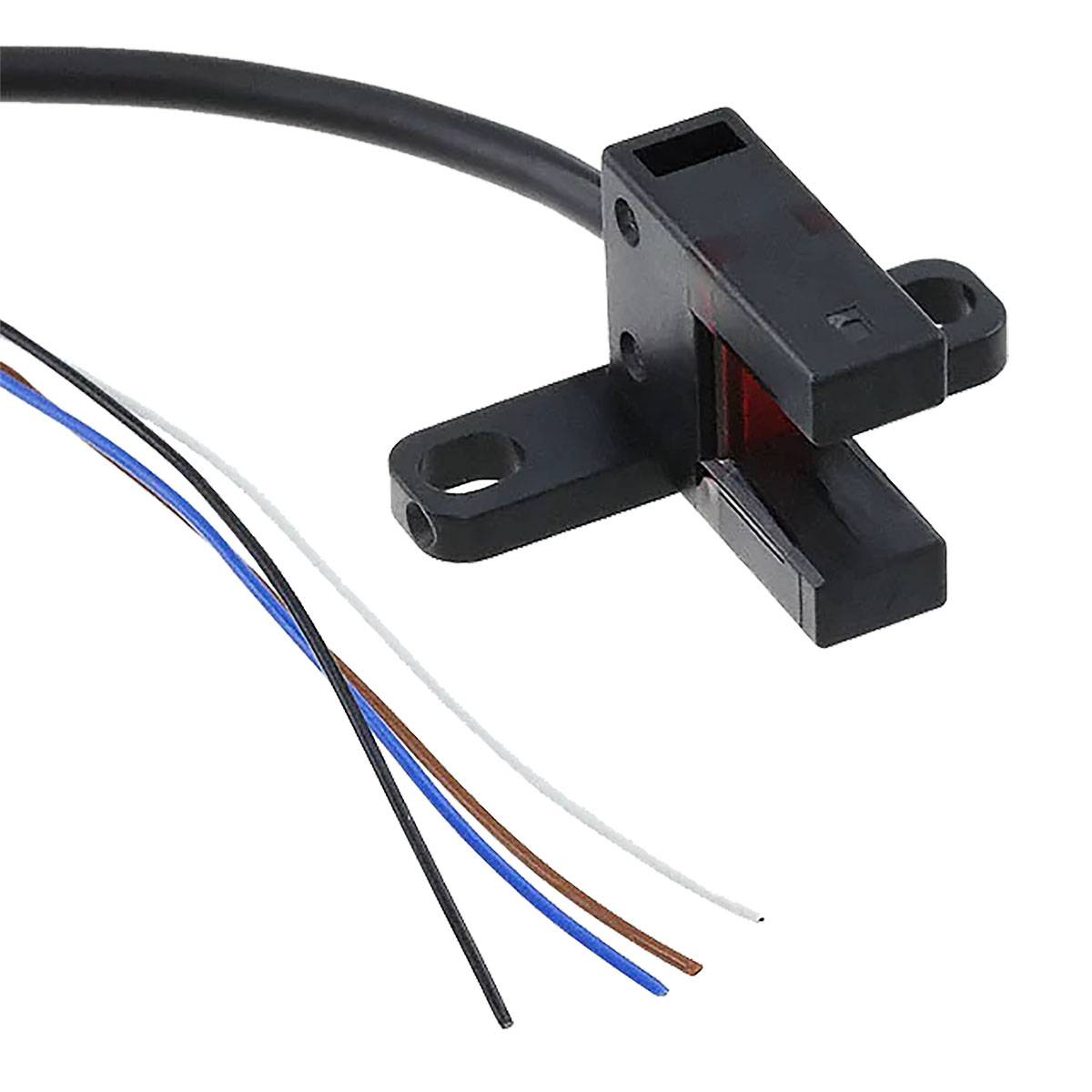

'Black optoelectronic sensor with red light, mounted on bracket. Marking: Panasonic PV-T45.'

Image similar

Technical drawing of a mechanical part with dimensions: Width 26 mm, Height 13.7 mm, Depth 18.1 mm. Dimensions also provided in inches.

1/2

Image similar

Product type

Reflective light barrier

Model

Functions

Light-ON

Dark-ON

Max. operating voltage

24 V DC

Connector

Cable, open end

Datasheet (PDF)

43 Piece(s)

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.84 / piece)

€

Report legal concerns

Highlights & Details

Fork light barrier, Series PM (45)

Fork width: 6mm
Short response time of 20 μs bright-on
Response time 80 μs dark-on
Foreign Light independent
Reverse polarity protection

Technical specifications

Product type: Reflective light barrier

Type: PM-T45

Model: T

Functions: Light-ON
Dark-ON

Min. operating voltage: 5 V DC

Max. operating voltage: 24 V DC

Operating voltage: 5 - 24 V DC

Outputs: NPN

Connector: Cable, open end

Cable length: 1.00 m

Enclosure material: PBT

Transmitter type: LED IR

Wavelength: 855 nm

: IP64

Min. temperature: -25 °C

Max. temperature: +55 °C

Length: 26 mm

Width: 13.7 mm

Height: 18.1 mm

Dim: (L x W x H) 26 x 13.7 x 18.1 mm

Documents & Downloads

Datasheet

Datasheet 1547440 Panasonic Reflective light barrier PM-T45 PM-T45 T Light-ON, Dark-ON 5 - 24 V DC 1 pc(s)

Description

Fork light beam in very small size. Two transistor outputs bright-on and dark-on. LED display of switching status Jet markings for easy adjustment. Insensitive to vibrations and shocks.
Applications: contactless switch, object detection (e.g. coins), position detection, scanning (e.g. register marks), Coding disc query, speed and speed detection, band crack testing.
