Panduit VS-AVT-C02-L03 VeriSafe 1.0 AVT system cable, 2' (0.6m), sensor cables 3' (0.9 m) Voltage freedom tester 600 V 1
EAN:
Part number:
Item no:
Product type
Voltage freedom tester
Nominal voltage
600 V
Content
1 pc(s)
Cable length
0.6 m
Technical specifications
- Cable length (foot): 2 feet
- Cable length (m) 0.6 m
- Max. VOLTAGE (V AC) 600 V/AC
- Max. VOLTAGE (V DC) 600 V/DC
- Max. Voltage (V) 600 V
- Fulfilled standards: UL 1436, UL 508, CSA-C22.2 No. 14, CAN/CSA-C22 No.160, CAN/CSA-C22.2 No.107.1, IEC/UL/CSA C22.2 No. 61010-1, IEC/UL.CSA C22.2 No. 61010-2-030, IEC 61508-1, -2 and -3 (SIL rating)
- For use with: 3-phase AC systems
- Power supply: Lithium battery
- Network compatible: No.
- Maximum operating temperature (°C): 60°C.
- Min Operating temperature (°C): --25°C.
- Max. Storage temperature (°C): 85°C.
- Min Storage temperature (°C): -45°C.
- Battery voltage (V): 3.6 V.
- Chemical composition of the battery: Lithium-ion
- Sensor wire length (foot): 3 feet
- Sensor conductor length (m): 0.9 m
- Nominal voltage
600 V
- Product type
Voltage freedom tester
- Content
1 pc(s)
- Cable length
0.6 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3558084 Panduit VS-AVT-C02-L03 VeriSafe 1.0 AVT system cable, 2' (0.6m), sensor cables 3' (0.9 m) Voltage freedom tester 600 V 1
Description
With our voltage tester, make sure that your devices are voltage free before maintenance and increase the safety in your workplace.

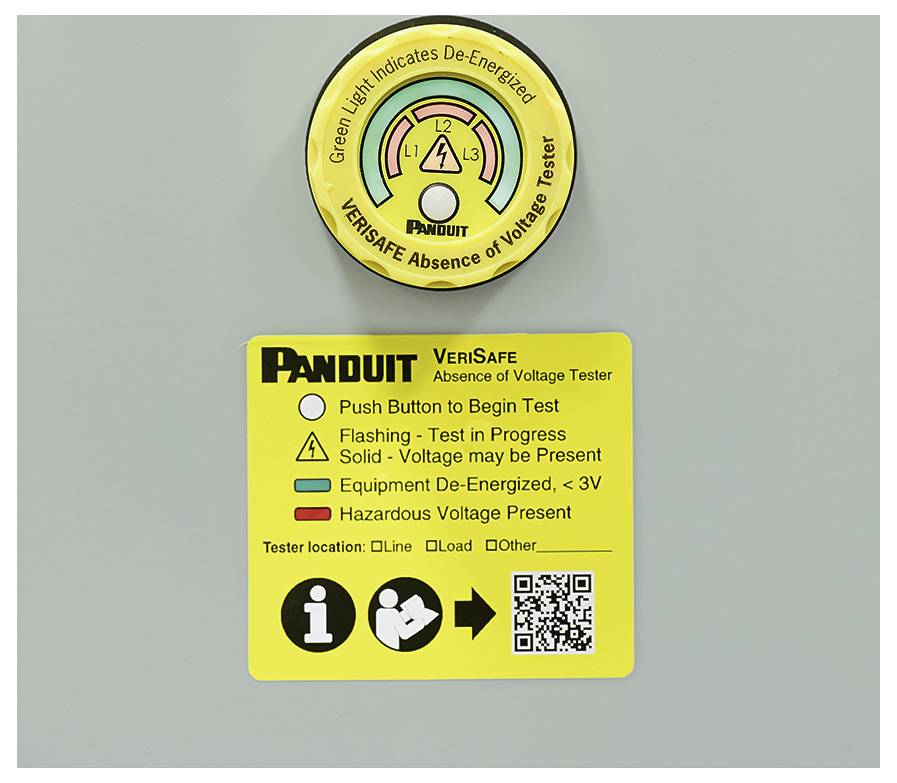

The VS-AVT-C02-L03 VeriSafe 1.0 is a permanently mounted voltage tester for use in 3-phase AC systems up to 600 V. Activation of VeriSafe prior to opening the control cabinet will carry out a de-energized test that will help prevent potential exposure to electrical hazards. Improve security and reduce downtime.
This text is machine translated.
The VS-AVT-C02-L03 VeriSafe 1.0 is a permanently mounted voltage tester for use in 3-phase AC systems up to 600 V. Activation of VeriSafe prior to opening the control cabinet will carry out a de-energized test that will help prevent potential exposure to electrical hazards. Improve security and reduce downtime.
This text is machine translated.

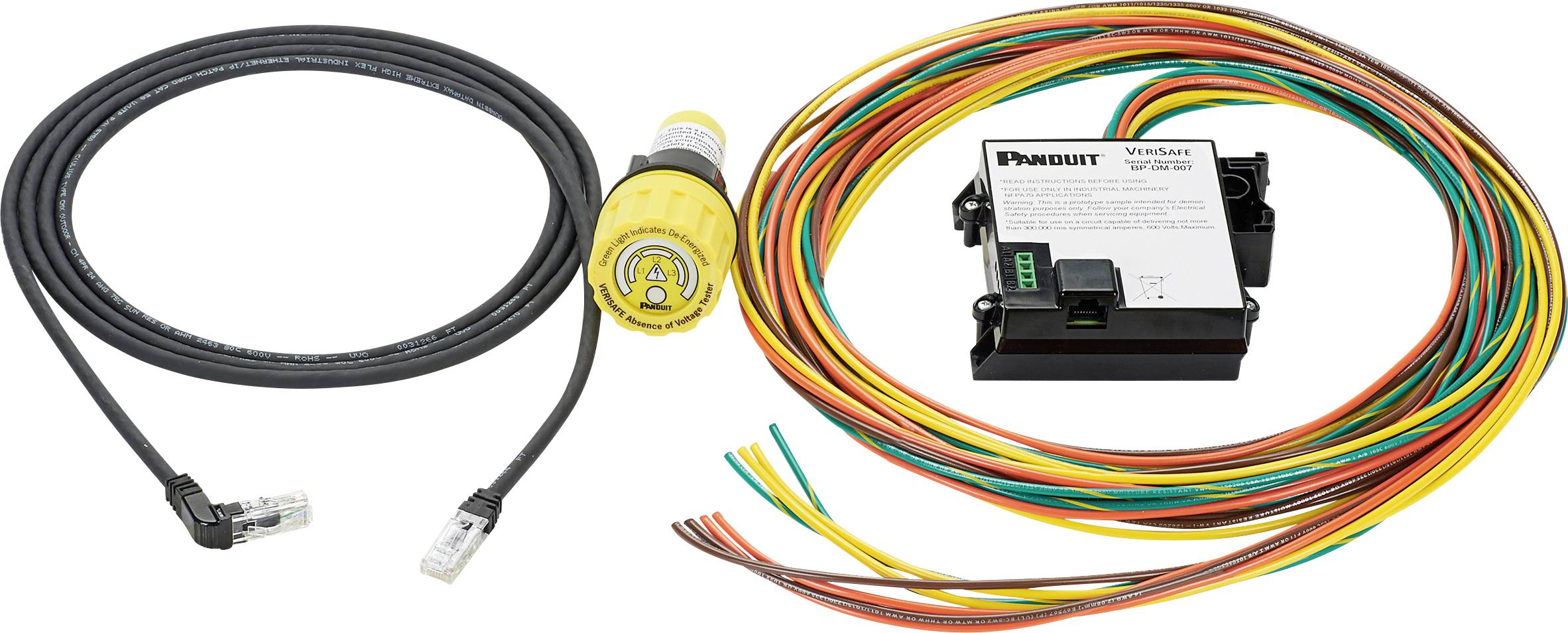

Scope of delivery
- Separating module
- System cable 0.6 m
- 0.9 m sensor cable
- Labels
- Display module and lithium battery
- Voltage freedom tester
- VS-AVT-C02-L03
