Panduit VS2-AVT-1PF-08 VeriSafe 2.0 AVT 1P system cable, 8' (2.4m), battery-free indicator Voltage freedom tester 1000 V
EAN:
Part number:
Item no:
Product type
Voltage freedom tester
Nominal voltage
1000 V
Operating voltage
24 V DC
Content
1 pc(s)
Cable length
2.44 m
Technical specifications
- Cable length (foot): 8 feet
- Cable length (m) 2.44 m
- Max. VOLTAGE (V AC) 1000 V/AC
- Max. VOLTAGE (V DC) 1000 V/DC
- Max. Voltage (V) 1000 V
- Fulfilled standards: UL 1436, UL 508, CSA-C22.2 No. 14, CAN/CSA-C22 No.160, CAN/CSA-C22.2 No.107.1, IEC/UL/CSA C22.2 No. 61010-1, IEC/UL.CSA C22.2 No. 61010-2-030, IEC 61508-1, -2 and -3 (SIL rating)
- For use with: 1-phase AC systems, DC systems
- Power supply 12-24 VDC, POE*
- Network-compatible: Yes
- Maximum operating temperature (°C): 60°C.
- Min Operating temperature (°C): --25°C.
- Max. Storage temperature (°C): 85°C.
- Min Storage temperature (°C): -45°C.
- Nominal voltage
1000 V
- Product type
Voltage freedom tester
- Operating voltage
24 V DC
- Content
1 pc(s)
- Cable length
2.44 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3558105 Panduit VS2-AVT-1PF-08 VeriSafe 2.0 AVT 1P system cable, 8' (2.4m), battery-free indicator Voltage freedom tester 1000 V
Description
With advanced voltage detection and testing, our voltage-free testers ensure that your devices are voltage free before maintenance and thus protect your employees.

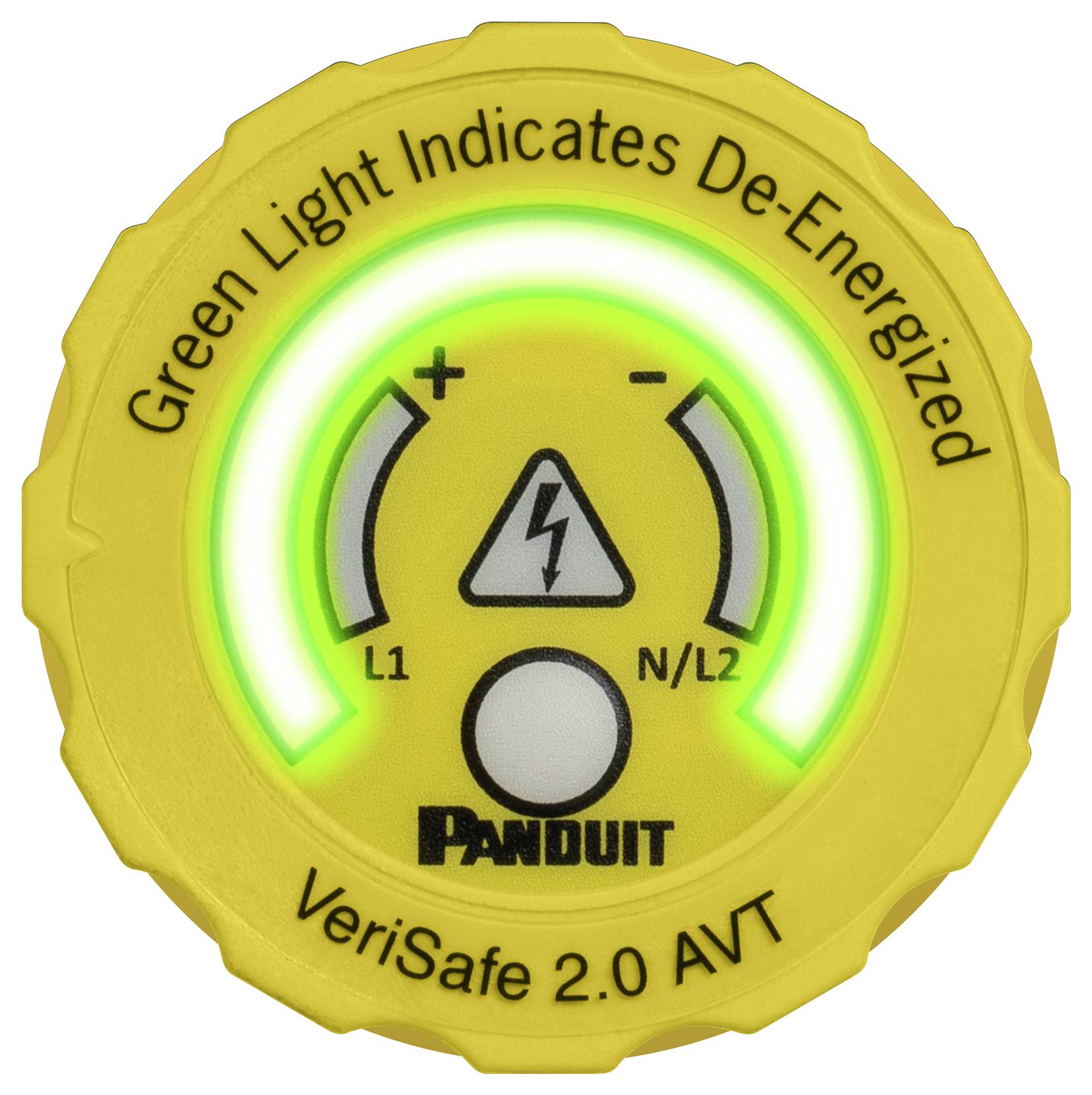

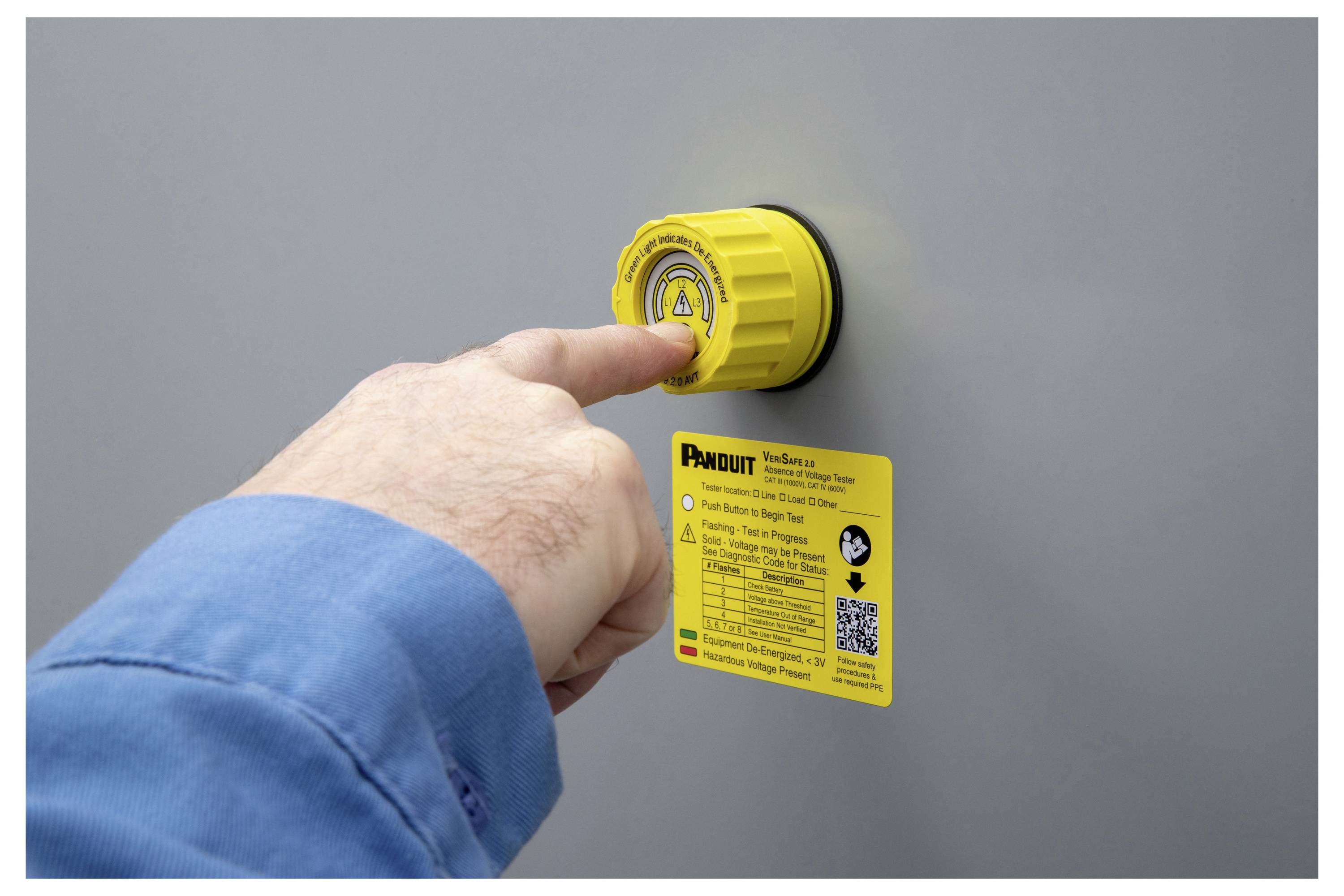

The VS2-AVT-1PF-08 VeriSafe 2.0 voltage tester is a fixed voltage tester for use in single-phase AC or DC systems up to 1,000 V. Activation of VeriSafe prior to opening the control cabinet will perform a de-energized test that will help prevent potential exposure to electrical hazards.
This text is machine translated.
The VS2-AVT-1PF-08 VeriSafe 2.0 voltage tester is a fixed voltage tester for use in single-phase AC or DC systems up to 1,000 V. Activation of VeriSafe prior to opening the control cabinet will perform a de-energized test that will help prevent potential exposure to electrical hazards.
This text is machine translated.

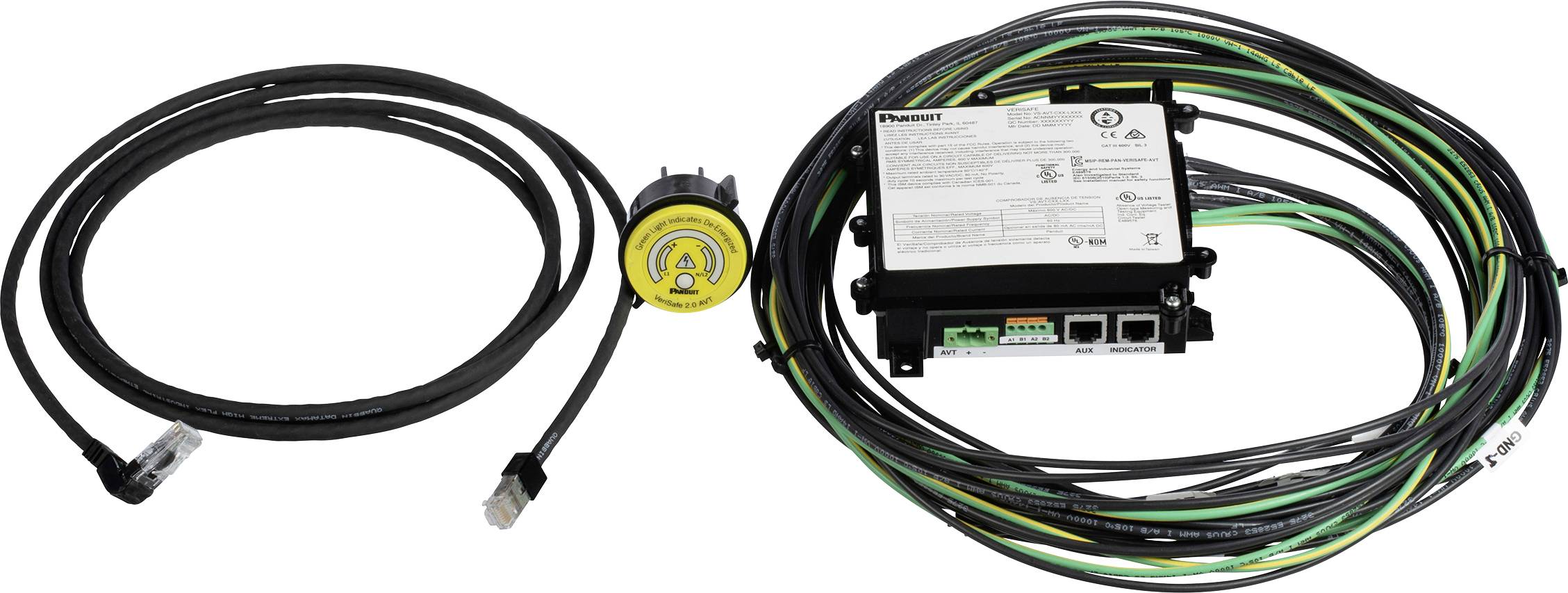

Scope of delivery
- Separating module
- System cable 2.4 m
- 3 m sensor cable
- Labels and display module
- Voltage tester
- VS2-AVT-1PF-08
