Particle counter PCE Instruments PCE-PCO 2-ICA Temperature, Humidity Thermometer, Datalogger function
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

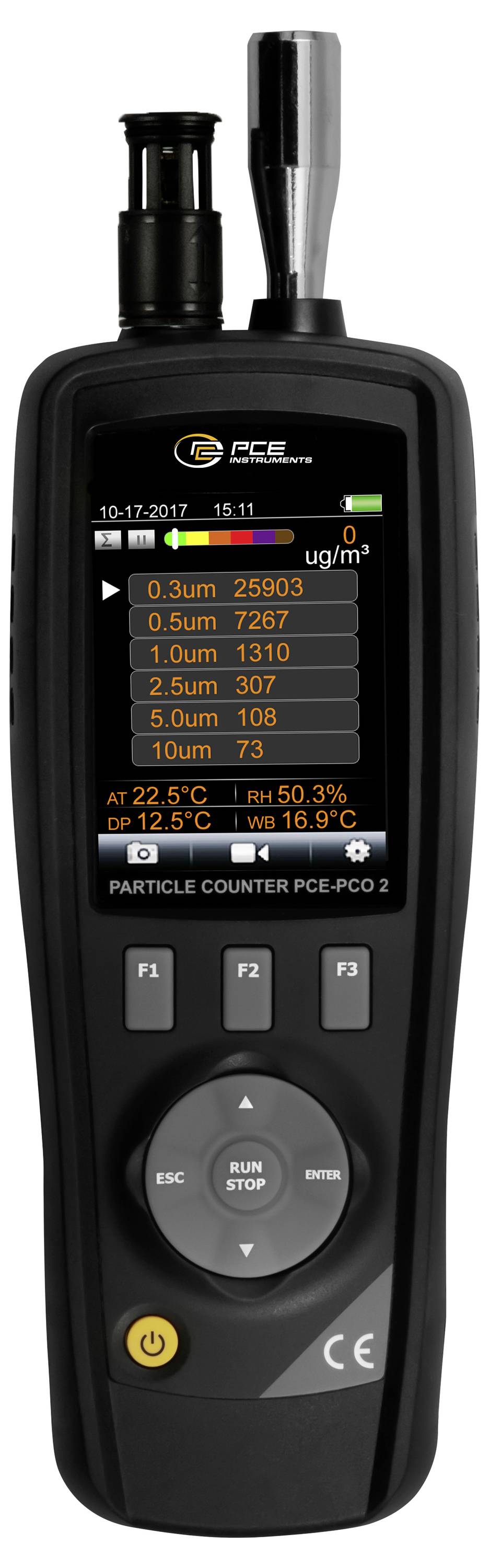

PCE instruments particle counter PCE-PCO 2-ICA
- 2.8 inch TFT color LCD display
- 320 x 240 pixels
- Automatic power off
- Determination of air temperature and air humidity
- Dew point and wet ball temperature
- Extreme value recording
- Records 8 particle sizes
- With camera
- Incl. ISO calibration certificate
Technical specifications
- Cross-cut
- Measurement channel sizes 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm
- Measurement range 0.3:10 µm
- Meter efficiency 50% at 0.3 µm, 100% at particle size greater than 0.45 µm
- Flow rate 2.83 l/min
- Coincidence error less than 5% at 2,000,000 particles per ft³
- Cross-cut
- Measuring range 0:2000 µg/m³
- Resolution 1 µg/m³
- Measurement channel sizes PM2.5, PM10
- Dew point
- Measurement range 0:10 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- Dew point
- Measurement range 10:40 °C
- Resolution 0.1 °C
- Accuracy: ±0.5 °C
- Dew point
- Measurement range 40:50 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- Humidity relative
- Measurement range 0:20 % r.F.
- Resolution 0.1 % r.h.
- Accuracy ±5 % r.h.
- Humidity relative
- Measurement range 20:40 % r.F.
- Resolution 0.1 % r.h.
- Accuracy ±3.5 % r.h.
- Humidity relative
- Measurement range 40:60 % r.F.
- Resolution 0.1 % r.h.
- Accuracy ±3 % r.h.
- Humidity relative
- Measurement range 60:80 % r.F.
- Resolution 0.1 % r.h.
- Accuracy ±3.5 % r.h.
- Humidity relative
- Measurement range 80:100 % r.F.
- Resolution 0.1 % r.h.
- Accuracy ±5 % r.h.
- Temperature
- Measurement range 0:10 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- Temperature
- Measurement range 10:40 °C
- Resolution 0.1 °C
- Accuracy: ±0.5 °C
- Temperature
- Measurement range 40:50 °C
- Resolution 0.1 °C
- Accuracy +/1 °C
- General Technical Data
- Display type LCD with lighting
- Display size 2.8 inches
- Display resolution: 320 x 240 pixel
- Storage medium Internal memory
- Storage capacity: 80 MB
- Memory capacity additional information Micro SD card, 5000 records
- Interface Mini-USB
- Sensor Laser-diffusing light
- Operating time 4 h
- Automatically switches off after 3 minutes
- Automatically switches off for up to 60 minutes
- Menu language: English (US), French, German, Spanish
- Protection class device IP20
- Connector type for device Euro plug
- Battery/battery 1 x 7.4 V internal, lithium-polymer rechargeable battery
- Capacity 1200 mAh
- Operating conditions 0:50 °C, 10:90 % r.h.
- Storage conditions 0:50 °C, 10:90 % r.h.
- Dimensions L x W x H 240 x 75 x 55 mm
- Weight 420 g
- Product type
Particle counter
- Reading range
0 - 100 RH
- Unit of measurement
Temperature
Humidity
- Resolution
1 %
- Features
Thermometer
Datalogger function
- Accuracy
1 %
- Weight
420 g/m
- Reading range (max.)
100 RH
- Reading range (min.)
0 RH
- Width
75 mm
- Height
55 mm
- Length
240 mm
IP20
ISO standards
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
Datasheet
Datasheet 3812660 Particle counter PCE Instruments PCE-PCO 2-ICA Temperature, Humidity Thermometer, Datalogger function
User & Safety Instructions
User & Safety Instructions 3812660 Particle counter PCE Instruments PCE-PCO 2-ICA Temperature, Humidity Thermometer, Datalogger function
Description
The particle counter can be used in various areas. The particle counter can measure the particle concentration as well as the mass concentration. A particle counter is used wherever there is a potential health hazard from fine dust. These include pollution from combustion, production, energy production, vehicle engine emissions and pollution generated by the construction industry.
In addition to particle counting, the particle counter also offers the possibility of determining the mass concentration. This means that in addition to PM2.5 and PM10, particle sizes 0.3, 0.5, 1.0, 2.5, 5.0 and 10 µm can also be measured. In addition to particle sizes, the particle counter has sensors for temperature and relative humidity. At the back of the particle counter, there is a camera that can be used to combine measurement data with image and video material. A high level of air pollution may occur in areas with high traffic. A particle counter can help disclose these contamination values. In places where there is increased contamination of the breathing air, there may be increased risks of respiratory diseases.
This text is machine translated.
In addition to particle counting, the particle counter also offers the possibility of determining the mass concentration. This means that in addition to PM2.5 and PM10, particle sizes 0.3, 0.5, 1.0, 2.5, 5.0 and 10 µm can also be measured. In addition to particle sizes, the particle counter has sensors for temperature and relative humidity. At the back of the particle counter, there is a camera that can be used to combine measurement data with image and video material. A high level of air pollution may occur in areas with high traffic. A particle counter can help disclose these contamination values. In places where there is increased contamination of the breathing air, there may be increased risks of respiratory diseases.
This text is machine translated.

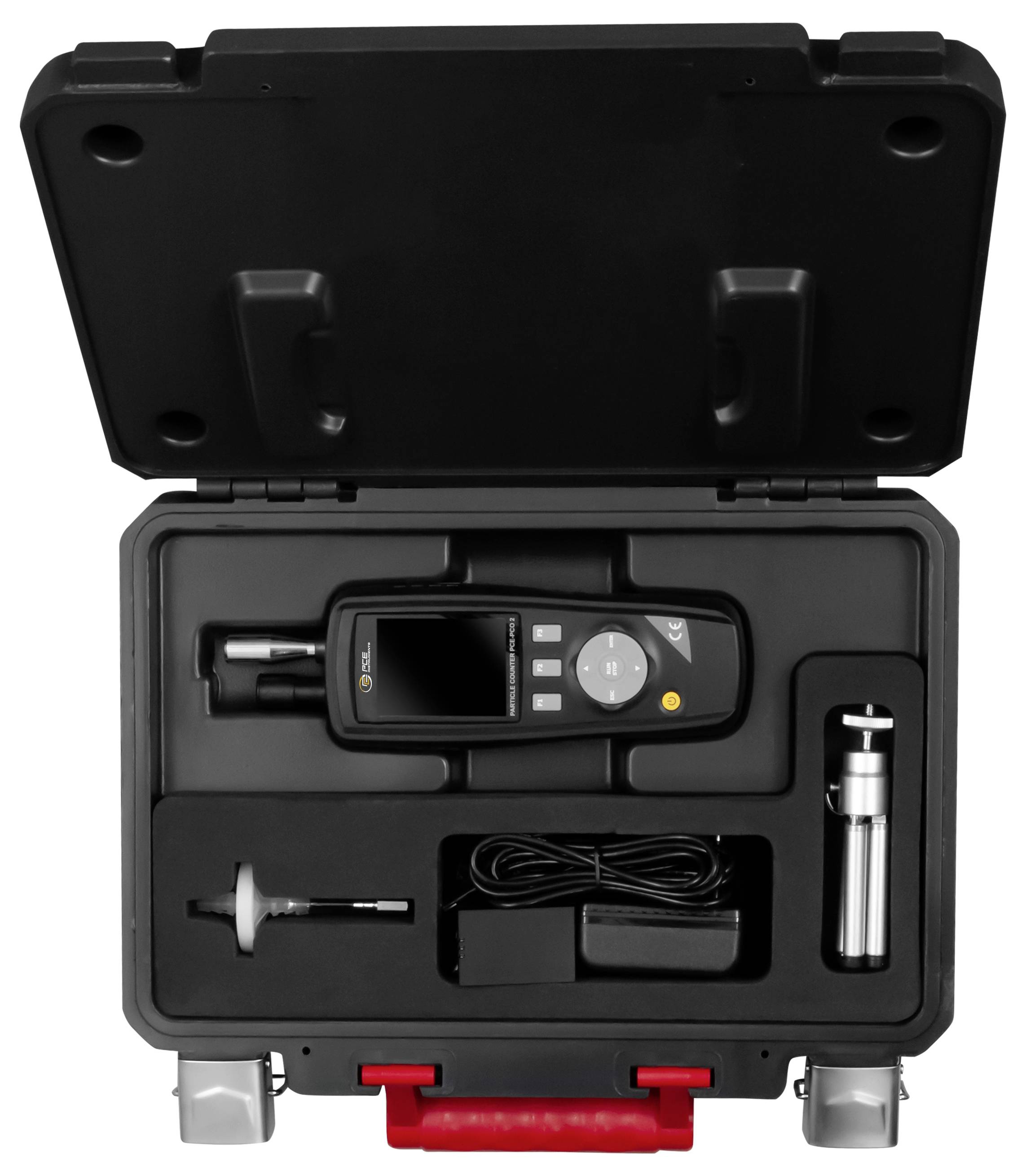

Scope of delivery
- 1 x particle counter PCE-PCO 2-ICA
- 1 x filters
- 1 x 7.4 V Li-Po battery
- 1 x charger 9 V / 1.5 A
- 1 x mini USB cable
- 1 x mini tripod
- 1 x transport case
- 1x user manual

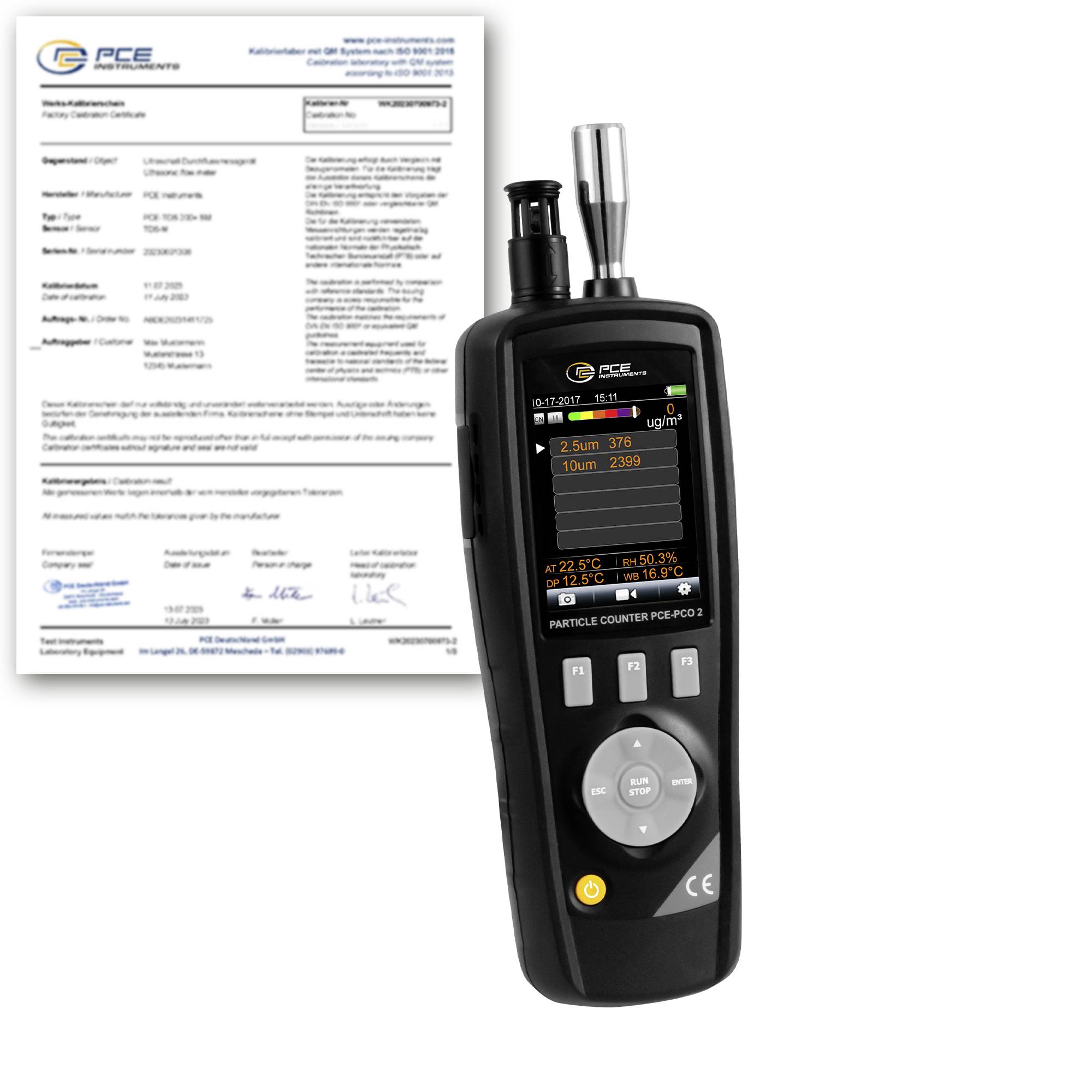

- 1 x ISO calibration certificate
