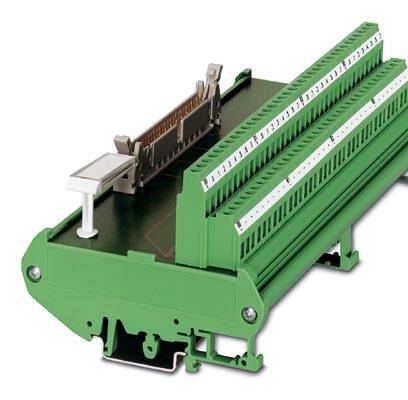

Passive module FLKM 50/32P/PLC 2291121 Phoenix Contact
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Transfer module
Total no. of pins
50
Connection
CEE 7/16 CEE plug
Stripping length (max.)
8 mm
Datasheet (PDF)
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Transfer module
- Total no. of pins
50
- Connection
CEE 7/16 CEE plug
- Stripping length (max.)
8 mm
- Connector (field)
Screws
- Connector (control)
IDC/FLK strip
- Content
1 pc(s)
- Number of pins
50
- Series
Varioface-FLKM
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (max.)
4 mm²
- Cross section (flexible) (min.)
0.2 mm²
- Cross section (inflexible) (min.)
0.2 mm²
- Features
Any orientation
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 788416 Passive module FLKM 50/32P/PLC 2291121 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 788416 Passive module FLKM 50/32P/PLC 2291121 Phoenix Contact
Description
VARIOFACE interface module, for 32 channels, each with an additional terminal block per signal for a common plus potential
