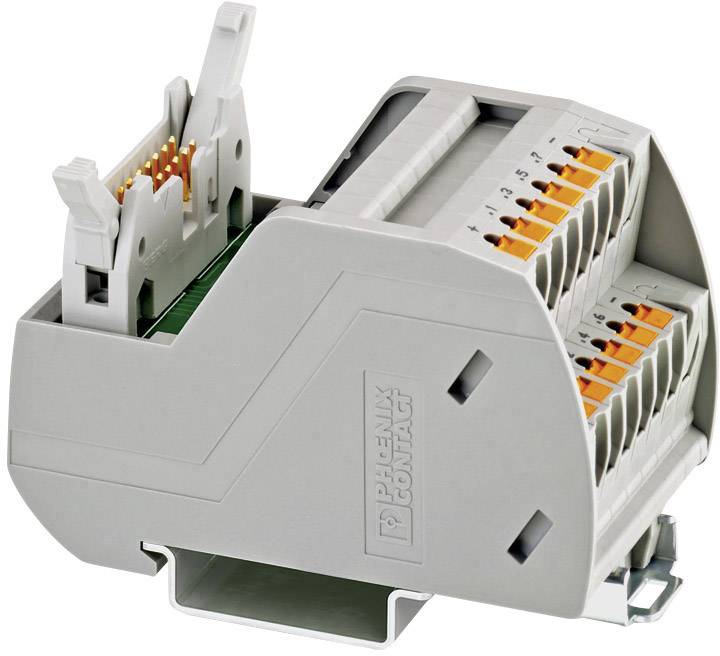

Passive module Varioface-VIP Phoenix Contact 2903801 VIP-2/PT/FLK14/PLC Content: 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Passive module
Total no. of pins
14
Connection
CEE 7/16 CEE plug
AWG
26 - 14
Datasheet (PDF)
Number
Total (€ 34.45 / piece)
€ 34.45
plus VAT.
14-day return policy included
Technical specifications
- Packaging type
Piece
- Product type
Passive module
- Total no. of pins
14
- Connection
CEE 7/16 CEE plug
26 - 14
- Stripping length (max.)
8 mm
- Dim
(L x W x H) 56 x 41.90 x 72.10 mm
- Connector (field)
Pull spring
- Connector (control)
IDC/FLK strip
- Operating current
3 A
- Content
1 pc(s)
- Number of pins
14
- Width
41.90 mm
- Height
72.10 mm
- Length
56 mm
- Series
Varioface-VIP
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Cross section (flexible) (max.)
2.50 mm²
- Cross section (inflexible) (max.)
2.50 mm²
- Cross section (flexible) (min.)
0.14 mm²
- Cross section (inflexible) (min.)
0.14 mm²
- Features
TS 35 socket
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1563908 Passive module Varioface-VIP Phoenix Contact 2903801 VIP-2/PT/FLK14/PLC Content: 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1563908 Passive module Varioface-VIP Phoenix Contact 2903801 VIP-2/PT/FLK14/PLC Content: 1 pc(s)
