Patlite Light LED NE-24A-R NE-24A-R Red Red Non-stop light signal 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)

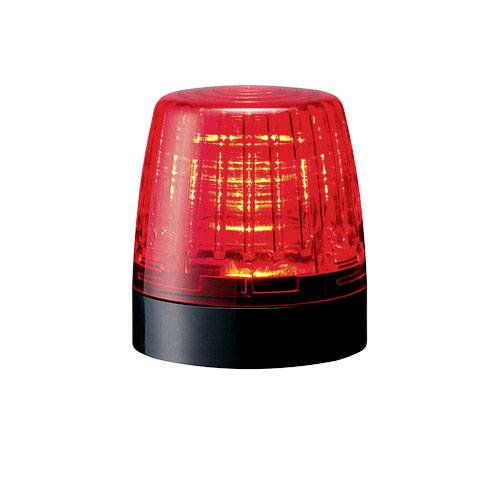

Patlite NE-24A-R LED indicator lamp red
Technical specifications
- Series: Ne-24A
- Conductor cross-section: Rigid: 0.2 mm² - 1.5 mm²
- WIRE CROSS-SECTION AWG: AWG 28 - AWG 14
- Dielectric strength: 500 V/AC
- Mounting location: Indoor
- Installation direction: All directions
- Mounting method: 2-point hole
- Wiring method: Spring-loaded terminal
- Buzzer: Without buzzer
- Applicable standards: UL 508, CSA-C22.2 No. 14
- Product type
Light
- Series
NE-24
- Operating voltage
24 V DC
- Max. current consumption
26 mA
- Colour
Red
- (Ø)
56 mm
- Height
61 mm
- Features
LED
IP66
- Dim
(Ø x H) 56 mm x 61 mm
- Factory colour
Red
- Case colour
Red
- Lighted picture
Permanent light
- Signal type
Non-stop light signal
- Type
NE-24A-R
- Weight
0.0600 kg
- Calotte colour
Red
- Max. temperature
+50 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248072 Patlite Light LED NE-24A-R NE-24A-R Red Red Non-stop light signal 24 V DC
User & Safety Instructions
User & Safety Instructions 2248072 Patlite Light LED NE-24A-R NE-24A-R Red Red Non-stop light signal 24 V DC
Description
Ne-A - 56mm Signal lamp
The LED signal lamp is available as a single-colored as well as multi-colored model with a capacitive touch sensor and robust housing for use in different environments.
This text is machine translated.
The LED signal lamp is available as a single-colored as well as multi-colored model with a capacitive touch sensor and robust housing for use in different environments.
