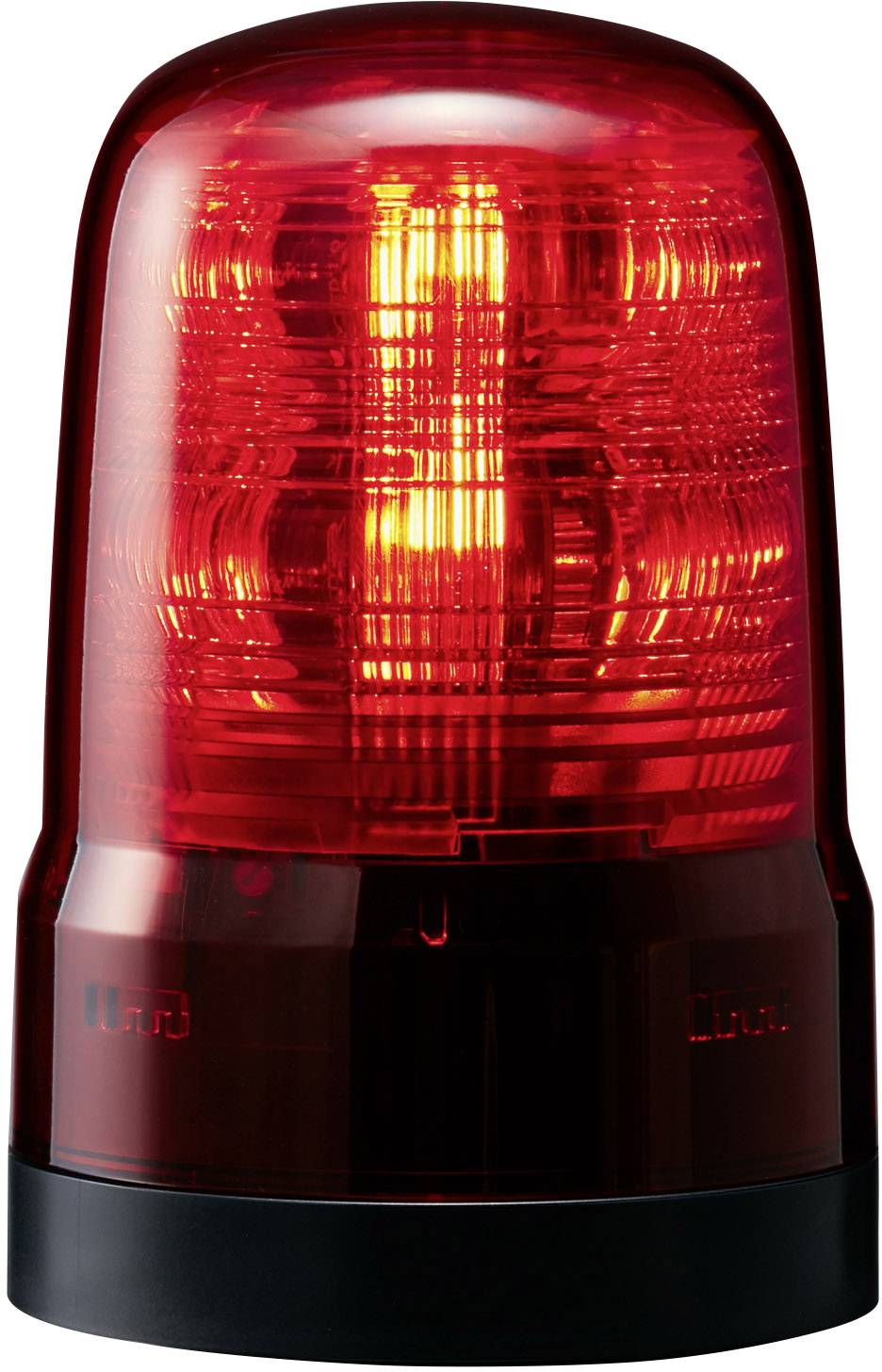

Patlite Light LED SF08-M1KTN-R SF08-M1KTN-R Red Red Emergency light 12 V DC, 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series: SF
- Flash rate: Single flash (60 flashes per minute)
- Double flash (90 flashes per minute)
- Triple flash (120 flashes per minute)
- Pulse pattern (20 flashes per minute)
- Conductor cross-section Starr: 0.13 mm² - 1.5 mm²
- WIRE CROSS-SECTION AWG: AWG 28 - AWG 14
- Dielectric strength: 4000 V/AC
- Mounting location: Indoor/outdoor
- Installation direction: Upright
- Mounting method: 2-point hole
- Wiring method: Spring-loaded terminal
- Buzzer: Without buzzer
- Mounting distance 35.5 mm
- Material (glove / body): PC
- Applicable standards: UL/cUL, CE, KC, EAC
- Product type
Light
- Operating voltage
12 V DC
24 V DC
- Max. current consumption
320 mA
- Colour
Red
- (Ø)
80 mm
- Features
LED
- Flash rate
180 flashes/min
IP66
- Dim
(Ø) 80 mm
- Factory colour
Red
- Case colour
Red
- Lighted picture
LED permanent/flashing
- Material
Polycarbonate (PC)
- Signal type
Emergency light
- Type
SF08-M1KTN-R
- Weight
0.385
- Calotte colour
Red
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Product type description
Lampe
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248132 Patlite Light LED SF08-M1KTN-R SF08-M1KTN-R Red Red Emergency light 12 V DC, 24 V DC
User & Safety Instructions
User & Safety Instructions 2248132 Patlite Light LED SF08-M1KTN-R SF08-M1KTN-R Red Red Emergency light 12 V DC, 24 V DC
Description
High effectiveness
of this maintenance-free design without motor generates LED animations, including simulated rotation, flash light and pulsating effects.
The SF model was developed with the new multi-Fresnel lens from PATLITE. This thin, hard lens collects and diffuses light more effectively than conventional lenses.
Wide range of light patterns
Select from 22 light patterns to specify different status according to your needs. The light pattern can be easily configured by adjusting the rotary switch and wiring channels.
[ Usage examples ]
- Reduce brightness at night
- Adjust flash speed according to urgency
- Adjust rotation speed according to danger
This text is machine translated.
