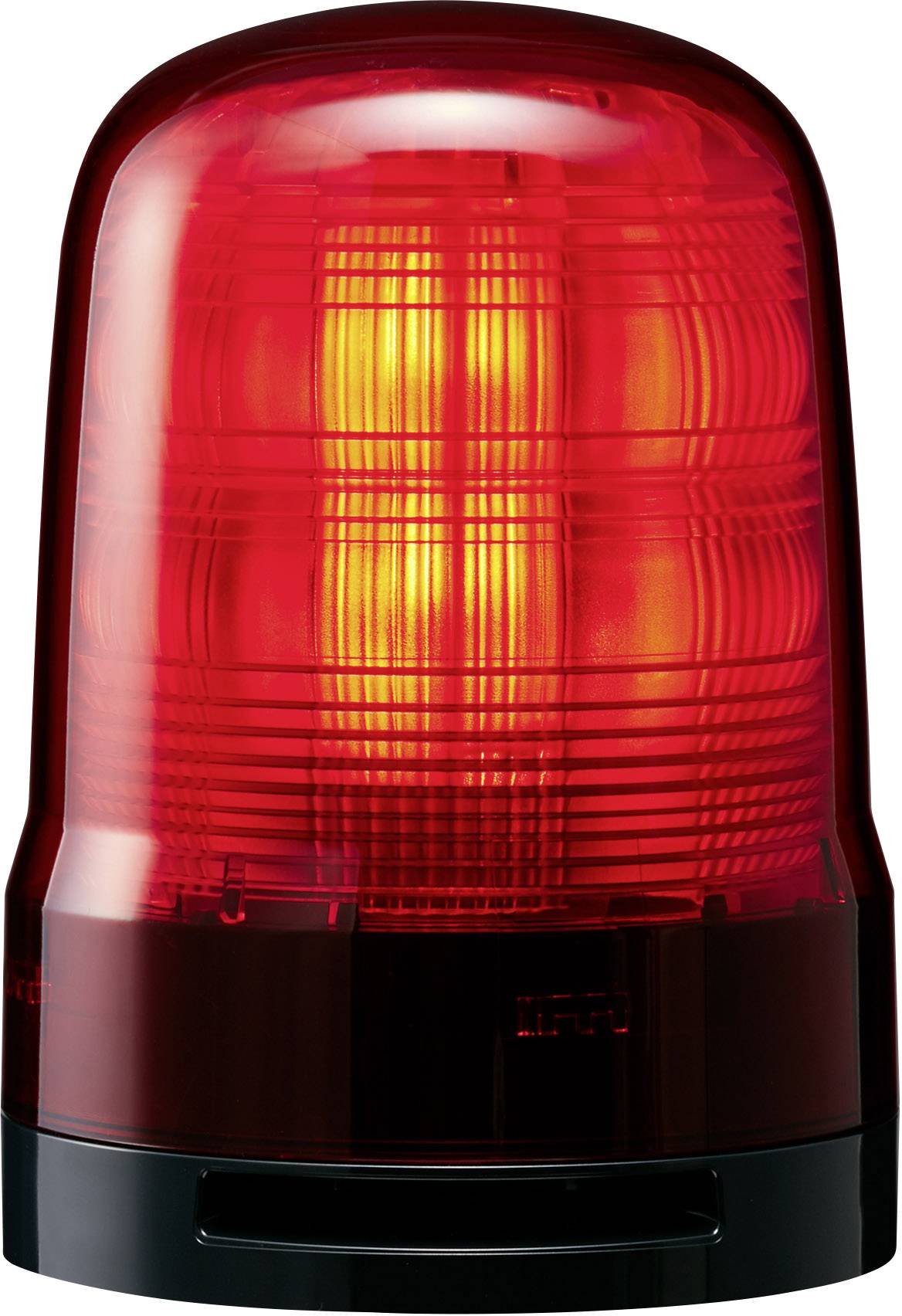

Patlite Light LED SF10-M1KTB-R SF10-M1KTB-R Red Red Emergency light 12 V DC, 24 V DC 88 dB
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series: SF
- Flash rate: Single flash (60 flashes per minute)
- Double flash (90 flashes per minute)
- Triple flash (120 flashes per minute)
- Pulse pattern (20 flashes per minute)
- Conductor cross-section Starr: 0.13 mm² - 1.5 mm²
- WIRE CROSS-SECTION AWG: AWG 28 - AWG 14
- Dielectric strength: 4000 V/AC
- Mounting location: Indoor/outdoor
- Installation direction: Upright
- Mounting method: 2-point hole
- Wiring method: Spring-loaded terminal
- Buzzer: With buzzer
- Mounting distance 55 mm
- Material (glove / body): PC
- Applicable standards: UL/cUL, CE, KC, EAC
- Product type
Light
- Operating voltage
12 V DC
24 V DC
- Max. current consumption
340 mA
- Colour
Red
- (Ø)
100 mm
- Height
140 mm
- Features
LED
- Flash rate
180 flashes/min
IP66
- Dim
(Ø x H) 100 mm x 140 mm
- Factory colour
Red
- Case colour
Red
- Lighted picture
LED permanent/flashing
- Material
PC
- Signal type
Emergency light
- Type
SF10-M1KTB-R
- Noise emission (max.)
88 dB
- Weight
0.4000 kg
- Calotte colour
Red
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Acoustic signal
With buzzer
- Product type description
Lampe
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248142 Patlite Light LED SF10-M1KTB-R SF10-M1KTB-R Red Red Emergency light 12 V DC, 24 V DC 88 dB
User & Safety Instructions
User & Safety Instructions 2248142 Patlite Light LED SF10-M1KTB-R SF10-M1KTB-R Red Red Emergency light 12 V DC, 24 V DC 88 dB
Description
High effectiveness
This maintenance-free design without motor generates LED animations, including simulated rotation, flash light and pulsating effects.
The SF model was developed with the new multi-Fresnel lens from PATLITE. This thin, hard lens collects and diffuses light more effectively than conventional lenses.
Wide range of light patterns
Choose from 22 light patterns to specify different states as needed. The light pattern can be easily configured by adjusting the rotary switch and wiring channels.
[ Usage examples ]
- Reduce brightness at night
- Adjust the flash speed according to the urgency
- Adjust rotation speed according to hazard
This text is machine translated.
This maintenance-free design without motor generates LED animations, including simulated rotation, flash light and pulsating effects.
The SF model was developed with the new multi-Fresnel lens from PATLITE. This thin, hard lens collects and diffuses light more effectively than conventional lenses.
Wide range of light patterns
Choose from 22 light patterns to specify different states as needed. The light pattern can be easily configured by adjusting the rotary switch and wiring channels.
[ Usage examples ]
- Reduce brightness at night
- Adjust the flash speed according to the urgency
- Adjust rotation speed according to hazard
This text is machine translated.
