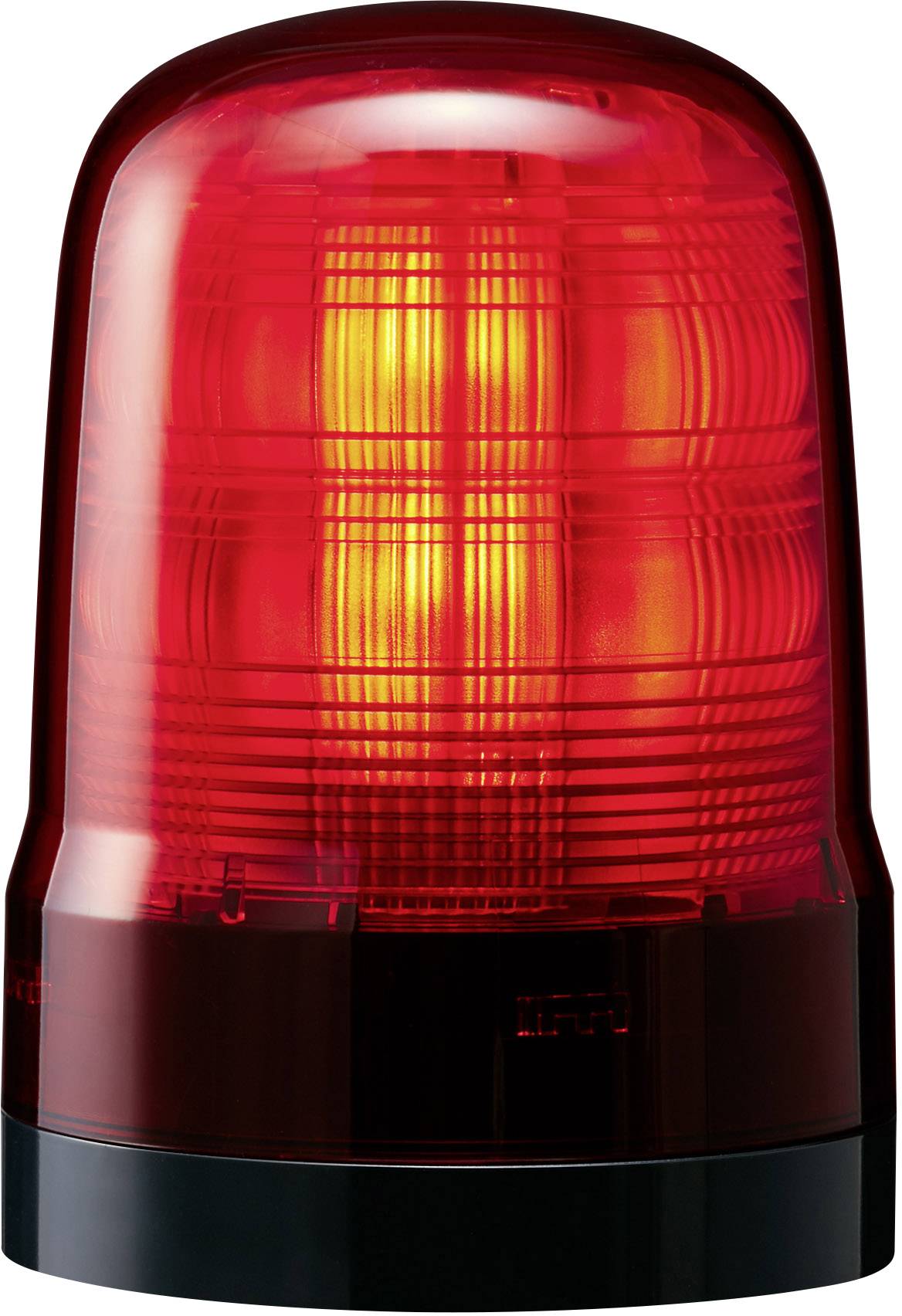

Patlite Light LED SF10-M2KTN-R SF10-M2KTN-R Red Red Emergency light 100 V AC, 240 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series: SF
- Flash rate: Single flash (60 flashes per minute)
- Double flash (90 flashes per minute)
- Triple flash (120 flashes per minute)
- Pulse pattern (20 flashes per minute)
- Conductor cross-section Starr: 0.13 mm² - 1.5 mm²
- WIRE CROSS-SECTION AWG: AWG 28 - AWG 14
- Dielectric strength: 4000 V/AC
- Mounting location: Indoor/outdoor
- Installation direction: Upright
- Mounting method: 2-point hole
- Wiring method: Spring-loaded terminal
- Buzzer: Without buzzer
- Mounting distance 55 mm
- Material (glove / body): PC
- Applicable standards: UL/cUL, CE, KC, EAC
- Product type
Light
- Operating voltage
100 V AC
240 V AC
- Max. current consumption
80 mA
- Colour
Red
- (Ø)
100 mm
- Features
LED
- Flash rate
180 flashes/min
IP66
- Dim
(Ø) 100 mm
- Factory colour
Red
- Case colour
Red
- Lighted picture
LED permanent/flashing
- Material
PC
- Signal type
Emergency light
- Type
SF10-M2KTN-R
- Weight
0.000
- Calotte colour
Red
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Product type description
Lampe
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248144 Patlite Light LED SF10-M2KTN-R SF10-M2KTN-R Red Red Emergency light 100 V AC, 240 V AC
User & Safety Instructions
User & Safety Instructions 2248144 Patlite Light LED SF10-M2KTN-R SF10-M2KTN-R Red Red Emergency light 100 V AC, 240 V AC
Description
High effectiveness
of this maintenance-free design without motor generates LED animations, including simulated rotation, flash light and pulsating effects.
The SF model was developed with the new multi-Fresnel lens from PATLITE. This thin, hard lens collects and diffuses light more effectively than conventional lenses.
Wide range of light patterns
Select from 22 light patterns to specify different status according to your needs. The light pattern can be easily configured by adjusting the rotary switch and wiring channels.
[ Usage examples ]
- Reduce brightness at night
- Adjust flash speed according to urgency
- Adjust rotation speed according to danger
