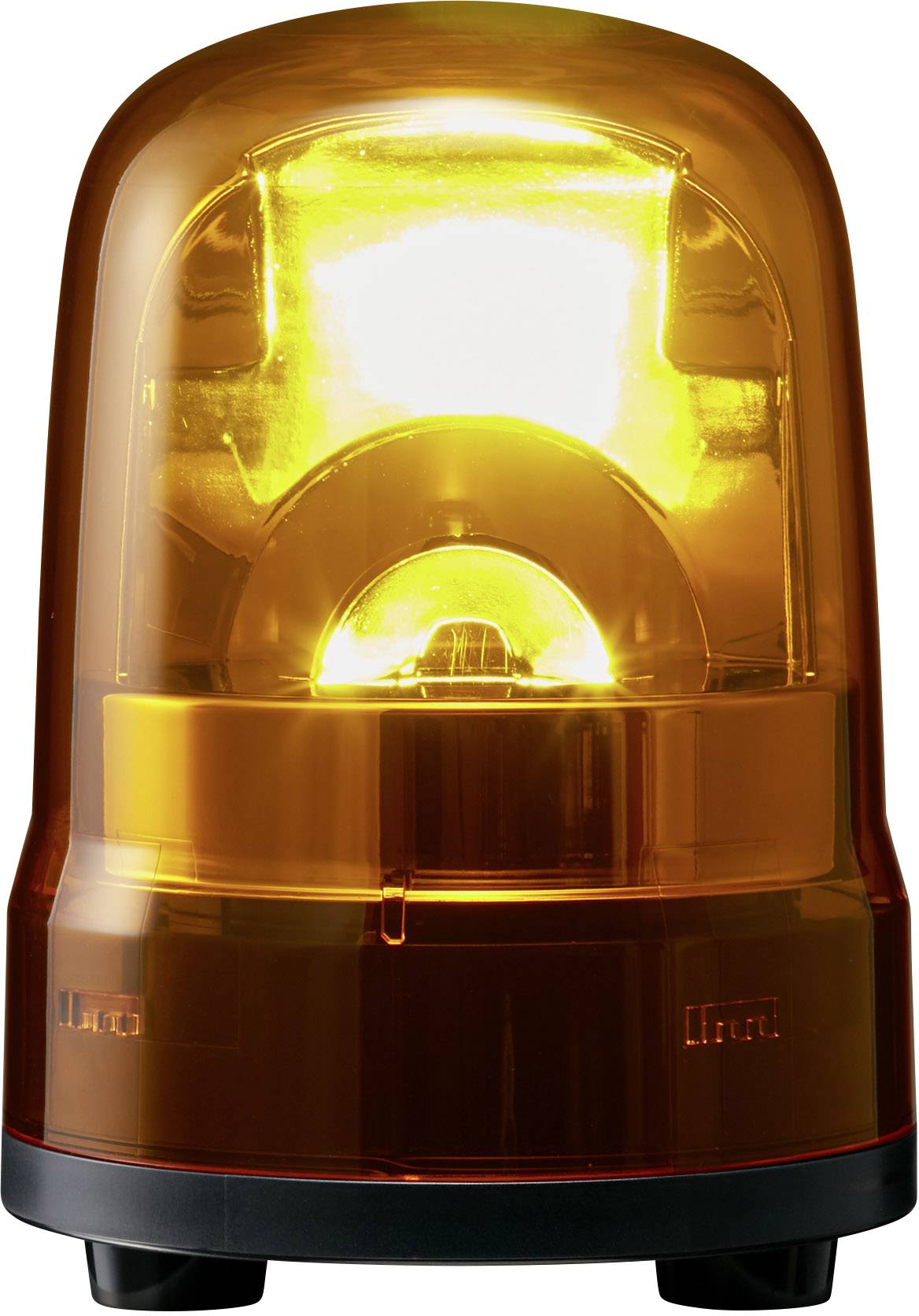

Patlite Light LED SKH-M2T-Y SKH-M2T-Y Yellow Yellow Emergency light 100 V AC, 240 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series: SK
- Conductor cross-section Starr: 0.13 mm² - 1.5 mm²
- WIRE CROSS-SECTION AWG: AWG 28 - AWG 14
- Dielectric strength: 4000 V/AC
- Mounting location: Indoor/outdoor
- Mounting method: 3 screws
- Wiring method: Spring-loaded terminal
- Buzzer: Without buzzer
- Mounting distance 70 mm
- Material (glove / body): PC
- Applicable standards: UL/cUL, CE, PSE, KC, EAC
- Product type
Light
- Operating voltage
100 V AC
240 V AC
- Max. current consumption
40 mA
- Colour
Yellow
- (Ø)
100 mm
- Features
LED
IP23
IP65
- Dim
(Ø) 100 mm
- Factory colour
Yellow
- Case colour
Yellow
- Lighted picture
Rotating mirror
- Material
PC
- Signal type
Emergency light
- Type
SKH-M2T-Y
- Calotte colour
Yellow
- Max. temperature
+50 °C
- Min. temperature
-10 °C
Documents & Downloads
Datasheet
Datasheet 2248089 Patlite Light LED SKH-M2T-Y SKH-M2T-Y Yellow Yellow Emergency light 100 V AC, 240 V AC
User & Safety Instructions
User & Safety Instructions 2248089 Patlite Light LED SKH-M2T-Y SKH-M2T-Y Yellow Yellow Emergency light 100 V AC, 240 V AC
Description
Robust and reliable
, the SK model is equipped with a brushless motor that generates less heat than a conventional motor and has a longer service life.
The steel ball bearing on the bottom of the reflector is designed in such a way that the wear is significantly reduced and that a quiet rotation of the reflector is ensured.
Better visibility
of this newly developed dual reflector allows for brighter, evenly distributed light.
The light-emitting surface provides for maximum visibility and effective visual signals.
Through its comprehensive light rotation, the SK model can emit efficient visual signals in emergency situations.
Thanks to the long-life LED in the SK model, it is used as a permanently active warning light in 24-hour car parks where no parking attendant is present.
The SK model is mounted here on a driverless transport system. The rotating light is active when the system is in motion to prevent accidents when people approach it.
