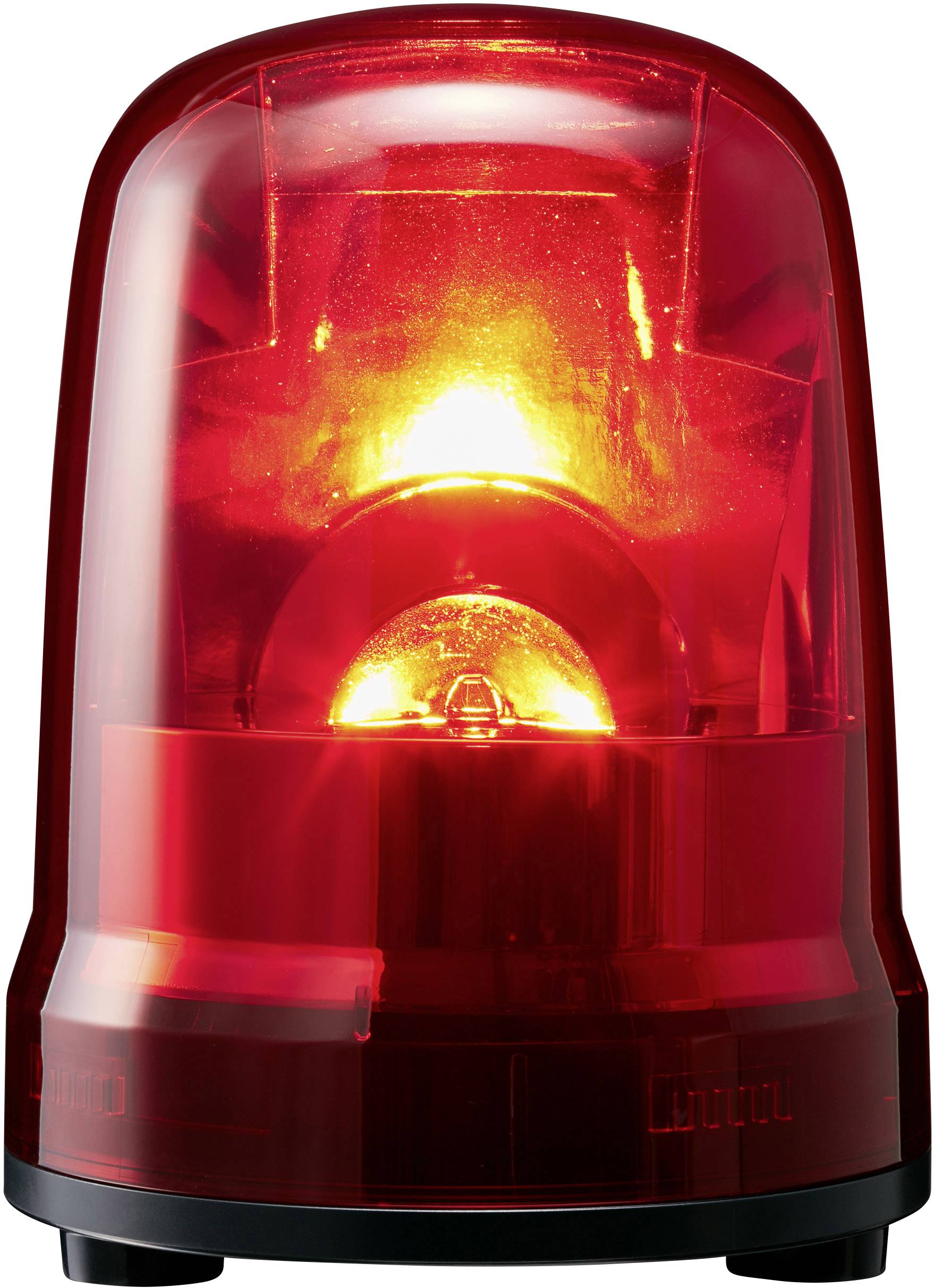

Patlite Light LED SKP-M2J-R SKP-M2J-R Red Red Emergency light 100 V AC, 240 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series: SK
- Flashing rate: 120 rpm
- Dielectric strength: 4000 V/AC
- Mounting location: Indoor/outdoor
- Mounting method: 3 screws
- Wiring method: Cable
- Buzzer: Without buzzer
- Installation distance 120 mm
- Material (glove / body): PC
- Applicable standards: UL/cUL, CE, PSE, KC, EAC
- Product type
Light
- Operating voltage
100 V AC
240 V AC
- Max. current consumption
40 mA
- Colour
Red
- (Ø)
150 mm
- Features
LED
- Flash rate
120 flashes/min
IP23
- Dim
(Ø) 150 mm
- Factory colour
Red
- Case colour
Red
- Lighted picture
Rotating mirror
- Material
PC
- Signal type
Emergency light
- Type
SKP-M2J-R
- Weight
0.000
- Calotte colour
Red
- Max. temperature
+50 °C
- Min. temperature
-10 °C
- Product type description
Lampe
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248096 Patlite Light LED SKP-M2J-R SKP-M2J-R Red Red Emergency light 100 V AC, 240 V AC
User & Safety Instructions
User & Safety Instructions 2248096 Patlite Light LED SKP-M2J-R SKP-M2J-R Red Red Emergency light 100 V AC, 240 V AC
Description
Robust and reliable
, the SK model is equipped with a brushless motor that generates less heat than a conventional motor and has a longer service life.
The steel ball bearing on the bottom of the reflector is designed in such a way that the wear is significantly reduced and that a quiet rotation of the reflector is ensured.
Better visibility
of this newly developed dual reflector allows for brighter, evenly distributed light.
The light-emitting surface provides for maximum visibility and effective visual signals.
Through its comprehensive light rotation, the SK model can emit efficient visual signals in emergency situations.
Thanks to the long-life LED in the SK model, it is used as a permanently active warning light in 24-hour car parks where no parking attendant is present.
The SK model is mounted here on a driverless transport system. The rotating light is active when the system is in motion to prevent accidents when people approach it.
