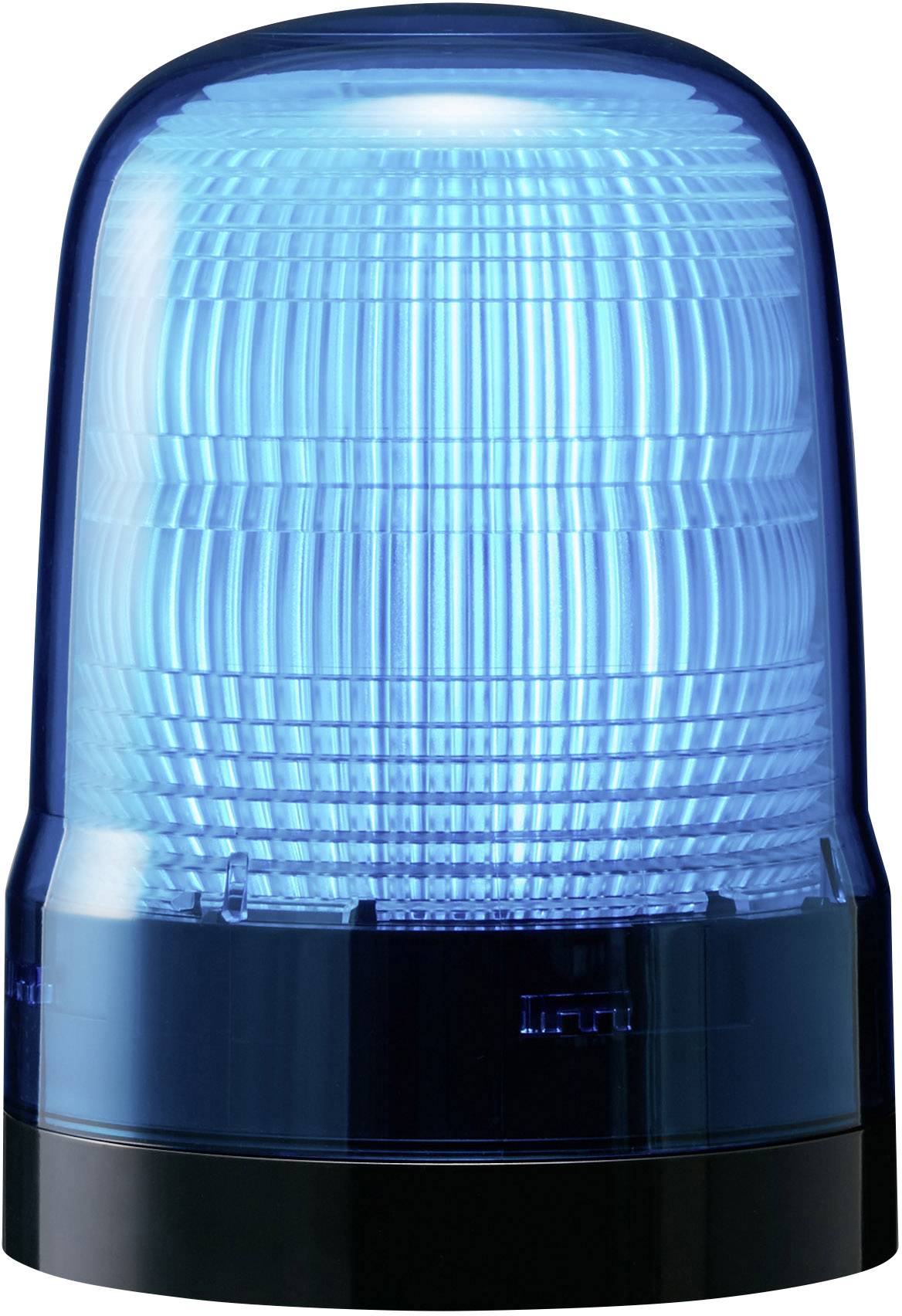

Patlite Light SL10-M2KTN-B SL10-M2KTN-B Blue Blue Flasher 100 V AC, 240 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Series: SL
- Flashing rate: Flashing (180 flashes per minute)
- Triple flash (120 flashes per minute)
- Conductor cross-section Starr: 0.13 mm² - 1.5 mm²
- WIRE CROSS-SECTION AWG: AWG 28 - AWG 14
- Dielectric strength: 4000 V/AC
- Mounting location: Indoor/outdoor
- Installation direction: Upright
- Mounting method: 2-point hole
- Wiring method: Spring-loaded terminal
- Buzzer: Without buzzer
- Mounting distance 55 mm
- Material (glove / body): PC
- Applicable standards: UL/cUL, CE, KC, EAC
- Product type
Light
- Operating voltage
100 V AC
240 V AC
- Max. current consumption
40 mA
- Colour
Blue
- (Ø)
100 mm
- Height
140 mm
- Flash rate
180 flashes/min
IP66
- Dim
(Ø x H) 100 mm x 140 mm
- Factory colour
Blue
- Case colour
Blue
- Lighted picture
Flashing light
- Material
PC
- Signal type
Flasher
- Type
SL10-M2KTN-B
- Light intensity
69 cd
- Weight
0.3700 kg
- Calotte colour
Blue
- Max. temperature
+50 °C
- Min. temperature
-20 °C
- Product type description
Lampe
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2248121 Patlite Light SL10-M2KTN-B SL10-M2KTN-B Blue Blue Flasher 100 V AC, 240 V AC
User & Safety Instructions
User & Safety Instructions 2248121 Patlite Light SL10-M2KTN-B SL10-M2KTN-B Blue Blue Flasher 100 V AC, 240 V AC
Description
Comprehensive visibility
The newly developed Fresnel lens ensures uniform overall luminosity, even from above.
Compared to competitor products, the SL model has a larger, light-emitting surface with a luminous intensity of more than 5 times as high.
