Paulmann 70527 Controller 6 A 24 24 V (L x W x H) 50 x 50 x 22 mm 1 Set
EAN:
Part number:
Item no:
Product type
Controller
Operating voltage
24 V
Length
50 mm
Energy efficiency rating
n.rel.
Type
Controller Tunable White included IR remote DC 24V max. 144W white
Highlights & Details
MaxLED Controller Tunable White incl. IR remote DC 24V max. 144W white
- MaxLED controller 24 VWhite light control from warm white to daylight whiteRemote control included
Technical specifications
- Product type
Controller
- Type
Controller Tunable White included IR remote DC 24V max. 144W white
- Connection
Plug
- Number of pins
5
- Operating voltage
24 V
- Operating current
6 A
- Factory colour
White
- LED features
adjustable
- Width
50 mm
- Height
22 mm
- Length
50 mm
- Depth
35 mm
- Dim
(L x W x H) 50 x 50 x 22 mm
- No. of outputs
1 x
- Output voltage (min.)
24 V
- Output voltage (max.)
24 V
- Max. output current
6 A
n.rel.
- Protection class
III
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2814047 Paulmann 70527 Controller 6 A 24 24 V (L x W x H) 50 x 50 x 22 mm 1 Set
Warranty Terms
Warranty Terms 2814047 Paulmann 70527 Controller 6 A 24 24 V (L x W x H) 50 x 50 x 22 mm 1 Set
Description
The MaxLED Tunable White Controller with Memory Effect serves as an extension of the MaxLED system. MaxLED individual strips can be controlled using a Tunable White white lighting controller. Shortened strips can be used further without having to buy another basic set. Thus you can build an individual system with transformer, controller and strips. The memory function stores the selected light color until the next time you switch it on.
This text is machine translated.
This text is machine translated.
Features
- White light control from warm white to daylight whiteSimple connection system for easy installationIncl. remote control for switching, dimming, control, and programmingNo visible contact between remote control and receiver requiredIncluding daisy chainsIncl. 5-pin plug for easy connection of the strips
Scope of delivery

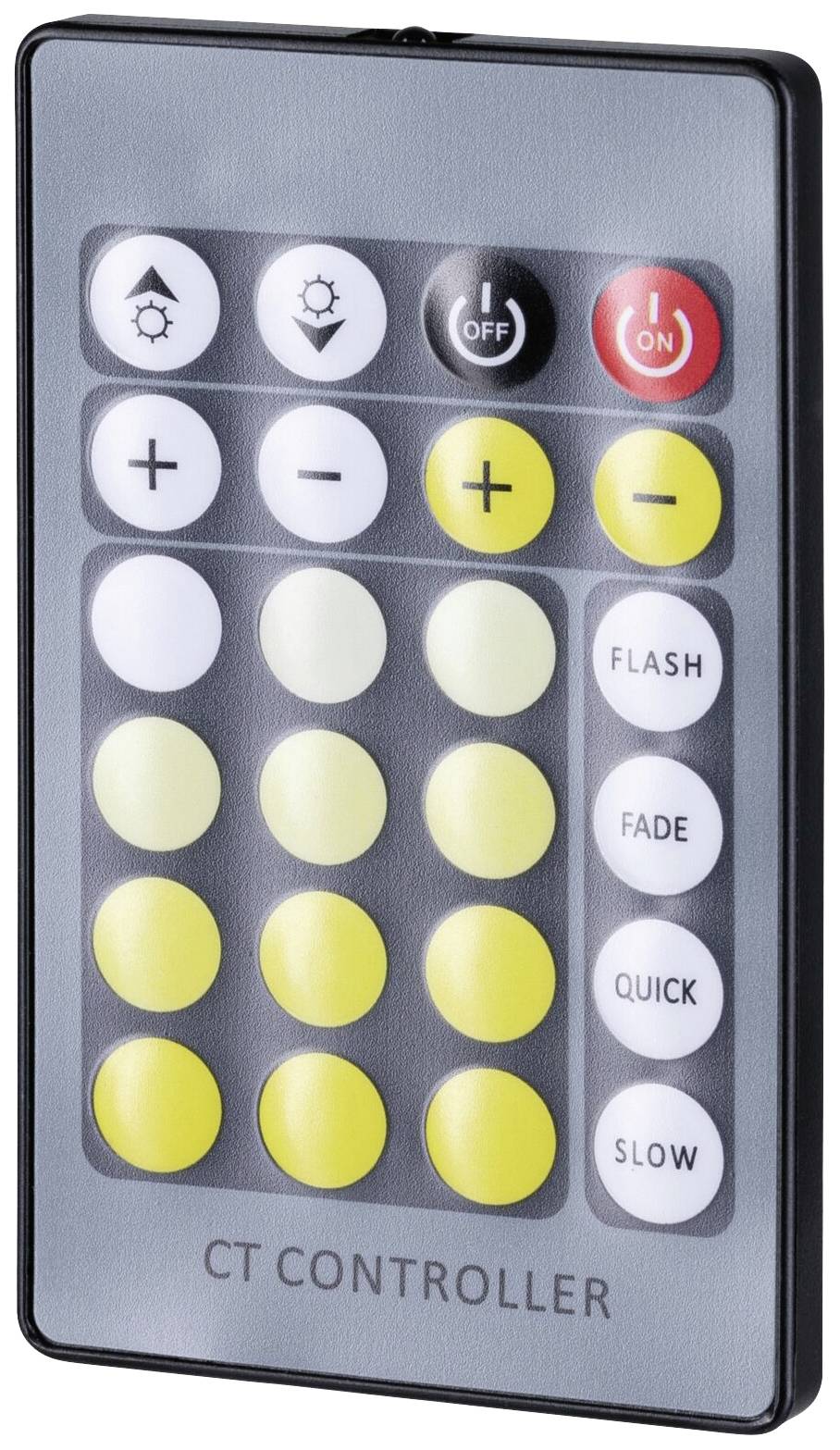

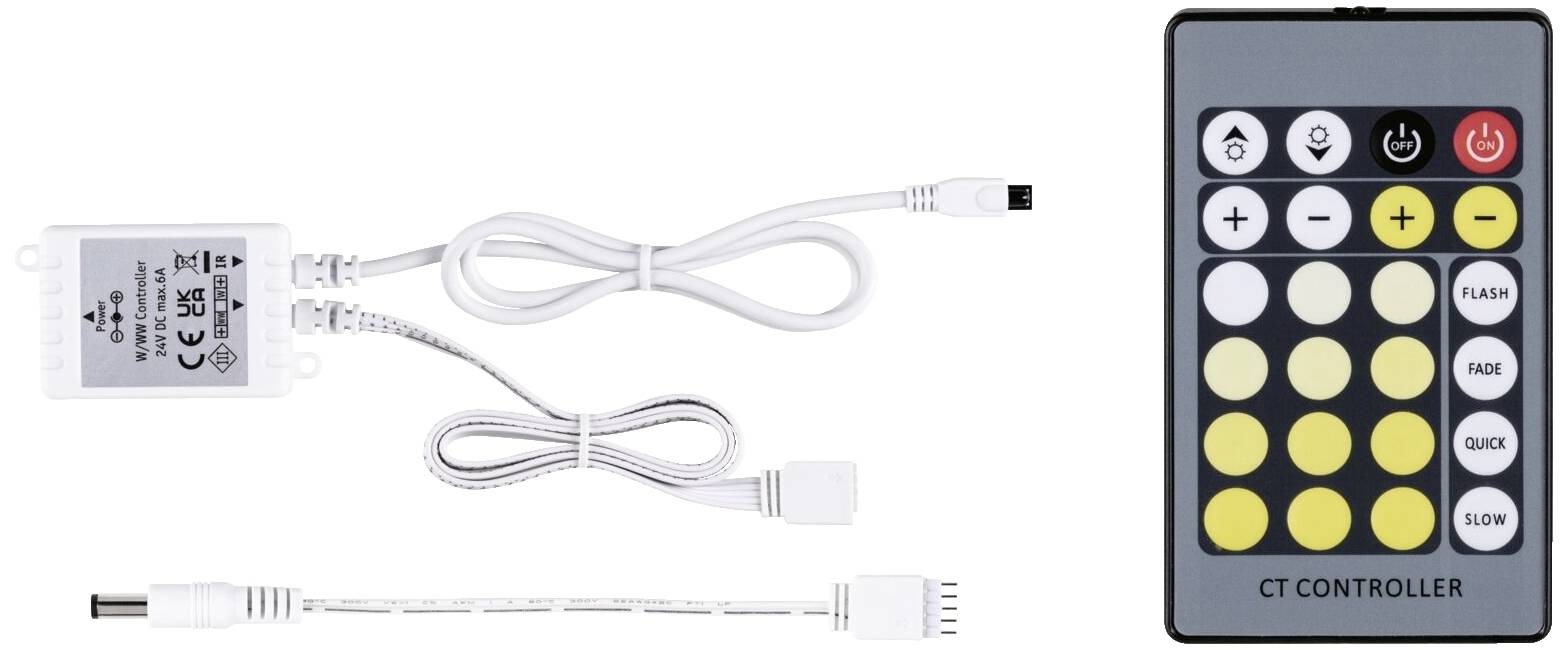

- MaxLED Controller Tunable White incl. IR remote DC 24V max. 144W white
- User manual.
