Paulmann 70532 LED strip basic set + plug 230 V 3 m Warm white 1 Set
EAN:
Part number:
Item no:
Product type
LED strip basic set
Connectors (LED strips)
+ plug
LED strip features
Remote control
Colour
Warm white
Total luminous flux
3060 lm
Highlights & Details
MaxLED 1000 LED strip Tunable White Base Set 3M IP44 32W 1020lm/m 108LEDs/m Tunable White 60VA
- Power= 32 W Total luminous flux= 3060 lm Colour temperature type= 2700 K Warm white
Technical specifications
- Product type
LED strip basic set
- Connectors (LED strips)
+ plug
- LED strip features
Remote control
- Factory colour
Silver
- Colour
Warm white
- Min. colour temperature
2700 K
- Colour temperature type
2700 K
- Total luminous flux
3060 lm
- Use
Inside/outside
- Colour temperature (max.)
6500 K
32 W
- Colour rendering index
80 Ra
- Luminous flux (Φ)
3060 lm
- Luminous flux (Φ) per unit
1000 lm
- Operating voltage
230 V
- Connection
Plug
- Dim
(L x W x H) 3 m x 12.5 mm x 3 mm
- Power consumption
38 W
- LEDs
324
- Width
12.5 mm
- Height
3 mm
- Length
3 m
- Unit length
300 cm
IP44
n.rel.
Yes
- RoHS-compliant
Yes
- Protection class
III
- Colour temperature (max.)
6500 K
- Output voltage
24 V
2700 K
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2814036 Paulmann 70532 LED strip basic set + plug 230 V 3 m Warm white 1 Set
Warranty Terms
Warranty Terms 2814036 Paulmann 70532 LED strip basic set + plug 230 V 3 m Warm white 1 Set
Description

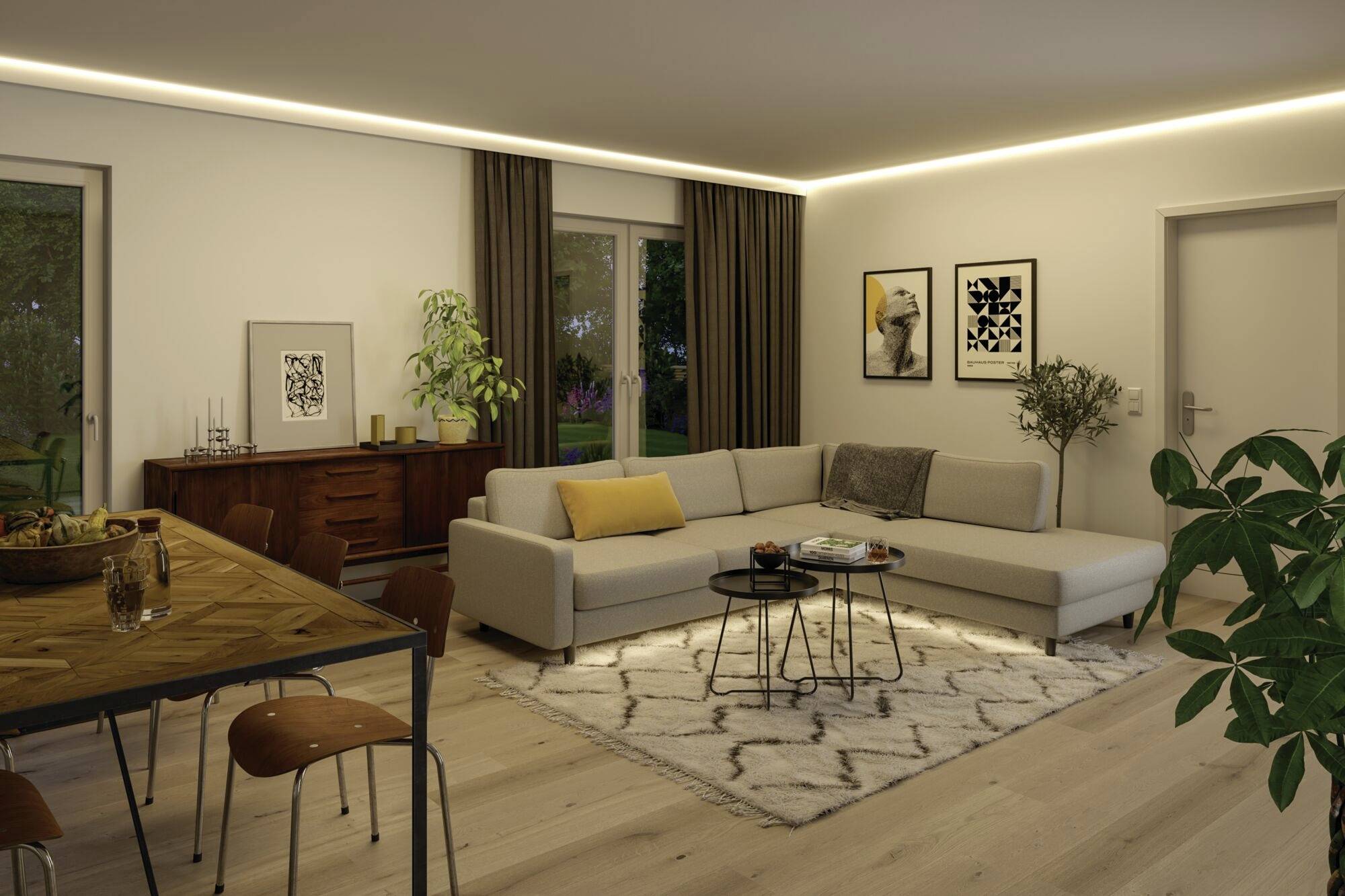

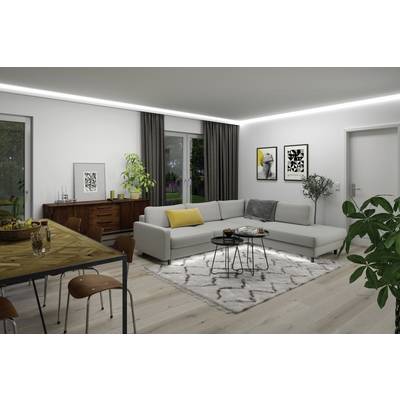

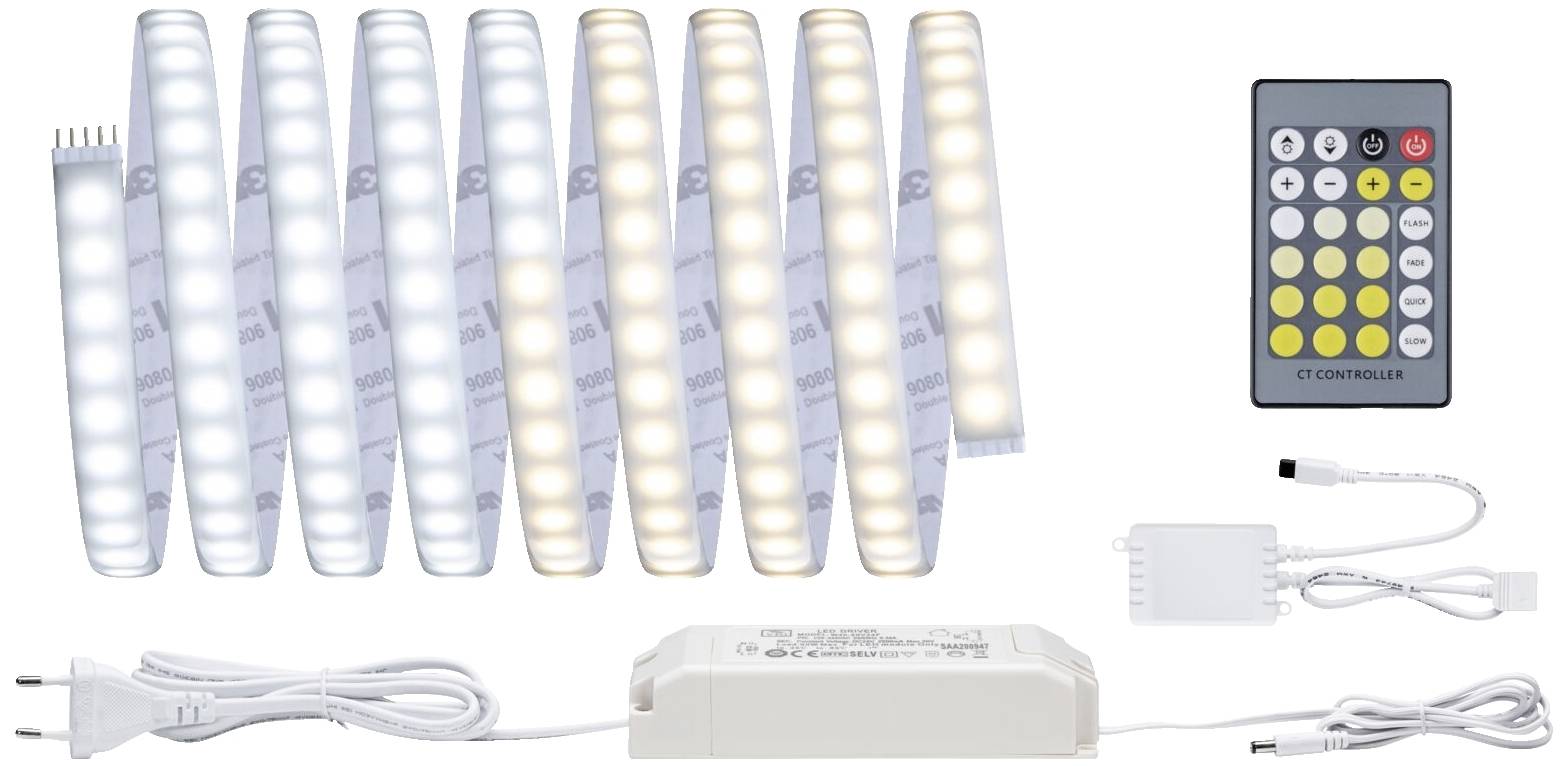

The 3M strip has a light intensity of ~ 1000lm/m and can therefore be used as an ambient lighting. It is a real highlight especially in profiles. The strip's intelligent white light control system enables you to adjust the color of the strip individually - from daylight-white working lights to warm-white relaxation lighting. The starter kit contains next to the strip, a remote control, a receiver and a suitable ballast. It can be extended with additional strips and connectors as needed. The specified maximum length must not be exceeded.
This text is machine translated.
This text is machine translated.
Features
- Tunable White offers a continuous selection from warm white to daylight whiteComplete set inclusive Strip, Power supply and remote controlIP protection IP44 - splash-proofCoating protects against splash water and dustSimple connection system for easy installationSelf-adhesive backing for easy installationFlexible material for mounting on flat or domed surfacesColour temperature 2700K - Warm white up to 6500K - Daylight whiteLED technology saves up to 80% power as compared to conventional light bulbsIncl. 5-pin plug for easy connection of the stripsCan be shortened as required
Scope of delivery
- MaxLED 1000 LED strip Tunable White Base Set 3M IP44 32W 1020lm/m 108LEDs/m Tunable White 60VA
- User manual.
