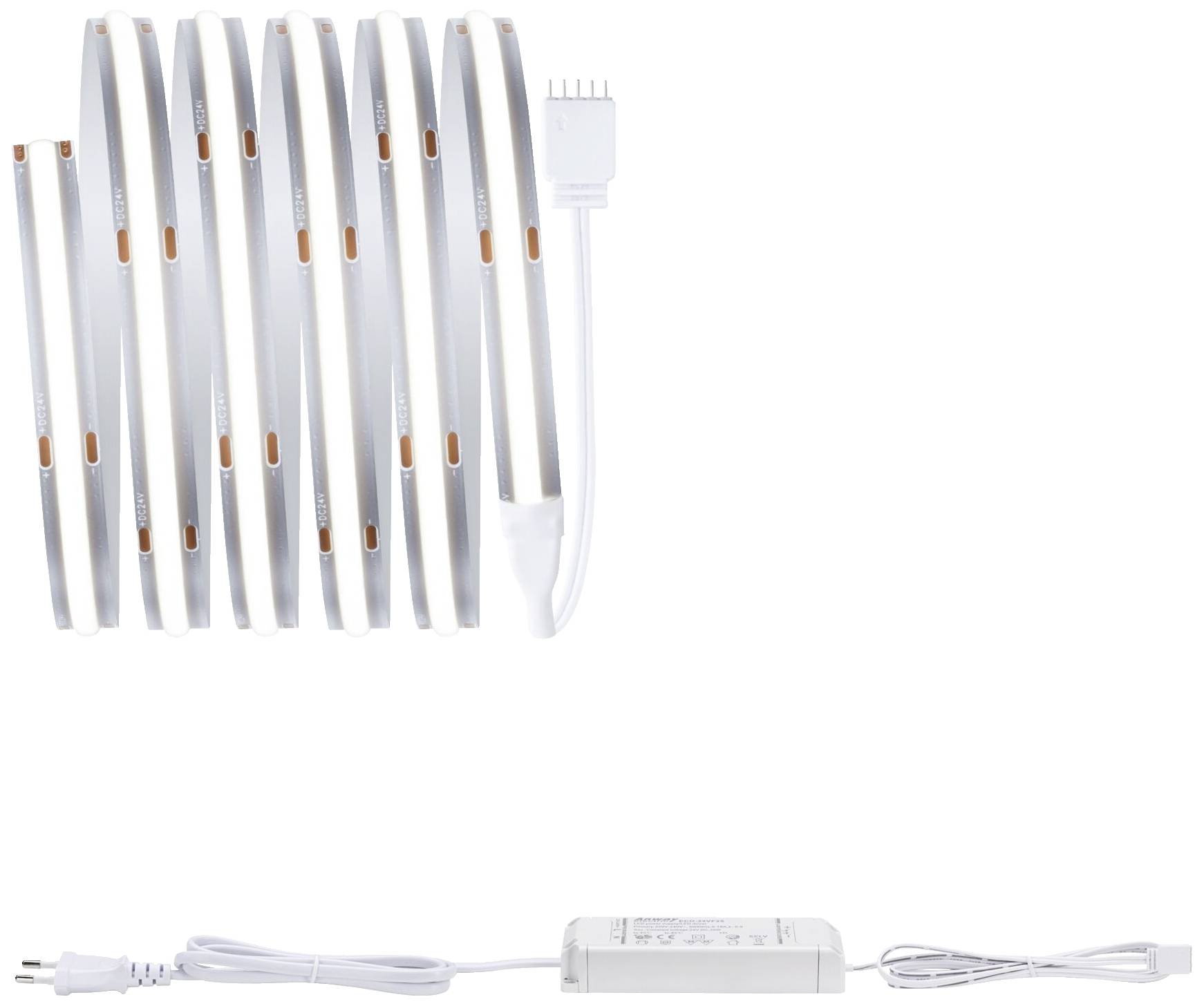

Paulmann 71123 LED strip basic set 230 V 1.5 m Daylight white 1 Set
EAN:
Part number:
Item no:
Product type
LED strip basic set
Colour
Daylight white
Total luminous flux
900 lm
Colour temperature (max.)
6500 K
Power
10 W
Highlights & Details
MaxLED 500 LED strip full line COB basic set 1.5m/m 480LEDs/m 6500K 25VA
- Power= 10 W Total luminous flux= 900 lm Colour temperature type= 6500 K Daylight white
Technical specifications
- Product type
LED strip basic set
- Factory colour
Silver
- Colour
Daylight white
- Colour temperature type
6500 K
- Total luminous flux
900 lm
- Colour temperature (max.)
6500 K
10 W
- Colour rendering index
80 Ra
- Luminous flux (Φ) per unit
900 lm
- Operating voltage
230 V
- Dim
(L x W x H) 1.5 m x 10 mm x 1.6 mm
- Power consumption
12 W
- LEDs
720
- Width
10 mm
- Height
1.6 mm
- Length
1.5 m
IP20
n.rel.
Yes
- RoHS-compliant
Yes
- Protection class
II
- Cable length
1.50 m
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2814025 Paulmann 71123 LED strip basic set 230 V 1.5 m Daylight white 1 Set
Warranty Terms
Warranty Terms 2814025 Paulmann 71123 LED strip basic set 230 V 1.5 m Daylight white 1 Set
Description
The MaxLED 500 Full-Line COB strips are perfect as a glare-free working light, whether you are working in the kitchen, workshop or other work areas. The MaxLED 500 COB basic set with 10W, with a length of 1.5 m and 480 LEDs/m produces an absolutely homogeneous light image without visible light points. Seamless linking is possible through the light connector and continues the linear light image without interruption. The basic set contains a strip of 5-pin adapter which enables the connection to all MaxLED accessories and control components. The Strip is particularly narrow with 8 mm and fits in very delicate LED profiles. The wide beam angle of 180° distributes the light optimally without formation of shadows. The consistent phosphor layer protects the LEDs from dust and moisture, the contact points have IP20. The neutral white basic set can be easily expanded with the matching single strip.
This text is machine translated.
This text is machine translated.
Features
- Colour temperature 6500K – daylight whiteComplete set inclusive Strip and Power supplyCan be shortened as requiredCoating protects against splash water and dustSimple connection system for easy installationSelf-adhesive backing for easy installationIncl. 5-pin plug for easy connection of the strips
Scope of delivery
- MaxLED 500 LED strip full line COB basic set 1.5m/m 480LEDs/m 6500K 25VA
- User manual.
