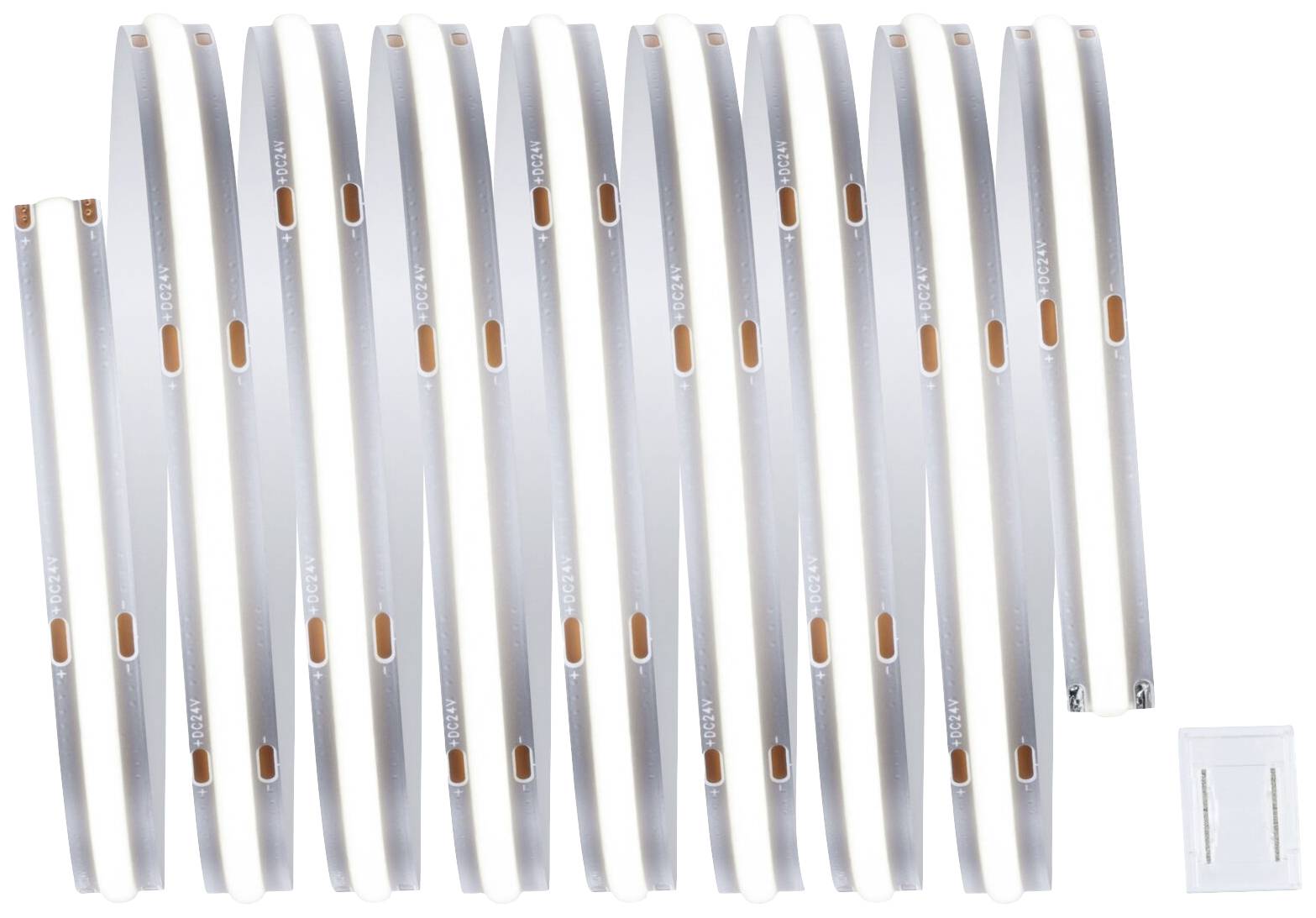

Paulmann 71125 LED strip + plug 24 V 2.5 m Daylight white 2.5 m
EAN:
Part number:
Item no:
Product type
LED strip
Connectors (LED strips)
+ plug
LED strip features
Can be shortened
Colour
Daylight white
Total luminous flux
1500 lm
Highlights & Details
MaxLED 500 LED strip full-line COB single strip 2.5m 15W 600lm/m 480LEDs/m 6500K
- Power= 15 W Total luminous flux= 1500 lm Colour temperature type= 6500 K Daylight white
Technical specifications
- Product type
LED strip
- Connectors (LED strips)
+ plug
- LED strip features
Can be shortened
- Factory colour
Silver
- Colour
Daylight white
- Min. colour temperature
6500 K
- Colour temperature type
6500 K
- Total luminous flux
1500 lm
- Colour temperature (max.)
6500 K
15 W
- Colour rendering index
80 Ra
- Radiation angle
180°
- Operating voltage
24 V
- Dim
(L x W x H) 2.5 m x 10 mm x 1.6 mm
- Power consumption
15 W
- Power consumption per unit
15 W
- LEDs
1200
- LED number per unit
480
- Width
10 mm
- Height
1.6 mm
- Length
2.5 m
IP20
n.rel.
Yes
- RoHS-compliant
Yes
- Protection class
III
- Cable length
2.50 m
- Output voltage
24 V
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2814027 Paulmann 71125 LED strip + plug 24 V 2.5 m Daylight white 2.5 m
Warranty Terms
Warranty Terms 2814027 Paulmann 71125 LED strip + plug 24 V 2.5 m Daylight white 2.5 m
Description
The MaxLED 500 Full-Line COB strips are perfect as a glare-free working light, whether you are working in the kitchen, workshop or other work areas. The MaxLED 500 COB single strip with 15W, a length of 2.5m and 480 LED´s/m produces an absolutely homogeneous light image without visible light spots. The neutral white single strip is an extension to the MaxLED 500 COB basic set and contains a light connector next to the strip. Seamless linking is possible through the light connector and continues the linear light image without interruption. The Strip is particularly narrow with 8 mm and fits in very delicate LED profiles. The wide beam angle of 180° distributes the light optimally without formation of shadows. The consistent phosphor layer protects the LEDs from dust and moisture, the contact points have IP20.
This text is machine translated.
This text is machine translated.
Features
- For extending the MaxLED basic kitsCan be shortened as requiredColour temperature 6500K – daylight whiteCoating protects against splash water and dustSimple connection system for easy installationSelf-adhesive backing for easy installationIncl. 5-pin plug for easy connection of the strips
Scope of delivery
- MaxLED 500 LED strip full-line COB single strip 2.5m 15W 600lm/m 480LEDs/m 6500K
- User manual.
