Paulmann 71130 L-connector 0.6 W (max) 24 (max.) 24 V (L x W x H) 30 x 10 x 1.6 mm Piece 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
L-connector
Operating voltage
24 V
Length
30 mm
Energy efficiency rating
n.rel.
Highlights & Details
MaxLED 1000 LED Strip Full Line COB Edge 0m 0.6W 2133lm/m 800LEDs/m 6500K
- Power= 0.6 W Total luminous flux= 64 lm Colour temperature type= 6500 K Daylight white
Technical specifications
- Packaging type
Piece
- Product type
L-connector
- Type
Corner 90°
- Connection
Plug
- Number of pins
5
- Operating voltage
24 V
- Max. power
0.6 W
0.6 W
- Factory colour
Silver
IP20
- Width
10 mm
- Height
1.6 mm
- Length
30 mm
- Depth
10 mm
- Dim
(L x W x H) 30 x 10 x 1.6 mm
- Output voltage (max.)
24 V
- RoHS-compliant
Yes
n.rel.
- Colour
Daylight white
Yes
- Colour rendering index
80 Ra
- Colour temperature type
6500 K
- Luminous flux (Φ) per unit
64 lm
- Total luminous flux
64 lm
- Output voltage
24 V
- Power consumption
0.6 W
- Protection class
III
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2814034 Paulmann 71130 L-connector 0.6 W (max) 24 (max.) 24 V (L x W x H) 30 x 10 x 1.6 mm Piece 1 pc(s)
Warranty Terms
Warranty Terms 2814034 Paulmann 71130 L-connector 0.6 W (max) 24 (max.) 24 V (L x W x H) 30 x 10 x 1.6 mm Piece 1 pc(s)
Description

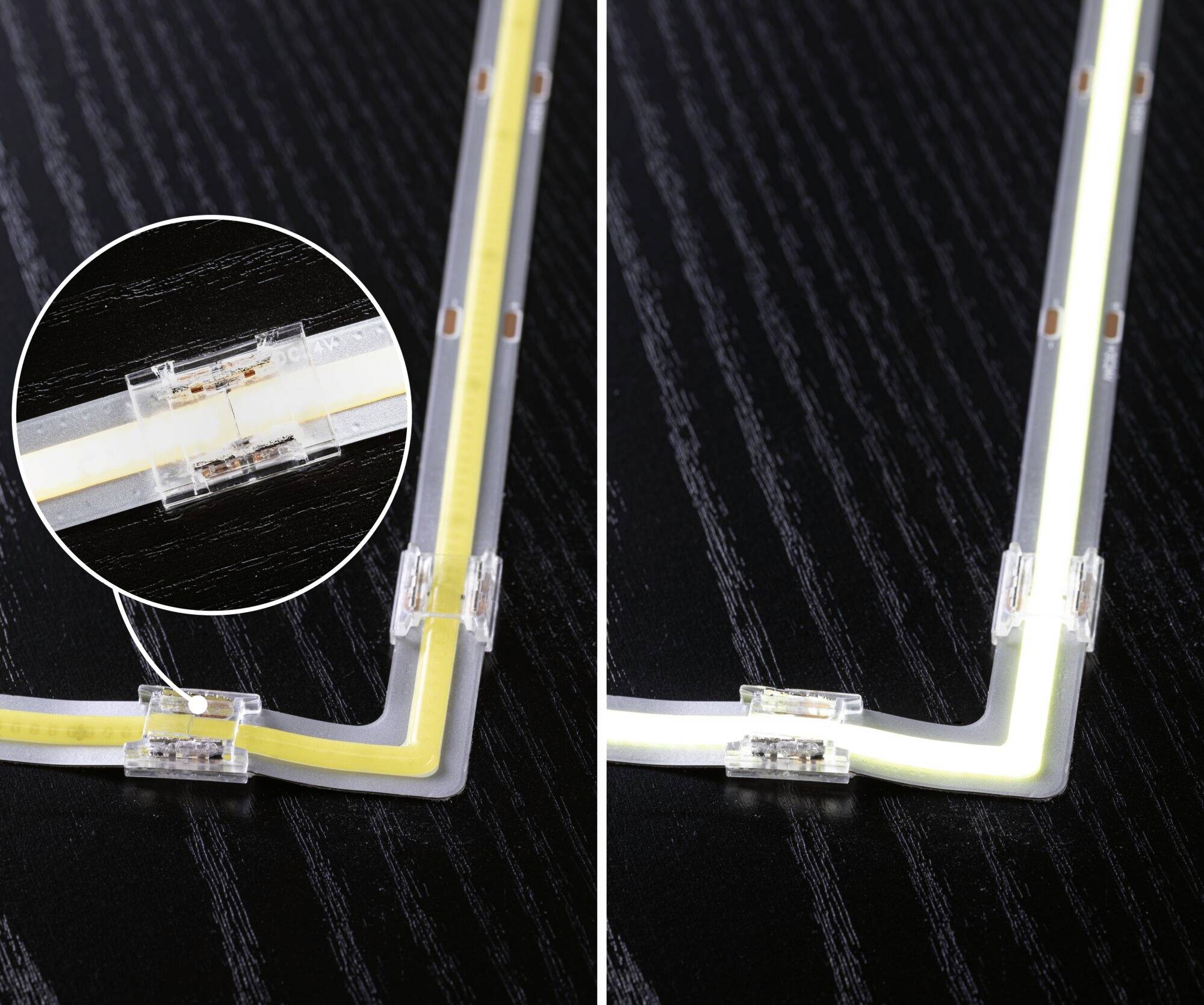

The MaxLED 1000 Edge Full-Line COB corners are the perfect supplement for a MaxLED 1000 Full-Line COB light concept, which is to be installed over a corner. With the COB corners for daylight-white strips, these can be moved around 90° without interruption in the light picture. Each corner is delivered inclusive of two light connectors for connection The corner can be universally connected in both directions left or right. Whether at the kitchen, workshop or other work areas, the MaxLED 1000 full-line COB strips are so powerful that they can be easily used to illuminate rooms.
This text is machine translated.
This text is machine translated.
Features

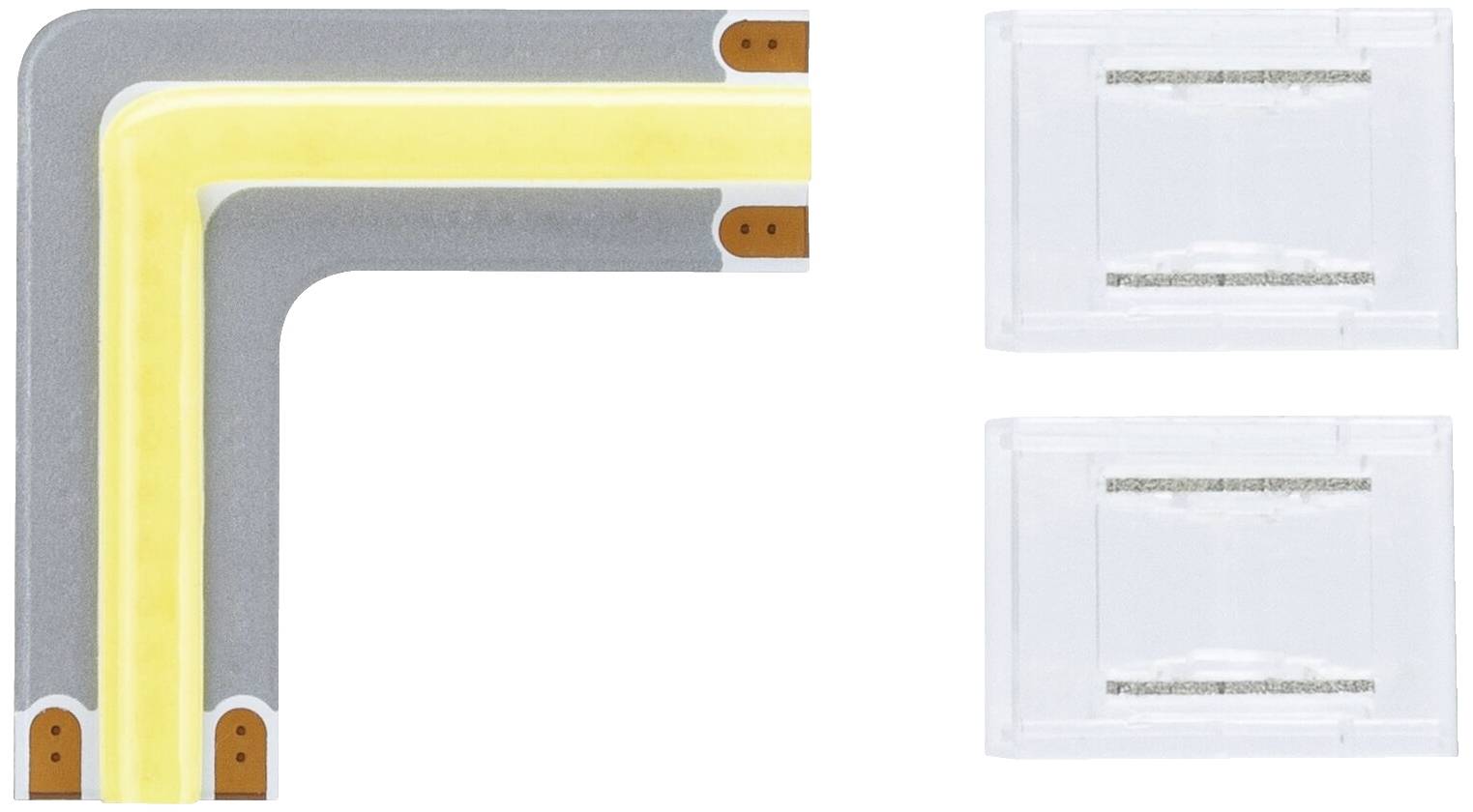

- Colour temperature 6500K – daylight whiteSimple connection system for easy installationIncl. 5-pin plug for easy connection of the strips
Scope of delivery
- MaxLED 1000 LED Strip Full Line COB Edge 0m 0.6W 2133lm/m 800LEDs/m 6500K
- User manual.
