Paulmann 78458 Connector Single Color Slim Feed 10mm Connecting cable 4 A 24 (max.) Cable length: 0.21 m 24 V (L x W x H
EAN:
Part number:
Item no:
Product type
Connecting cable
Operating voltage
24 V
Series
ProLED
Length
0.215 mm
Energy efficiency rating
n.rel.
Highlights & Details
ProStrip connector single color 0.2 m max. 96W black#red
- Feed for single-color strips (2-pin) with 10 mm width
- Open wire ends / cut and fasten strip
- max. Current 4A
Our service for you
Technical specifications
- Product type
Connecting cable
- Connection
Cut & Clip
- Number of pins
2
- Operating voltage
24 V
- Series
ProLED
- Factory colour
Black
Red
- Cable length
0.21 m
IP20
- Width
11.5 mm
- Height
5.5 mm
- Length
0.215 mm
- Dim
(L x W x H) 0.215 x 11.5 x 5.5 mm
- Output voltage (max.)
24 V
- Max. output current
4 A
- RoHS-compliant
Yes
n.rel.
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896361 Paulmann 78458 Connector Single Color Slim Feed 10mm Connecting cable 4 A 24 (max.) Cable length: 0.21 m 24 V (L x W x H
Warranty Terms
Warranty Terms 2896361 Paulmann 78458 Connector Single Color Slim Feed 10mm Connecting cable 4 A 24 (max.) Cable length: 0.21 m 24 V (L x W x H
Description

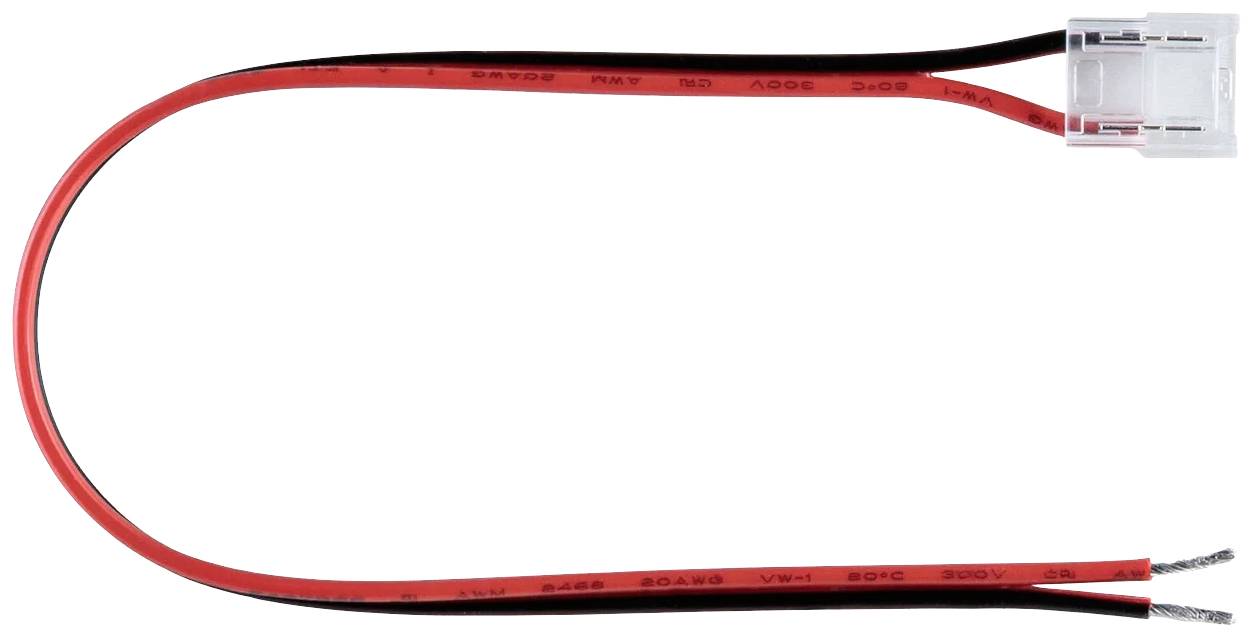

The feed Single Colour Slim is specially designed for professional single-colored 24 V Pro Strip Silver and Gold with a width of 10 mm and is especially suitable for narrow mounting spaces e.g. within a profile.
It allows strips to be connected with open power ends using cut and fasten technology.
With this feeder (FEED), e.g. shortened strips can be safely and easily electrified without connection cable.
The cable has a length of 20 cm.
This text is machine translated.
It allows strips to be connected with open power ends using cut and fasten technology.
With this feeder (FEED), e.g. shortened strips can be safely and easily electrified without connection cable.
The cable has a length of 20 cm.
This text is machine translated.
Features
- Slim ? Well suited for narrow installation spaces, e.g. within a profile
- Specially designed for professional 24 V Pro Strip Silver and Gold
- Suitable for COB & SMD-Strips
- No interruption of the light pattern due to the transparent casing
Scope of delivery
- Per connector single color 0.2m max. 96W black#red
- User manual.
