Paulmann 78461 Connector Single Color Slim Direct 8mm Connector 6 A 24 (max.) Cable length: 0.01 m 24 V (L x W x H) 0.01
EAN:
Part number:
Item no:
Product type
Connector
Operating voltage
24 V
Series
ProLED
Length
0.0135 mm
Energy efficiency rating
n.rel.
Highlights & Details
ProStrip connector single color 0m max. 144W black#red
- Direct connector for single-color strips (2-pin) with 8 mm width
- Double-sided cut and clamp technology
- max. Current rating 6A
Our service for you
Technical specifications
- Product type
Connector
- Connection
Cut & Clip
- Number of pins
2
- Operating voltage
24 V
- Operating current
6 A
- Series
ProLED
- Factory colour
Black
Red
- Cable length
0.01 m
IP20
- Width
10 mm
- Height
5 mm
- Length
0.0135 mm
- Dim
(L x W x H) 0.0135 x 10 x 5 mm
- Output voltage (max.)
24 V
- Max. output current
6 A
- RoHS-compliant
Yes
n.rel.
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896364 Paulmann 78461 Connector Single Color Slim Direct 8mm Connector 6 A 24 (max.) Cable length: 0.01 m 24 V (L x W x H) 0.01
Warranty Terms
Warranty Terms 2896364 Paulmann 78461 Connector Single Color Slim Direct 8mm Connector 6 A 24 (max.) Cable length: 0.01 m 24 V (L x W x H) 0.01
Description

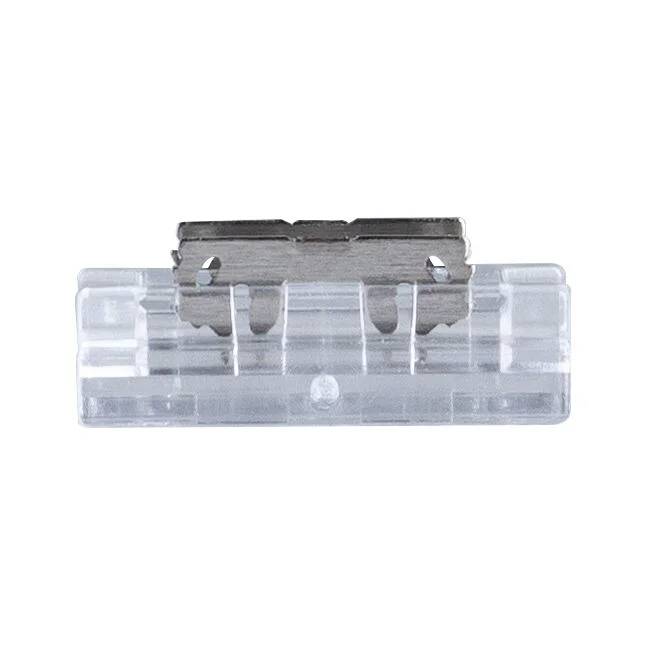

The Pro direct connector single color slim is specially developed for use with professional 24 V Pro Strip silver and gold with a width of 8 mm.
The connector is two-pin and enables direct connection via insulation displacement technology.
It is suitable for single-color strips and is characterized by its slim design, which is especially designed for narrow mounting spaces, such as within a profile.
Thanks to the direct connector, short sections can be connected directly to the strip without interrupting the picture.
This text is machine translated.
The connector is two-pin and enables direct connection via insulation displacement technology.
It is suitable for single-color strips and is characterized by its slim design, which is especially designed for narrow mounting spaces, such as within a profile.
Thanks to the direct connector, short sections can be connected directly to the strip without interrupting the picture.
This text is machine translated.
Features
- Slim ? Well suited for narrow installation spaces, e.g. within a profile
- Specially designed for professional 24 V Pro Strip Silver and Gold
- Suitable for COB & SMD-Strips
- No interruption of the light pattern due to the transparent casing
Scope of delivery
- Per connector single color 0m max. 144W black#red
- User manual.
