Paulmann 78465 Connector RGBW Slim Feed 12mm Connecting cable 6 A 24 (max.) Cable length: 0.21 m 24 V (L x W x H) 0.215
EAN:
Part number:
Item no:
Product type
Connecting cable
Operating voltage
24 V
Series
ProLED
Length
0.215 mm
Energy efficiency rating
n.rel.
Highlights & Details
ProStrip connector RGBW Slim 0.2 m max. 144W multi-colored
- Feed for strips with RGBW color changer function (5-pin)
- Open performance ends / insulation displacement technology
- max. Current rating 6A
Our service for you
Technical specifications
- Product type
Connecting cable
- Connection
Cut & Clip
- Number of pins
5
- Operating voltage
24 V
- Operating current
6 A
- Series
ProLED
- Cable length
0.21 m
- LED features
multicolour
IP20
- Width
14 mm
- Height
5.5 mm
- Length
0.215 mm
- Dim
(L x W x H) 0.215 x 14 x 5.5 mm
- Output voltage (max.)
24 V
- Max. output current
6 A
- RoHS-compliant
Yes
n.rel.
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896368 Paulmann 78465 Connector RGBW Slim Feed 12mm Connecting cable 6 A 24 (max.) Cable length: 0.21 m 24 V (L x W x H) 0.215
Warranty Terms
Warranty Terms 2896368 Paulmann 78465 Connector RGBW Slim Feed 12mm Connecting cable 6 A 24 (max.) Cable length: 0.21 m 24 V (L x W x H) 0.215
Description

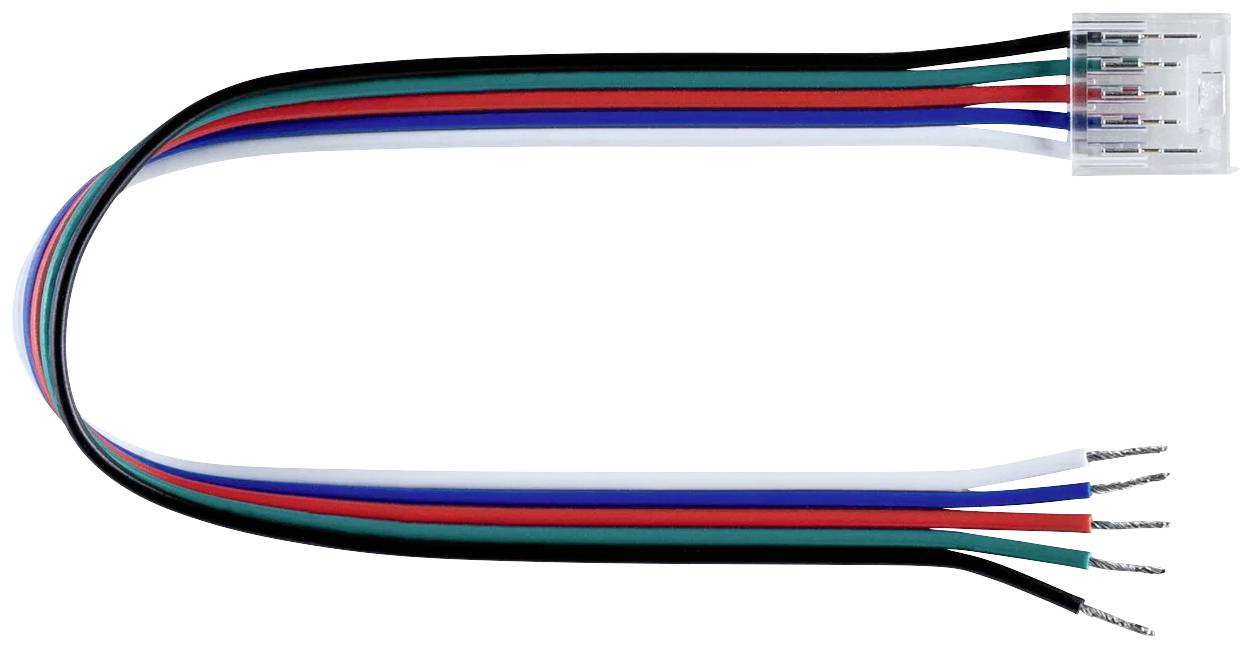

The feed RGBW Slim is specially designed for professional 24 V Pro Strip Silver and Gold with RGBW color change function and is particularly well suited for narrow mounting spaces, for example, within a profile.
It allows strips to be connected with open power ends using cut and fasten technology.
With this feeder (FEED), e.g. shortened strips can be safely and easily electrified without connection cable.
The cable has a length of 20 cm.
This text is machine translated.
It allows strips to be connected with open power ends using cut and fasten technology.
With this feeder (FEED), e.g. shortened strips can be safely and easily electrified without connection cable.
The cable has a length of 20 cm.
This text is machine translated.
Features
- Slim ? Well suited for narrow installation spaces, e.g. within a profile
- Specially designed for professional 24 V Pro Strip Silver and Gold
- No interruption of the light pattern due to the transparent casing
Scope of delivery
- Per connector RGBW slim 0.2 m max. 144W multi-colored
- User manual.
