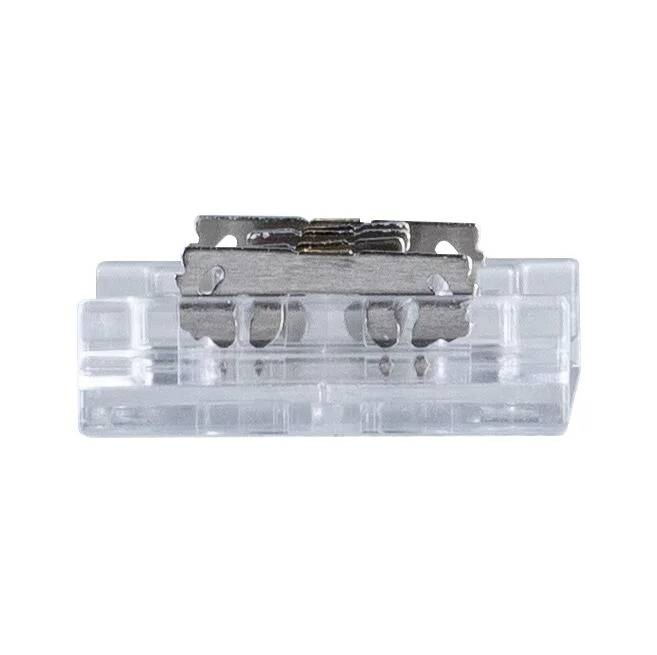

Paulmann 78467 Connector RGBW Slim Direct 12mm Connector 6 A Cable length: 0.01 m 24 V (L x W x H) 0.013 x 14 x 5 mm 1 p
EAN:
Part number:
Item no:
Product type
Connector
Operating voltage
24 V
Series
ProLED
Length
0.013 mm
Energy efficiency rating
n.rel.
Highlights & Details
ProStrip connector RGBW Slim 0m max. 144W multi-colored
- Direct connector for strips with RGBW color changer function (5-pin)
- Double-sided cut and clamp technology
- max. Current rating 6A
Our service for you
Technical specifications
- Product type
Connector
- Connection
Cut & Clip
- Number of pins
2
- Operating voltage
24 V
- Operating current
6 A
- Series
ProLED
- Cable length
0.01 m
IP20
- Width
14 mm
- Height
5 mm
- Length
0.013 mm
- Depth
5 mm
- Dim
(L x W x H) 0.013 x 14 x 5 mm
- Max. output current
6 A
- RoHS-compliant
Yes
n.rel.
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896370 Paulmann 78467 Connector RGBW Slim Direct 12mm Connector 6 A Cable length: 0.01 m 24 V (L x W x H) 0.013 x 14 x 5 mm 1 p
Warranty Terms
Warranty Terms 2896370 Paulmann 78467 Connector RGBW Slim Direct 12mm Connector 6 A Cable length: 0.01 m 24 V (L x W x H) 0.013 x 14 x 5 mm 1 p
Description
The Pro direct connector RGBW Slim is specially developed for use with professional 24 V Pro Strip Silver and Gold with RGBW color changing function.
The connector is two-pin and enables direct connection via insulation displacement technology.
It is characterized by its slim design, which is especially designed for narrow mounting spaces, such as within a profile.
With the direct connector, shortened sections can be connected directly to the strip without interrupting the photo view.
This text is machine translated.
The connector is two-pin and enables direct connection via insulation displacement technology.
It is characterized by its slim design, which is especially designed for narrow mounting spaces, such as within a profile.
With the direct connector, shortened sections can be connected directly to the strip without interrupting the photo view.
This text is machine translated.
Features
- Slim ? Well suited for narrow installation spaces, e.g. within a profile
- Specially designed for professional 24 V Pro Strip Silver and Gold
- No interruption of the light pattern due to the transparent casing
Scope of delivery
- Per connector RGBW Slim 0m max. 144W multi-colored
- User manual.
