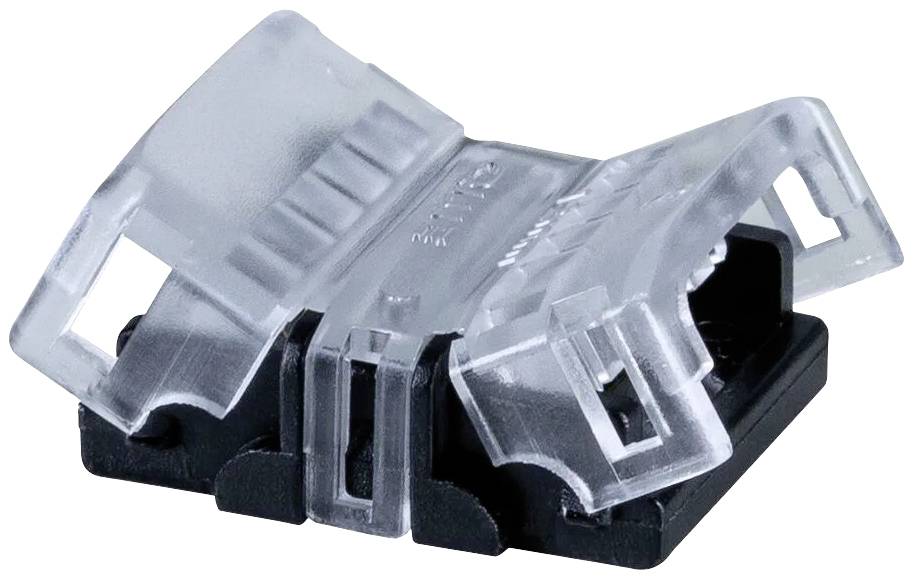

Paulmann 78469 Connector RGBW Quick Direct 12mm Connector 5 A 24 Cable length: 0.02 m 24 V (L x W x H) 0.02 x 17 x 8 mm
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Connector
Operating voltage
24 V
Series
ProLED
Length
0.02 mm
Highlights & Details
ProStrip connector RGBW Quick 0m max. 120 W multi-colored
- Specially designed for professional 24 V Pro Strip Silver and Gold
- Quick mounting with insulation displacement technology
- Direct connector for strips with RGBW color changer function (5-pin)
Our service for you
Technical specifications
- Packaging type
Piece
- Product type
Connector
- Connection
Cut & Clip
- Number of pins
5
- Operating voltage
24 V
- Operating current
5 A
- Series
ProLED
- Cable length
0.02 m
- LED features
multicolour
IP20
- Width
17 mm
- Height
8 mm
- Length
0.02 mm
- Dim
(L x W x H) 0.02 x 17 x 8 mm
- Output voltage (min.)
24 V
- Output voltage (max.)
24 V
- Max. output current
5 A
- RoHS-compliant
Yes
n.rel.
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896372 Paulmann 78469 Connector RGBW Quick Direct 12mm Connector 5 A 24 Cable length: 0.02 m 24 V (L x W x H) 0.02 x 17 x 8 mm
Warranty Terms
Warranty Terms 2896372 Paulmann 78469 Connector RGBW Quick Direct 12mm Connector 5 A 24 Cable length: 0.02 m 24 V (L x W x H) 0.02 x 17 x 8 mm
Description
The Pro direct connector RGBW Quick is specially designed for professional 24 V Pro Strip Silver and Gold with RGBW color change function.
The connector is five-pin and enables a direct connection via cut-grip technology.
Thanks to the direct connector, short sections can be connected directly to the strip without interrupting the picture.
This text is machine translated.
The connector is five-pin and enables a direct connection via cut-grip technology.
Thanks to the direct connector, short sections can be connected directly to the strip without interrupting the picture.
This text is machine translated.
Features
- max. Current strength 5A
Scope of delivery
- Per connector RGBW quick 0m max. 120 W multi-colored
- User manual.
