Paulmann 78471 Funk Controller RGBW Controller 24 (max.) 24 V (L x W x H) 175 x 45 x 27 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Controller
Operating voltage
24 V
Series
ProLED
Length
175 mm
Energy efficiency rating
n.rel.
Highlights & Details

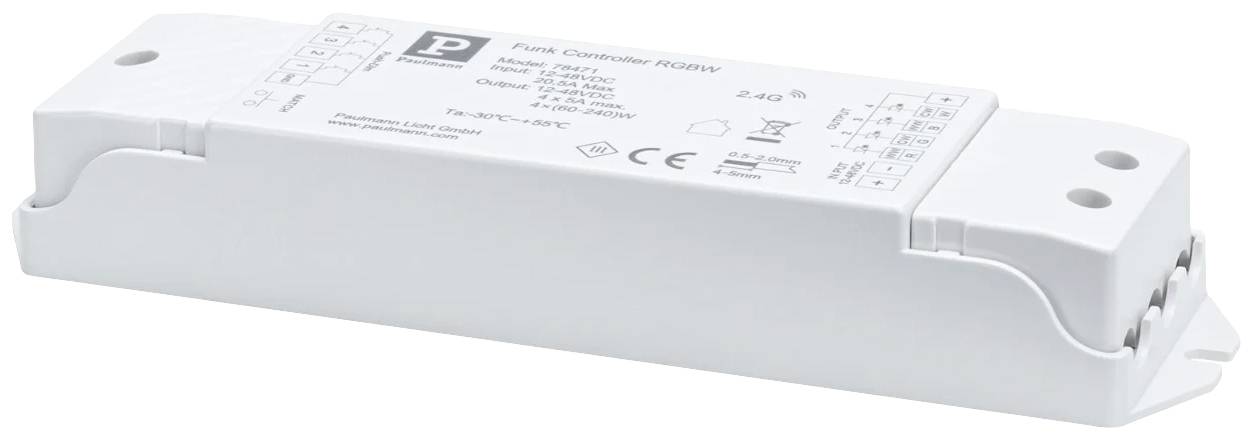

ProStrip controller RGBW DC 24V white
- Single or multi-zone control
- Quick Connect via match key - super fast connection of controller & remote
- Automatic transmission: Mesh-network interior approx. 15m
Technical specifications
- Product type
Controller
- Operating voltage
24 V
- Series
ProLED
- Factory colour
White
- LED features
multicolour
IP20
- Width
45 mm
- Height
27 mm
- Length
175 mm
- Depth
175 mm
- Dim
(L x W x H) 175 x 45 x 27 mm
- Output voltage (max.)
24 V
n.rel.
- Protection class
III
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896374 Paulmann 78471 Funk Controller RGBW Controller 24 (max.) 24 V (L x W x H) 175 x 45 x 27 mm 1 pc(s)
Warranty Terms
Warranty Terms 2896374 Paulmann 78471 Funk Controller RGBW Controller 24 (max.) 24 V (L x W x H) 175 x 45 x 27 mm 1 pc(s)
Description
Especially suitable for professional 24 V Pro Strips with RGBW color change.
The controller enables single or multi-zone control, with which individual light zones can be controlled separately or synchronized.
The controller and remote control are quickly connected thanks to the Quick-Connect function.
Automatic setup of a mesh network when the controller is placed within a radius of approx. 15m.
This text is machine translated.
The controller enables single or multi-zone control, with which individual light zones can be controlled separately or synchronized.
The controller and remote control are quickly connected thanks to the Quick-Connect function.
Automatic setup of a mesh network when the controller is placed within a radius of approx. 15m.
This text is machine translated.
Features
- Precision dimming from 5 to 100% dimming range
- Push-DIMM: Wall switch connection possible - simple control without remote control
- Multi-Protection: Overload protection, overheating protection, short-circuit protection
Scope of delivery
- Per controller RGBW DC 24V white
- User manual.
