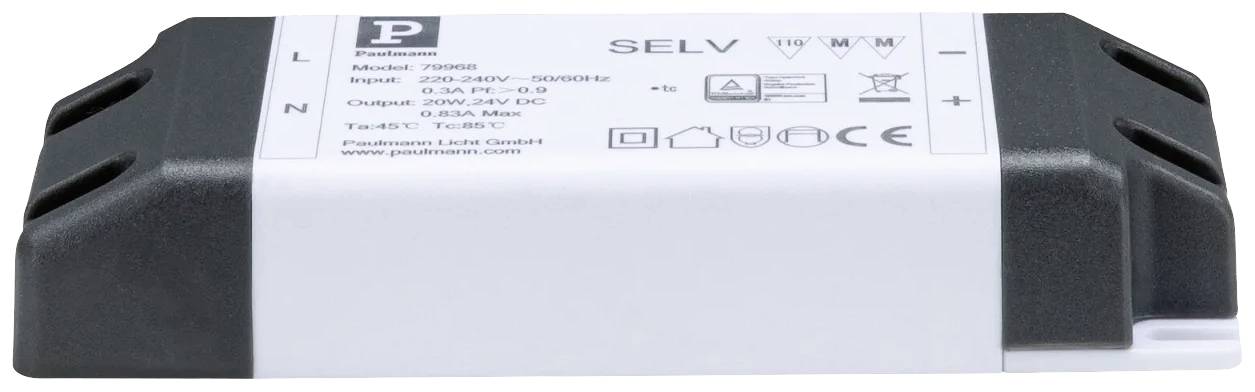

Paulmann 79968 Power Supply 24V DC 20VA IP20 Constant voltage LED driver 20 W (max) 830 mA 24 230 V (W x H x D) 42 x 20
EAN:
Part number:
Item no:
Product type
Constant voltage LED driver
Operating voltage
230 V
Series
ProLED
Energy efficiency rating
n.rel.
Min. operating voltage
220 V
Highlights & Details
Prostrip Power supply accessories 230/24V 20VA white
- Perfectly suited to Paulmann Pro strips and controllers
- High-quality Power supplies with a very long life of at least 50,000 h.
- Integrated overload protection, short-circuit protection, temperature monitor and electronic fuse
Technical specifications
- Product type
Constant voltage LED driver
- Operating voltage
230 V
- Min. operating voltage
220 V
- Operating voltage
220 - 240 V
- Max. operating voltage
240 V
- Operating current
830 mA
- Series
ProLED
- Max. power
20 W
20 W
- Factory colour
White
- LED features
dimmable
IP20
- Width
42 mm
- Height
20 mm
- Depth
120 mm
- Dim
(W x H x D) 42 x 20 x 120 mm
- Output voltage (min.)
24 V
- Output voltage (max.)
24 V
- Max. output current
830 mA
- RoHS-compliant
Yes
n.rel.
- Durability rating
50000 h
- Protection class
II
- UKCA
yes
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896377 Paulmann 79968 Power Supply 24V DC 20VA IP20 Constant voltage LED driver 20 W (max) 830 mA 24 230 V (W x H x D) 42 x 20
Warranty Terms
Warranty Terms 2896377 Paulmann 79968 Power Supply 24V DC 20VA IP20 Constant voltage LED driver 20 W (max) 830 mA 24 230 V (W x H x D) 42 x 20
Description
This high-quality and powerful Power supply for professional 24 V pro strip silver and gold offers a very long life of at least 50,000 hours.
Compact in dimensions it is suitable for systems up to max. 20W.
An integrated overload protection, short-circuit protection, temperature monitor and an electronic fuse ensure a safe and reliable power supply.
The Power supply is TÜV-Rheinland tested.
In addition, the Power supply in all the dimming levels is noise-free.
The Pro Strips silver and gold system is ideal for professional use in commercial and private areas.
This text is machine translated.
Compact in dimensions it is suitable for systems up to max. 20W.
An integrated overload protection, short-circuit protection, temperature monitor and an electronic fuse ensure a safe and reliable power supply.
The Power supply is TÜV-Rheinland tested.
In addition, the Power supply in all the dimming levels is noise-free.
The Pro Strips silver and gold system is ideal for professional use in commercial and private areas.
This text is machine translated.
Features
- All dimmer settings are noise-free
Scope of delivery
- Pro Power supply accessory 230/24V 20VA white
- User manual.
