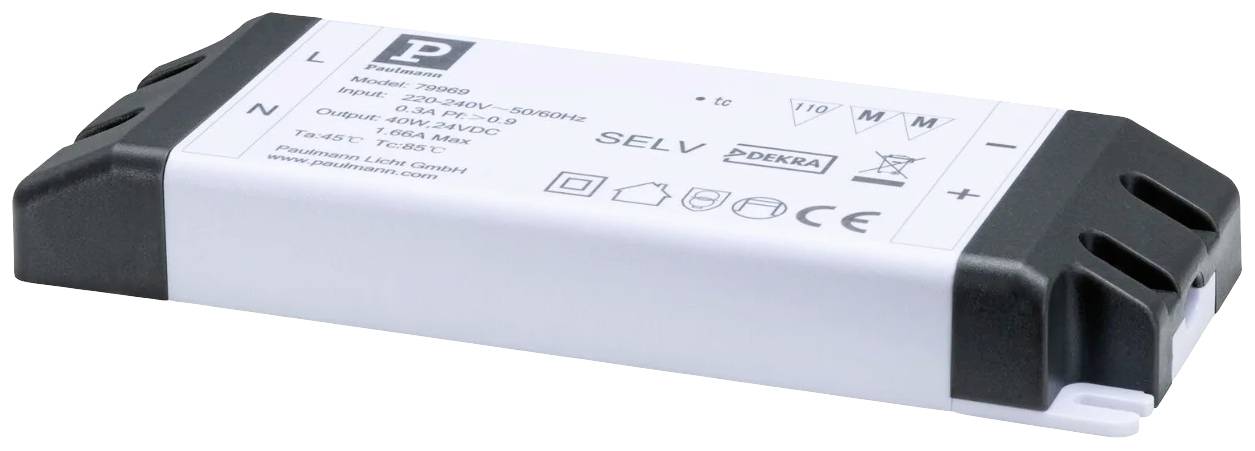

Paulmann 79969 Power Supply 24V DC 40VA IP20 Constant voltage LED driver 40 W (max) 1.66 A 24 230 V (W x H x D) 58 x 20
EAN:
Part number:
Item no:
Product type
Constant voltage LED driver
Operating voltage
230 V
Series
ProLED
Energy efficiency rating
n.rel.
Min. operating voltage
220 V
Highlights & Details
Prostrip Power supply accessories 230/24V 40VA white
- Perfectly suited to Paulmann Pro strips and controllers
- High-quality Power supplies with a very long life of at least 50,000 h.
- Integrated overload protection, short-circuit protection, temperature monitor and electronic fuse
Technical specifications
- Product type
Constant voltage LED driver
- Operating voltage
230 V
- Min. operating voltage
220 V
- Operating voltage
220 - 240 V
- Max. operating voltage
240 V
- Operating current
1.66 A
- Series
ProLED
- Max. power
40 W
40 W
- Factory colour
White
IP20
- Width
58 mm
- Height
20 mm
- Depth
160 mm
- Dim
(W x H x D) 58 x 20 x 160 mm
- Output voltage (min.)
24 V
- Output voltage (max.)
24 V
- Max. output current
1.66 A
- RoHS-compliant
Yes
n.rel.
- Protection class
II
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896378 Paulmann 79969 Power Supply 24V DC 40VA IP20 Constant voltage LED driver 40 W (max) 1.66 A 24 230 V (W x H x D) 58 x 20
Warranty Terms
Warranty Terms 2896378 Paulmann 79969 Power Supply 24V DC 40VA IP20 Constant voltage LED driver 40 W (max) 1.66 A 24 230 V (W x H x D) 58 x 20
Description
This high-quality and powerful Power supply for professional 24 V pro strip silver and gold offers a very long life of at least 50,000 hours.
Compact in dimensions it is suitable for systems up to max. 40W.
An integrated overload protection, short-circuit protection, temperature monitor and an electronic fuse ensure a safe and reliable power supply.
The Power supply is dekra certified.
In addition, the Power supply in all the dimming levels is noise-free.
The Pro Strips silver and gold system is ideal for professional use in commercial and private areas.
This text is machine translated.
Compact in dimensions it is suitable for systems up to max. 40W.
An integrated overload protection, short-circuit protection, temperature monitor and an electronic fuse ensure a safe and reliable power supply.
The Power supply is dekra certified.
In addition, the Power supply in all the dimming levels is noise-free.
The Pro Strips silver and gold system is ideal for professional use in commercial and private areas.
This text is machine translated.
Features
- All dimmer settings are noise-free
Scope of delivery
- Pro Power supply accessory 230/24V 40VA white
- User manual.
