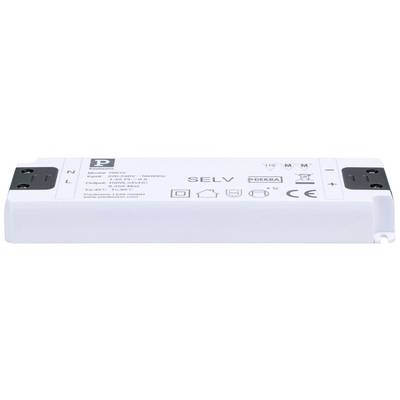

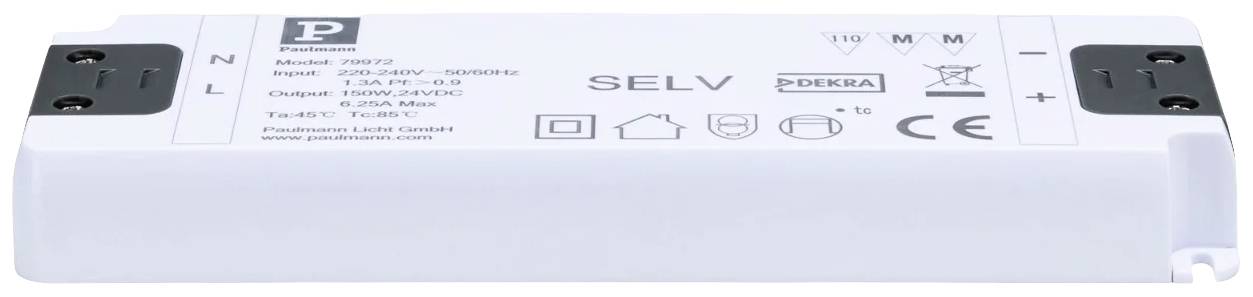

Paulmann 79972 Power Supply Flat 24V DC 150VA IP20 Constant voltage LED driver 150 W (max) 6.25 A 24 230 V (W x H x D) 5
EAN:
Part number:
Item no:
Product type
Constant voltage LED driver
Operating voltage
230 V
Series
ProLED
Energy efficiency rating
n.rel.
Min. operating voltage
220 V
Highlights & Details
Prostrip Power supply accessories 230/24V 150VA white
- Perfectly suited to Paulmann Pro strips and controllers
- High-quality Power supplies with a very long life of at least 50,000 h.
- Flat version with especially small housing dimensions
Technical specifications
- Product type
Constant voltage LED driver
- Operating voltage
230 V
- Min. operating voltage
220 V
- Operating voltage
220 - 240 V
- Max. operating voltage
240 V
- Operating current
6.25 A
- Series
ProLED
- Max. power
150 W
150 W
- Factory colour
White
- LED features
dimmable
IP20
- Width
58 mm
- Height
20 mm
- Depth
179 mm
- Dim
(W x H x D) 58 x 20 x 179 mm
- Output voltage (min.)
24 V
- Output voltage (max.)
24 V
- Max. output current
6.25 A
- RoHS-compliant
Yes
n.rel.
- Protection class
II
- UKCA
not relevant
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2896382 Paulmann 79972 Power Supply Flat 24V DC 150VA IP20 Constant voltage LED driver 150 W (max) 6.25 A 24 230 V (W x H x D) 5
Warranty Terms
Warranty Terms 2896382 Paulmann 79972 Power Supply Flat 24V DC 150VA IP20 Constant voltage LED driver 150 W (max) 6.25 A 24 230 V (W x H x D) 5
Description
This high-quality and powerful Power supply flat for professional 24 V pro strip silver and gold offers a very long life of at least 50,000 hours.
The flat versions are designed with focus on a very small housing dimension and are suitable for systems up to max. 150W.
An integrated overload protection, short-circuit protection, temperature monitor and an electronic fuse ensure a safe and reliable power supply.
The Power supply is dekra certified.
In addition, the Power supply in all the dimming levels is noise-free.
The Pro Strips silver and gold system is ideal for professional use in commercial and private areas.
This text is machine translated.
The flat versions are designed with focus on a very small housing dimension and are suitable for systems up to max. 150W.
An integrated overload protection, short-circuit protection, temperature monitor and an electronic fuse ensure a safe and reliable power supply.
The Power supply is dekra certified.
In addition, the Power supply in all the dimming levels is noise-free.
The Pro Strips silver and gold system is ideal for professional use in commercial and private areas.
This text is machine translated.
Features
- Integrated overload protection, short-circuit protection, temperature monitor and electronic fuse
- All dimmer settings are noise-free
Scope of delivery
- Pro Power supply accessory 230/24V 150VA white
- User manual.
